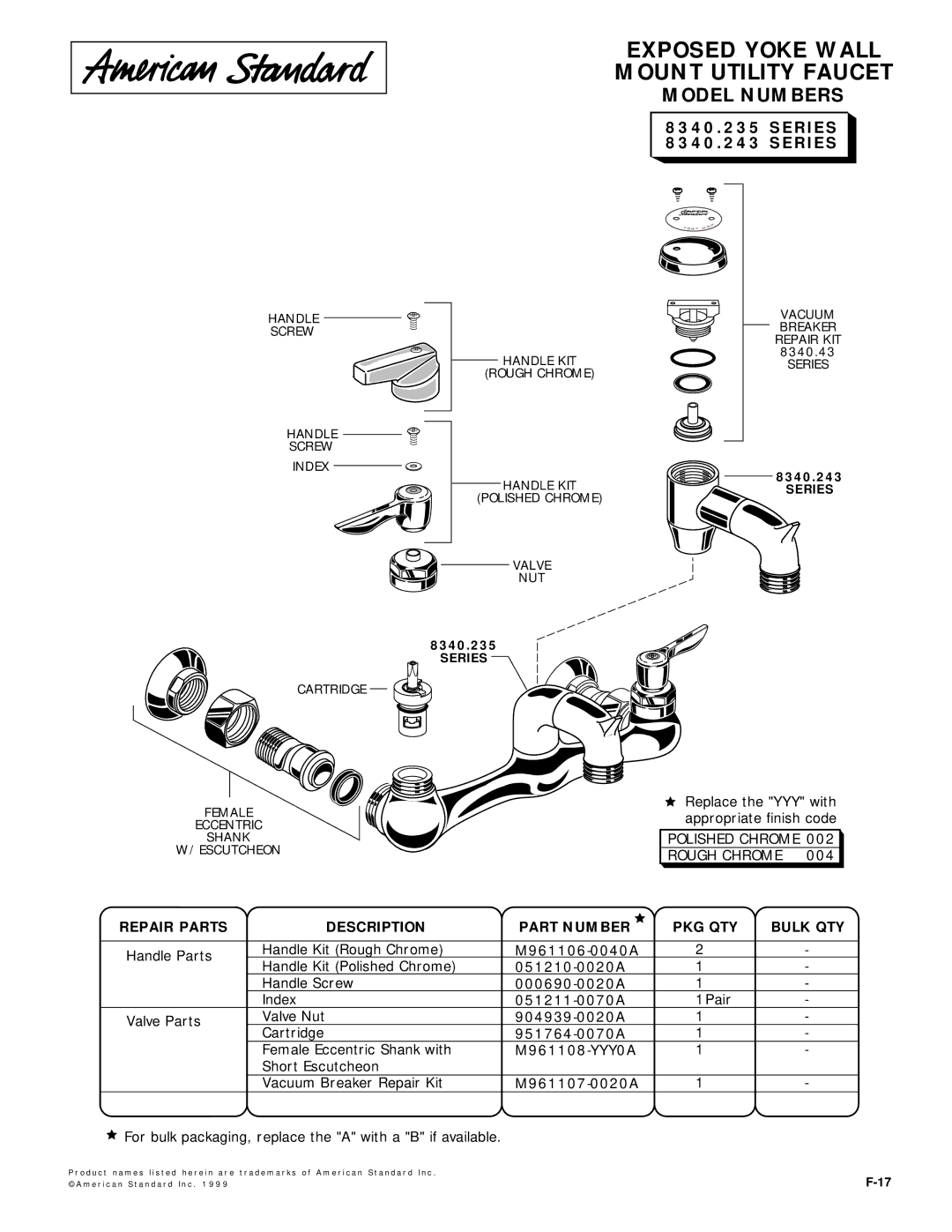

EXPOSED YOKE WALL MOUNT UTILITY FAUCET
MODEL NUMBERS
8340.235 SERIES
8340.243 SERIES
HANDLE
SCREW
HANDLE
SCREW
7 | 8 | 3 |
| . 0 | 3 | 2 |
7 |
|
HANDLE KIT
(ROUGH CHROME)
VACUUM BREAKER REPAIR KIT 8340.43 SERIES
INDEX
8340.243
HANDLE KITSERIES (POLISHED CHROME)
VALVE
NUT
8340.235
SERIES
CARTRIDGE
FEMALE
ECCENTRIC
SHANK
W/ESCUTCHEON
Replace the "YYY" with appropriate finish code
POLISHED CHROME 002
ROUGH CHROME 004
REPAIR PARTS | DESCRIPTION | PART NUMBER | PKG QTY | BULK QTY | |
Handle Parts | Handle Kit (Rough Chrome) | 2 | - | ||
Handle Kit (Polished Chrome) | 1 | - | |||
| |||||
| Handle Screw | 1 | - | ||
| Index | 1Pair | - | ||
Valve Parts | Valve Nut | 1 | - | ||
Cartridge | 1 | - | |||
| |||||
| Female Eccentric Shank with | 1 | - | ||
| Short Escutcheon |
|
|
| |
| Vacuum Breaker Repair Kit | 1 | - | ||
|
|
|
|
|
For bulk packaging, replace the "A" with a "B" if available.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c . | |
© A m e r i c a n S t a n d a r d I n c . 1 9 9 9 |
