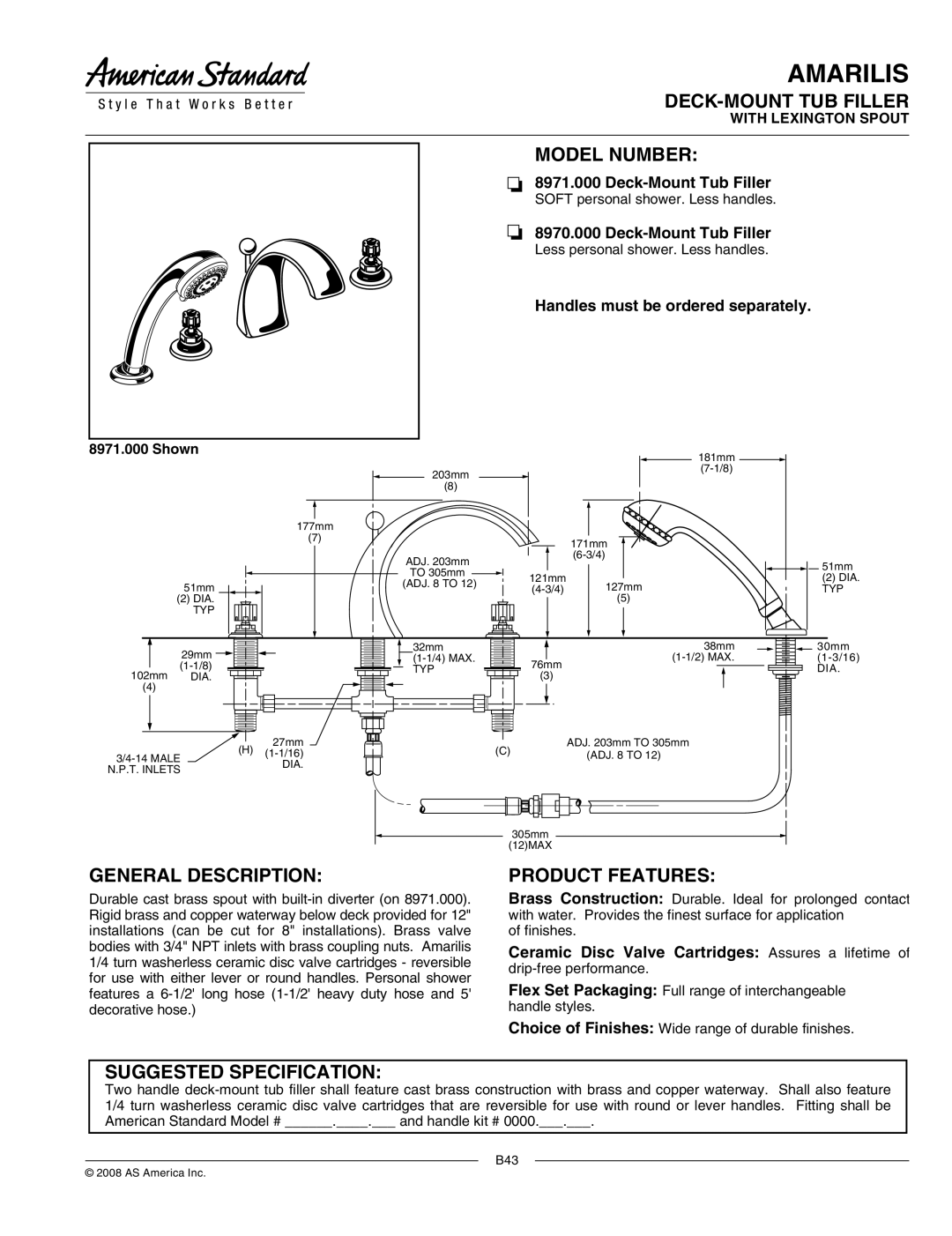

AMARILIS

DECK-MOUNT TUB FILLER

WITH LEXINGTON SPOUT

MODEL NUMBER:

8971.000 Deck-Mount Tub Filler

SOFT personal shower. Less handles.

8970.000 Deck-Mount Tub Filler

Less personal shower. Less handles.

Handles must be ordered separately.

8971.000 Shown







181mm





















203mm



(7-1/8)





















(8)













177mm













(7)



171mm





















ADJ. 203mm



(6-3/4)

51mm

















TO 305mm











121mm



(2) DIA.



51mm



(ADJ. 8 TO 12)

127mm





(4-3/4)

TYP









(2) DIA.







(5)





TYP













29mm



32mm



38mm

30mm





(1-1/4) MAX.

76mm

(1-1/2) MAX.

(1-3/16)



(1-1/8)



TYP



DIA.

102mm

DIA.



(3)











(4)

















(H)

27mm

(C)

ADJ. 203mm TO 305mm



3/4-14 MALE

(1-1/16)

(ADJ. 8 TO 12)





DIA.







N.P.T. INLETS



























305mm













(12)MAX





GENERAL DESCRIPTION:

Durable cast brass spout with built-in diverter (on 8971.000). Rigid brass and copper waterway below deck provided for 12" installations (can be cut for 8" installations). Brass valve bodies with 3/4" NPT inlets with brass coupling nuts. Amarilis 1/4 turn washerless ceramic disc valve cartridges - reversible for use with either lever or round handles. Personal shower features a 6-1/2' long hose (1-1/2' heavy duty hose and 5' decorative hose.)

PRODUCT FEATURES:

Brass Construction: Durable. Ideal for prolonged contact with water. Provides the finest surface for application

of finishes.

Ceramic Disc Valve Cartridges: Assures a lifetime of drip-free performance.

Flex Set Packaging: Full range of interchangeable handle styles.

Choice of Finishes: Wide range of durable finishes.

SUGGESTED SPECIFICATION:

Two handle deck-mount tub filler shall feature cast brass construction with brass and copper waterway. Shall also feature 1/4 turn washerless ceramic disc valve cartridges that are reversible for use with round or lever handles. Fitting shall be American Standard Model # ______.____.___ and handle kit # 0000.___.___.

B43

© 2008 AS America Inc.

Page 1
Image 1
American Standard 8971.000, 8970.000 manual DECK-MOUNT TUB Filler, Model Number, General Description, Product Features

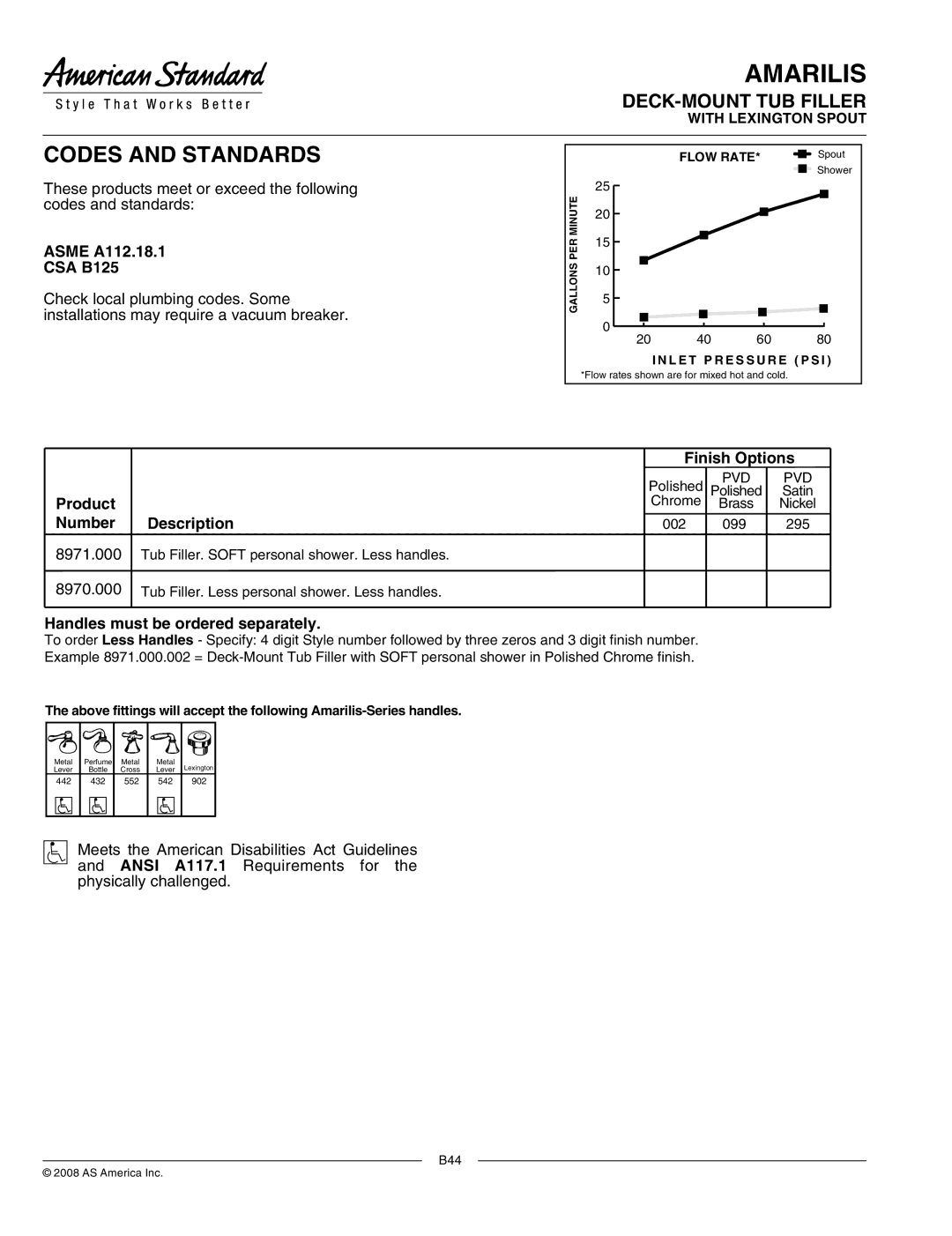

8971.000, 8970.000 specifications
