American Standard R115SS, R117SS, R110SS manual R110 Pressure Balance Rough Valve Body only

61(3"%"#-&

13&4463&
#"-"/$&
#"5)4)08&3
'*55*/(

5&.1&3"563&
$0/530-
7"-7&

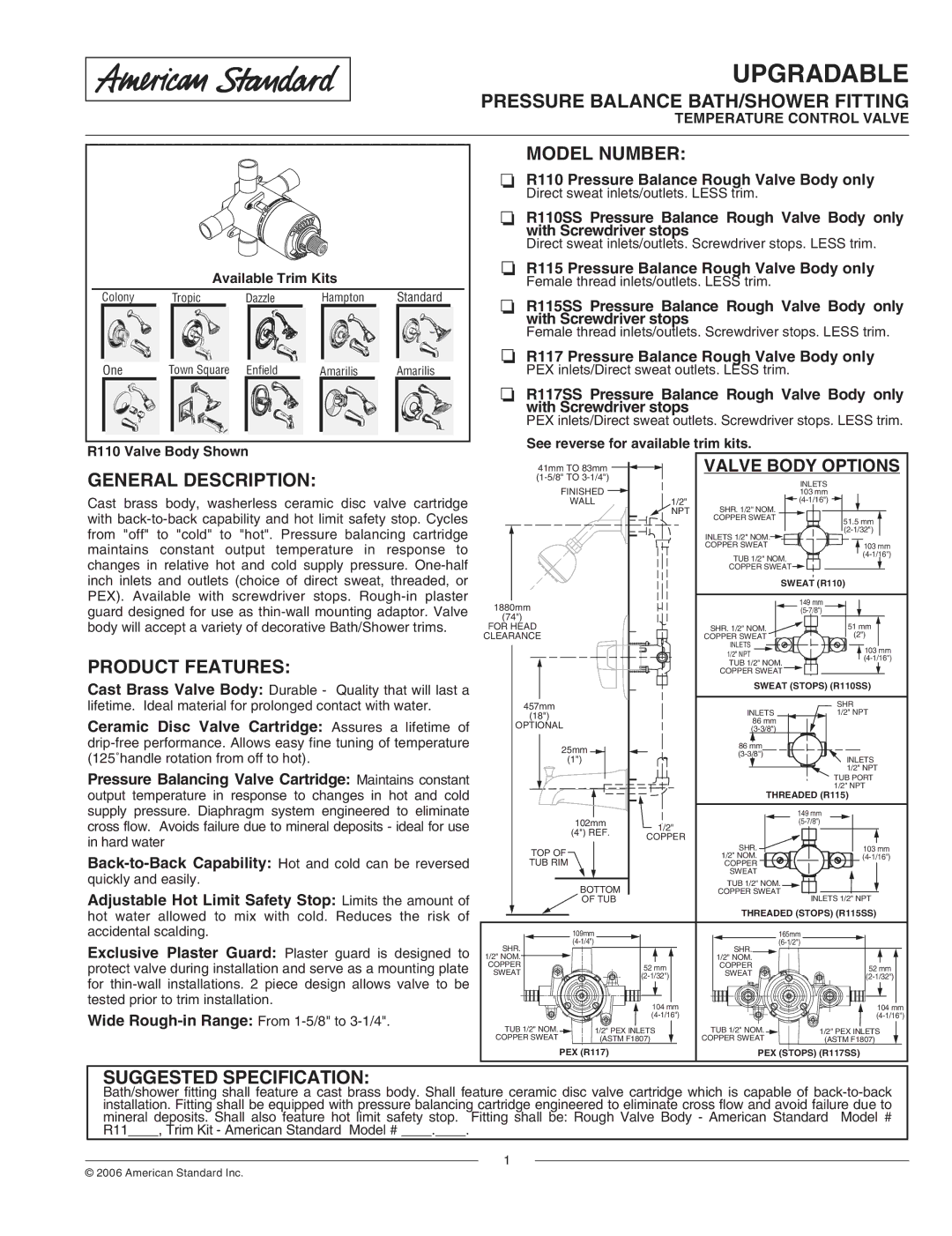

	MODEL NUMBER:
	R110 Pressure Balance Rough Valve Body only
	Direct sweat inlets/outlets. LESS trim.
	R110SS Pressure Balance Rough Valve Body only
	with Screwdriver stops
	Direct sweat inlets/outlets. Screwdriver stops. LESS trim.
Available Trim Kits	R115 Pressure Balance Rough Valve Body only
	Female thread inlets/outlets. LESS trim.

Colony	Tropic		Dazzle	Hampton	Standard	R115SS Pressure Balance Rough Valve Body only
						with Screwdriver stops
				ff O		Female thread inlets/outlets. Screwdriver stops. LESS trim.
				tHo
				ldCo
						R117 Pressure Balance Rough Valve Body only
One	Town Square		Enfield	Amarilis	Amarilis	PEX inlets/Direct sweat outlets. LESS trim.
						R117SS Pressure Balance Rough Valve Body only
						with Screwdriver stops
						PEX inlets/Direct sweat outlets. Screwdriver stops. LESS trim.
R110 Valve Body Shown						See reverse for available trim kits.
									VALVE BODY OPTIONS
GENERAL DESCRIPTION:						41mm TO 83mm
						(1-5/8" TO 3-1/4")				INLETS
							FINISHED			103 mm
Cast brass body, washerless ceramic disc valve cartridge							WALL	1/2"		(4-1/16")
									SHR. 1/2" NOM.
with back-to-back capability and hot limit safety stop. Cycles								NPT
									COPPER SWEAT	51.5 mm
from "off"	to "cold"	to	"hot". Pressure balancing cartridge						INLETS 1/2" NOM.	(2-1/32")
maintains	constant	output temperature in			response to				COPPER SWEAT	103 mm
									TUB 1/2" NOM.	(4-1/16")
changes in relative hot and cold supply pressure. One-half
									COPPER SWEAT
inch inlets and outlets (choice of direct sweat, threaded, or									SWEAT (R110)
PEX). Available with			screwdriver	stops. Rough-in plaster		1880mm				149 mm
guard designed for use as thin-wall mounting adaptor. Valve										(5-7/8")
						(74")
body will accept a variety of decorative Bath/Shower trims.						FOR HEAD			SHR. 1/2" NOM.	51 mm
						CLEARANCE			COPPER SWEAT	(2")
									INLETS	103 mm
									1/2" NPT
PRODUCT FEATURES:										(4-1/16")
									TUB 1/2" NOM.
									COPPER SWEAT
Cast Brass Valve Body: Durable - Quality that will last a									SWEAT (STOPS) (R110SS)
						457mm
lifetime. Ideal material for prolonged contact with water.										SHR
						(18")			INLETS	1/2" NPT
Ceramic Disc Valve Cartridge: Assures a lifetime of									86 mm
						OPTIONAL
									(3-3/8")
drip-free performance. Allows easy fine tuning of temperature							25mm		86 mm
(125˚handle rotation from off to hot).									(3-3/8")
							(1")			INLETS
Pressure Balancing Valve Cartridge: Maintains constant										1/2" NPT
										1/2" NPT
										TUB PORT
output temperature in response to changes in hot and cold									THREADED (R115)
supply pressure. Diaphragm system engineered to eliminate										149 mm
cross flow. Avoids failure due to mineral deposits - ideal for use							102mm	1/2"		(5-7/8")
							(4") REF.
in hard water								COPPER
						TOP OF			SHR.	103 mm
Back-to-Back Capability: Hot and cold can be reversed									1/2" NOM.	(4-1/16")
						TUB RIM			COPPER
quickly and easily.									SWEAT
							BOTTOM		TUB 1/2" NOM.
Adjustable Hot Limit Safety Stop: Limits the amount of									COPPER SWEAT
							OF TUB			INLETS 1/2" NPT
hot water allowed to mix with cold. Reduces the risk of									THREADED (STOPS) (R115SS)
accidental scalding.							109mm		165mm
Exclusive Plaster Guard: Plaster guard is designed to						SHR.	(4-1/4")		(6-1/2")
									SHR.
						1/2" NOM.			1/2" NOM.
protect valve during installation and serve as a mounting plate						COPPER		52 mm	COPPER	52 mm
						SWEAT			SWEAT
for thin-wall installations. 2 piece design allows valve to be								(2-1/32")		(2-1/32")
tested prior to trim installation.								104 mm		104 mm
Wide Rough-in Range: From 1-5/8" to 3-1/4".								(4-1/16")		(4-1/16")
						TUB 1/2" NOM.	1/2" PEX INLETS		TUB 1/2" NOM.	1/2" PEX INLETS
						COPPER SWEAT	(ASTM F1807)		COPPER SWEAT	(ASTM F1807)
							PEX (R117)		PEX (STOPS) (R117SS)

SUGGESTED SPECIFICATION:

Bath/shower fitting shall feature a cast brass body. Shall feature ceramic disc valve cartridge which is capable of back-to-back installation. Fitting shall be equipped with pressure balancing cartridge engineered to eliminate cross flow and avoid failure due to mineral deposits. Shall also feature hot limit safety stop. Fitting shall be: Rough Valve Body - American Standard Model # R11____, Trim Kit - American Standard Model # ____.____.



¥
