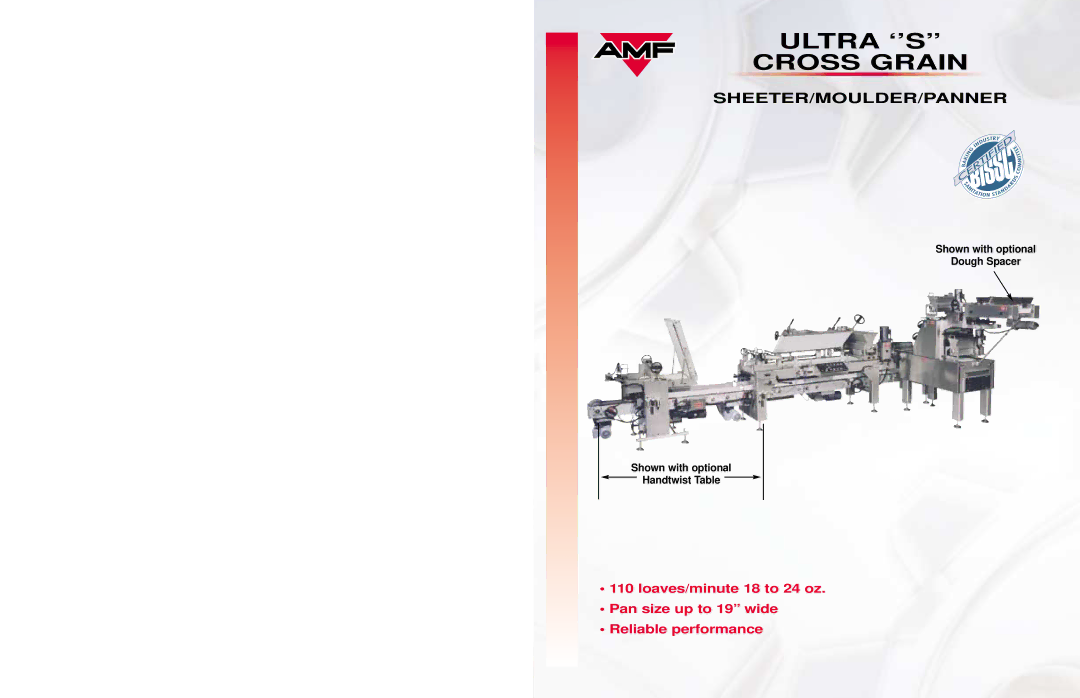

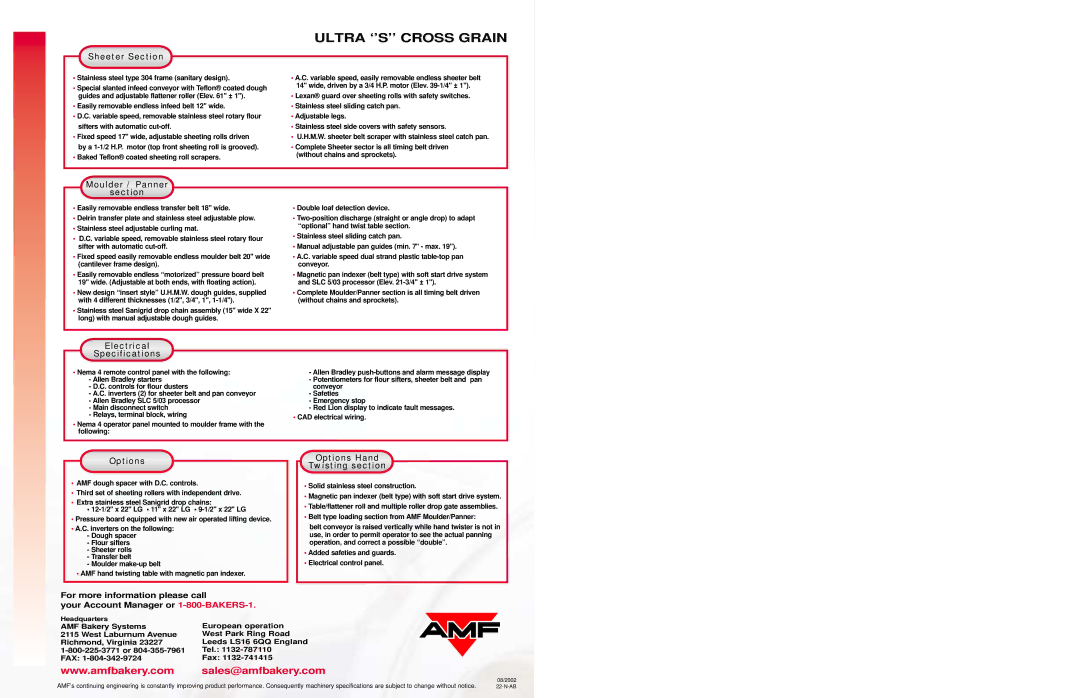

ULTRA ‘’S’’ CROSS GRAIN

Sheeter Section

Stainless steel type 304 frame (sanitary design).

Special slanted infeed conveyor with Teflon® coated dough guides and adjustable flattener roller (Elev. 61'' ± 1'').

Easily removable endless infeed belt 12'' wide.

D.C. variable speed, removable stainless steel rotary flour sifters with automatic cut-off.

Fixed speed 17'' wide, adjustable sheeting rolls driven by a 1-1/2 H.P. motor (top front sheeting roll is grooved).

Baked Teflon® coated sheeting roll scrapers.

A.C. variable speed, easily removable endless sheeter belt 14'' wide, driven by a 3/4 H.P. motor (Elev. 39-1/4'' ± 1'').

Lexan® guard over sheeting rolls with safety switches.

Stainless steel sliding catch pan.

Adjustable legs.

Stainless steel side covers with safety sensors.

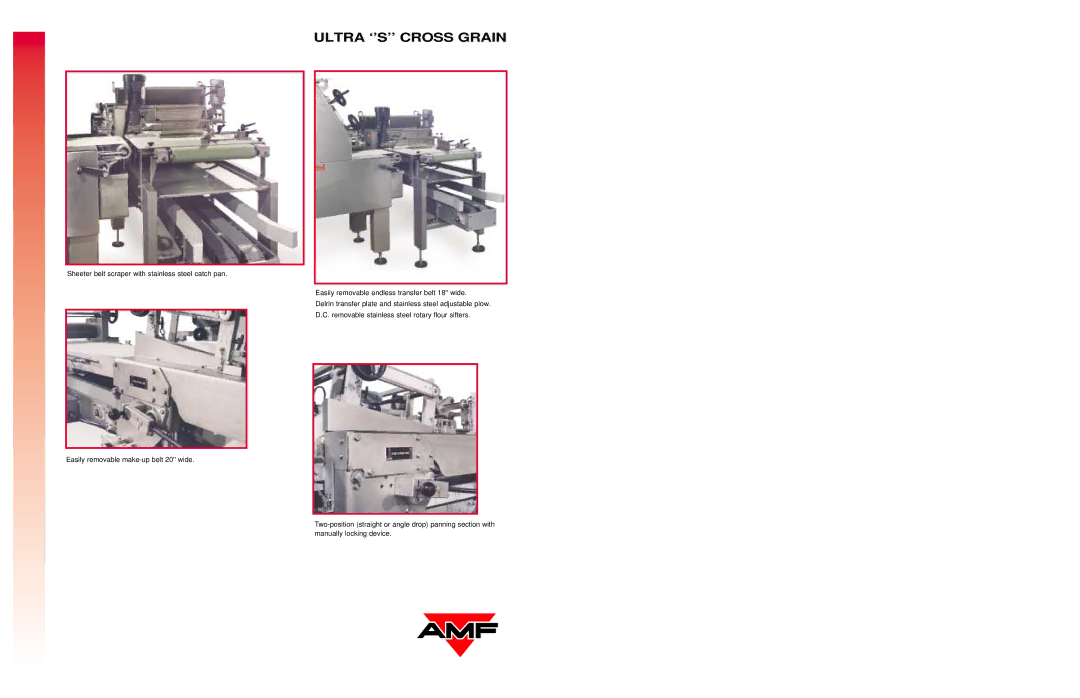

U.H.M.W. sheeter belt scraper with stainless steel catch pan.

Complete Sheeter sector is all timing belt driven

(without chains and sprockets).

Moulder / Panner

section

Easily removable endless transfer belt 18'' wide.

Delrin transfer plate and stainless steel adjustable plow.

Stainless steel adjustable curling mat.

D.C. variable speed, removable stainless steel rotary flour sifter with automatic cut-off.

Fixed speed easily removable endless moulder belt 20'' wide (cantilever frame design).

Easily removable endless “motorized” pressure board belt 19'' wide. (Adjustable at both ends, with floating action).

New design “insert style” U.H.M.W. dough guides, supplied with 4 different thicknesses (1/2'', 3/4'', 1'', 1-1/4'').

Stainless steel Sanigrid drop chain assembly (15'' wide X 22'' long) with manual adjustable dough guides.

Double loaf detection device.

Two-position discharge (straight or angle drop) to adapt “optional” hand twist table section.

Stainless steel sliding catch pan.

Manual adjustable pan guides (min. 7'' - max. 19'').

A.C. variable speed dual strand plastic table-top pan conveyor.

Magnetic pan indexer (belt type) with soft start drive system and SLC 5/03 processor (Elev. 21-3/4'' ± 1'').

Complete Moulder/Panner section is all timing belt driven (without chains and sprockets).

Electrical

Specifications

Nema 4 remote control panel with the following:

- Allen Bradley push-buttons and alarm message display

- Allen Bradley starters

- Potentiometers for flour sifters, sheeter belt and pan

- D.C. controls for flour dusters

conveyor

- A.C. inverters (2) for sheeter belt and pan conveyor

- Safeties

- Allen Bradley SLC 5/03 processor

- Emergency stop

- Main disconnect switch

- Red Lion display to indicate fault messages.

- Relays, terminal block, wiring

CAD electrical wiring.



Nema 4 operator panel mounted to moulder frame with the following:

Options

AMF dough spacer with D.C. controls.

Third set of sheeting rollers with independent drive.

Extra stainless steel Sanigrid drop chains:

12-1/2'' x 22'' LG • 11'' x 22'' LG • 9-1/2'' x 22'' LG

Pressure board equipped with new air operated lifting device.

A.C. inverters on the following:

-Dough spacer

-Flour sifters

-Sheeter rolls

-Transfer belt

-Moulder make-up belt

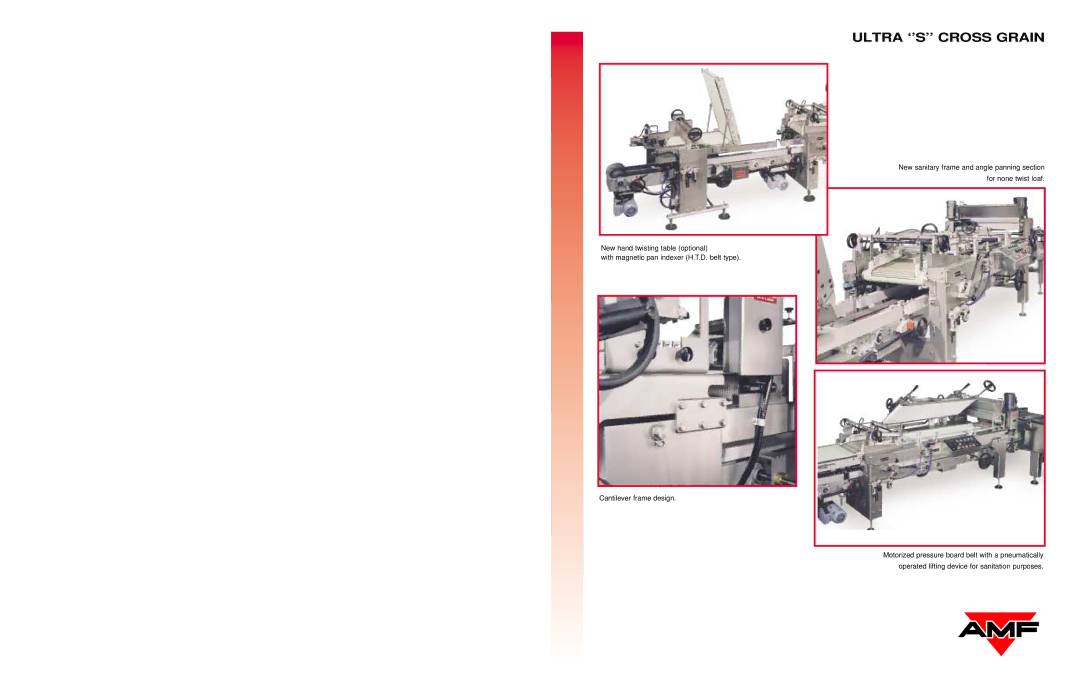

AMF hand twisting table with magnetic pan indexer.

Options Hand

Twisting section

Solid stainless steel construction.

Magnetic pan indexer (belt type) with soft start drive system.

Table/flattener roll and multiple roller drop gate assemblies.

Belt type loading section from AMF Moulder/Panner:

belt conveyor is raised vertically while hand twister is not in use, in order to permit operator to see the actual panning operation, and correct a possible “double”.

Added safeties and guards.

Electrical control panel.

For more information please call

your Account Manager or 1-800-BAKERS-1.

Headquarters

AMF Bakery Systems

2115 West Laburnum Avenue Richmond, Virginia 23227

1-800-225-3771 or 804-355-7961 FAX: 1-804-342-9724

European operation West Park Ring Road Leeds LS16 6QQ England Tel.: 1132-787110

Fax: 1132-741415

www.amfbakery.com sales@amfbakery.com

AMF’s continuing engineering is constantly improving product performance. Consequently machinery specifications are subject to change without notice.

08/2002

22-N-AB

Page 4
