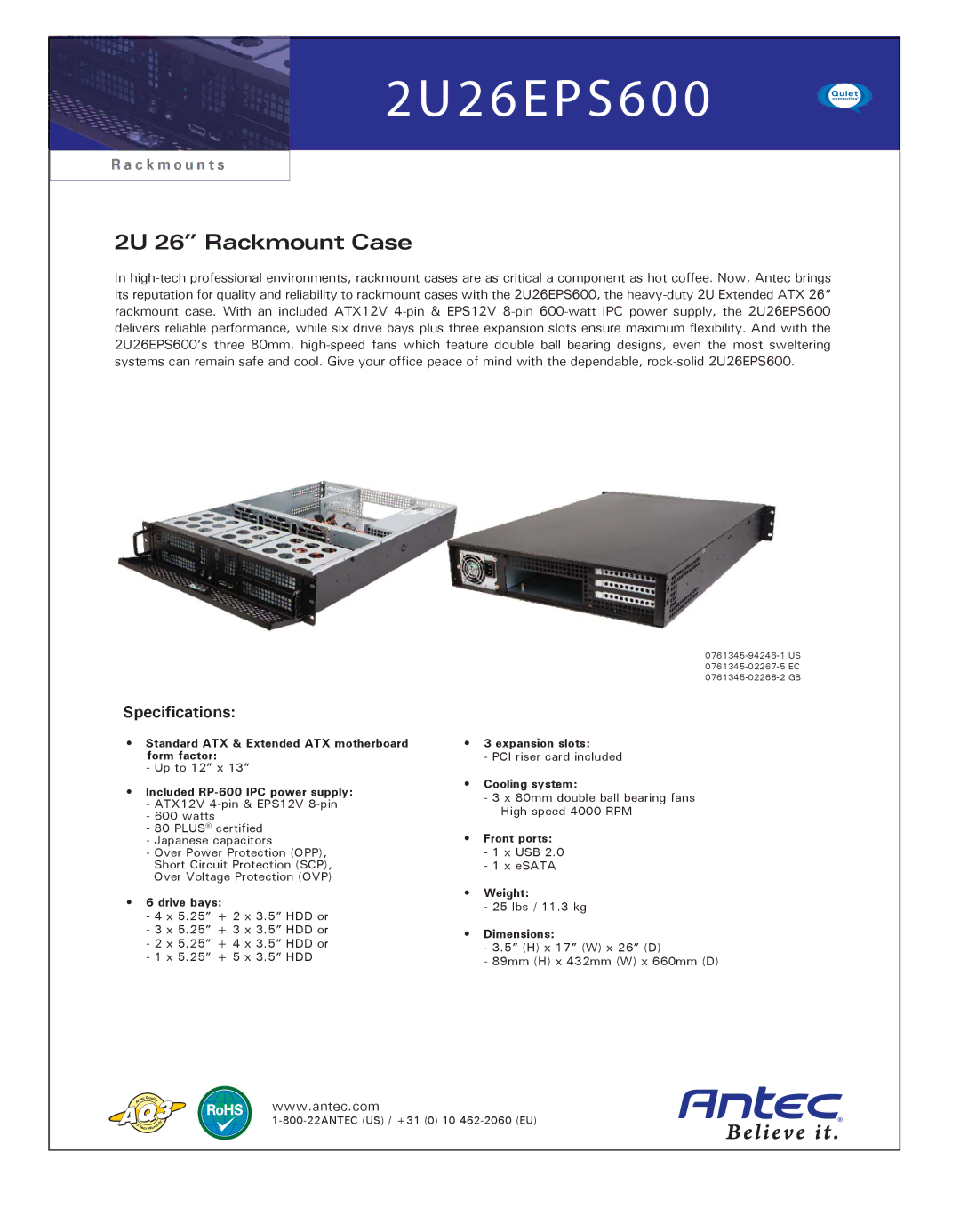

2U26EPS600
R a c k m o u n t s
2U 26” Rackmount Case
In high-tech professional environments, rackmount cases are as critical a component as hot coffee. Now, Antec brings its reputation for quality and reliability to rackmount cases with the 2U26EPS600, the heavy-duty 2U Extended ATX 26” rackmount case. With an included ATX12V 4-pin & EPS12V 8-pin 600-watt IPC power supply, the 2U26EPS600 delivers reliable performance, while six drive bays plus three expansion slots ensure maximum flexibility. And with the 2U26EPS600’s three 80mm, high-speed fans which feature double ball bearing designs, even the most sweltering systems can remain safe and cool. Give your office peace of mind with the dependable, rock-solid 2U26EPS600.
Specifications:
•Standard ATX & Extended ATX motherboard form factor:
-Up to 12” x 13”
•Included RP-600 IPC power supply:
-ATX12V 4-pin & EPS12V 8-pin
-600 watts
-80 PLUS® certified
-Japanese capacitors
-Over Power Protection (OPP), Short Circuit Protection (SCP), Over Voltage Protection (OVP)
•6 drive bays:
-4 x 5.25” + 2 x 3.5” HDD or
-3 x 5.25” + 3 x 3.5” HDD or
-2 x 5.25” + 4 x 3.5” HDD or
-1 x 5.25” + 5 x 3.5” HDD
0761345-94246-1 US
0761345-02267-5 EC
0761345-02268-2 GB
•3 expansion slots:
-PCI riser card included
•Cooling system:
-3 x 80mm double ball bearing fans - High-speed 4000 RPM
•Front ports:
-1 x USB 2.0
-1 x eSATA
•Weight:
-25 lbs / 11.3 kg
•Dimensions:
-3.5” (H) x 17” (W) x 26” (D)
-89mm (H) x 432mm (W) x 660mm (D)
www.antec.com
1-800-22ANTEC (US) / +31 (0) 10 462-2060 (EU)
