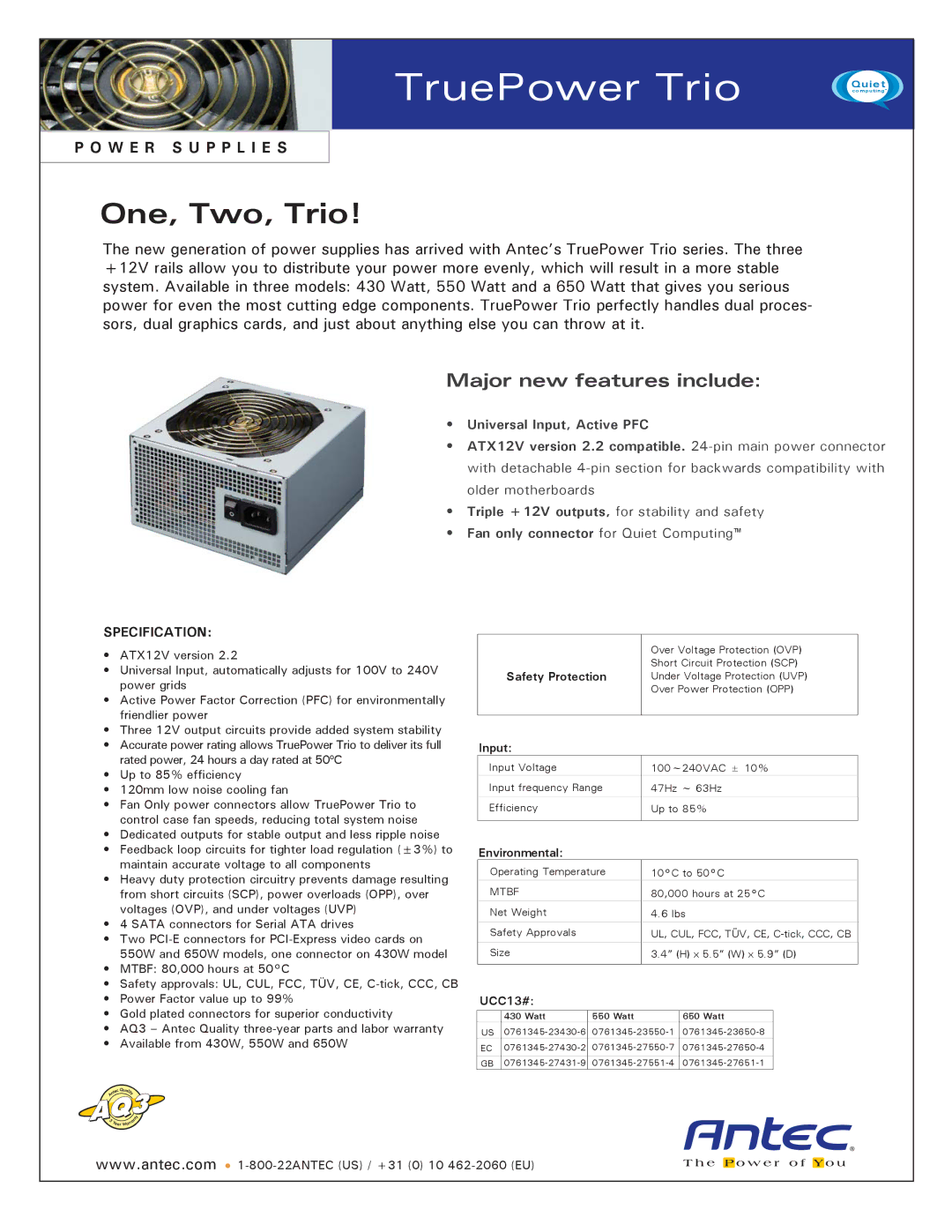

TruePower Trio

P O W E R S U P P L I E S

One, Two, Trio!

Quiet

computing™

The new generation of power supplies has arrived with Antec’s TruePower Trio series. The three +12V rails allow you to distribute your power more evenly, which will result in a more stable system. Available in three models: 430 Watt, 550 Watt and a 650 Watt that gives you serious power for even the most cutting edge components. TruePower Trio perfectly handles dual proces- sors, dual graphics cards, and just about anything else you can throw at it.

Major new features include:

•Universal Input, Active PFC

•ATX12V version 2.2 compatible. 24-pin main power connector with detachable 4-pin section for backwards compatibility with older motherboards

•Triple +12V outputs, for stability and safety

•Fan only connector for Quiet Computing™

SPECIFICATION:

• ATX12V version 2.2

• Universal Input, automatically adjusts for 100V to 240V

power grids

• Active Power Factor Correction (PFC) for environmentally

friendlier power

• Three 12V output circuits provide added system stability

• Accurate power rating allows TruePower Trio to deliver its full

rated power, 24 hours a day rated at 50ºC

• Up to 85% efficiency

• 120mm low noise cooling fan

• Fan Only power connectors allow TruePower Trio to

control case fan speeds, reducing total system noise

• Dedicated outputs for stable output and less ripple noise

• Feedback loop circuits for tighter load regulation (±3%) to

maintain accurate voltage to all components

• Heavy duty protection circuitry prevents damage resulting

from short circuits (SCP), power overloads (OPP), over

voltages (OVP), and under voltages (UVP)

• 4 SATA connectors for Serial ATA drives

• Two PCI-E connectors for PCI-Express video cards on

550W and 650W models, one connector on 430W model

• MTBF: 80,000 hours at 50°C

• Safety approvals: UL, CUL, FCC, TÜV, CE, C-tick, CCC, CB

Safety Protection

Input:

Input Voltage

Input frequency Range Efficiency

Environmental:

Operating Temperature

MTBF

Net Weight

Safety Approvals

Size

Over Voltage Protection (OVP)

Short Circuit Protection (SCP)

Under Voltage Protection (UVP)

Over Power Protection (OPP)

100~240VAC ± 10% 47Hz ~ 63Hz

Up to 85%

10°C to 50°C

80,000 hours at 25°C

4.6 lbs

UL, CUL, FCC, TÜV, CE, C-tick, CCC, CB 3.4” (H) x 5.5” (W) x 5.9” (D)

• Power Factor value up to 99%

• Gold plated connectors for superior conductivity

•

AQ3 – Antec Quality three-year parts and labor warranty

•

Available from 430W, 550W and 650W

UCC13#:

430 Watt

550 Watt

650 Watt

US 0761345-23430-6 0761345-23550-1 0761345-23650-8 EC 0761345-27430-2 0761345-27550-7 0761345-27650-4 GB 0761345-27431-9 0761345-27551-4 0761345-27651-1

www.antec.com 1-800-22ANTEC (US) / +31 (0) 10 462-2060 (EU)
