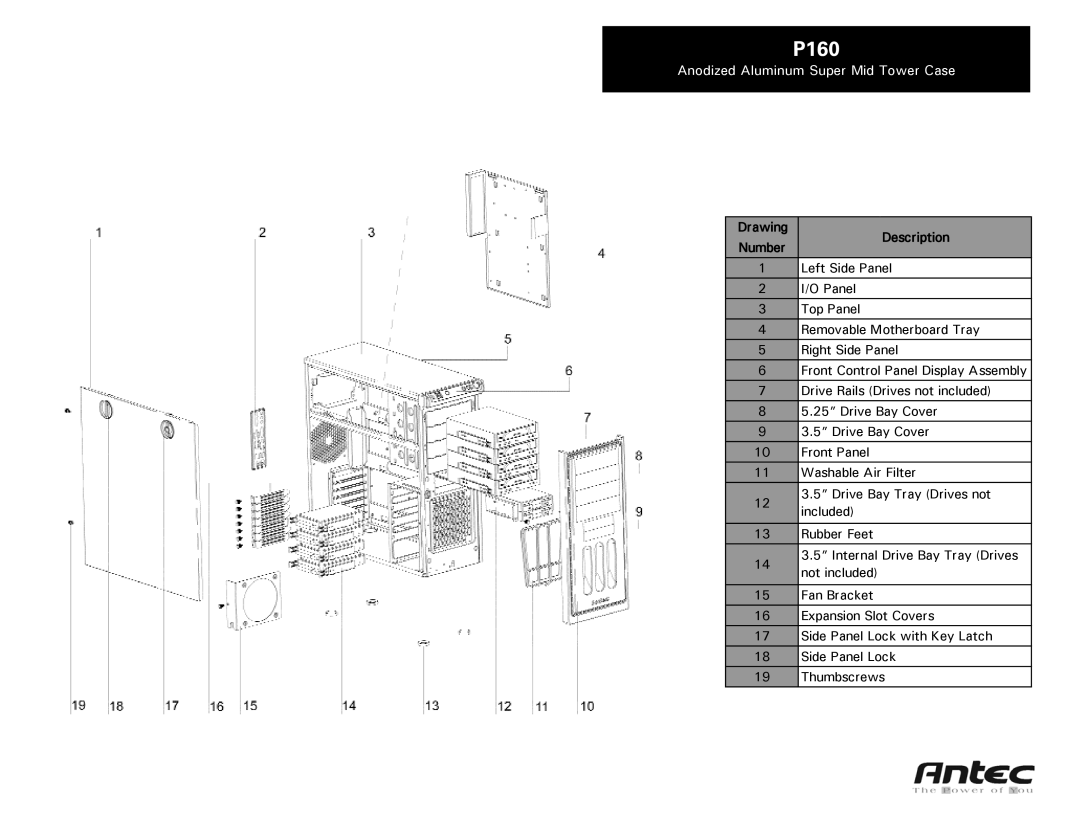

P160

Anodized Aluminum Super Mid Tower Case

Drawing

Description

Number



1

Left Side Panel

2

I/O Panel

3

Top Panel

4

Removable Motherboard Tray

5

Right Side Panel

6

Front Control Panel Display Assembly

7

Drive Rails (Drives not included)

8

5.25” Drive Bay Cover

9

3.5” Drive Bay Cover

10

Front Panel

11

Washable Air Filter

12

3.5” Drive Bay Tray (Drives not

included)



13

Rubber Feet

14

3.5” Internal Drive Bay Tray (Drives

not included)



15

Fan Bracket

16

Expansion Slot Covers

17

Side Panel Lock with Key Latch

18

Side Panel Lock

19

Thumbscrews





Page 1
Image 1
Antec P160 manual Drawing Description Number

P160 specifications

The Antec P160 is a mid-tower chassis that has made a significant impact on the PC building community. Known for its blend of performance and aesthetics, the P160 stands out with its sleek aluminum exterior and functional design. Its build quality is impressive, featuring a brushed aluminum finish that gives it a premium look and feel, while also being relatively lightweight for easy transportation.

One of the primary features of the Antec P160 is its advanced cooling system. The case supports multiple fans, including two 120mm fans at the front and one at the rear, allowing for efficient airflow throughout the chassis. Additionally, it has the capability to accommodate a 120mm radiator for water cooling, making it suitable for both air and liquid cooling setups. This versatility ensures that users can maintain optimal temperatures during intense gaming sessions or heavy workloads.

Another notable characteristic of the Antec P160 is its spacious interior, which supports a wide range of components. It can accommodate standard ATX and Micro-ATX motherboards, along with ample space for high-end graphics cards and multiple storage drives. The drive bays are also tool-less, which simplifies the installation process and allows builders to customize their setups with ease.

For cable management, the P160 offers a well-thought-out design with numerous routing options, helping to keep cables organized and out of sight. This not only improves the aesthetics of the build but also enhances airflow, contributing to overall system performance.

The front panel of the case is equipped with USB 2.0 and audio ports, providing convenient access for peripherals. Additionally, the front bezel features a locking mechanism to secure the drives inside, adding an extra layer of protection for important data.

In summary, the Antec P160 is a well-rounded mid-tower chassis known for its stylish design, excellent cooling capabilities, and user-friendly features. Its combination of functionality, expandability, and aesthetics has made it a favored choice among gamers and enthusiasts alike, solidifying its reputation in the ever-evolving landscape of computer cases. Whether building a gaming rig or a workstation, the P160 offers the versatility needed to create a powerful and visually appealing setup.
