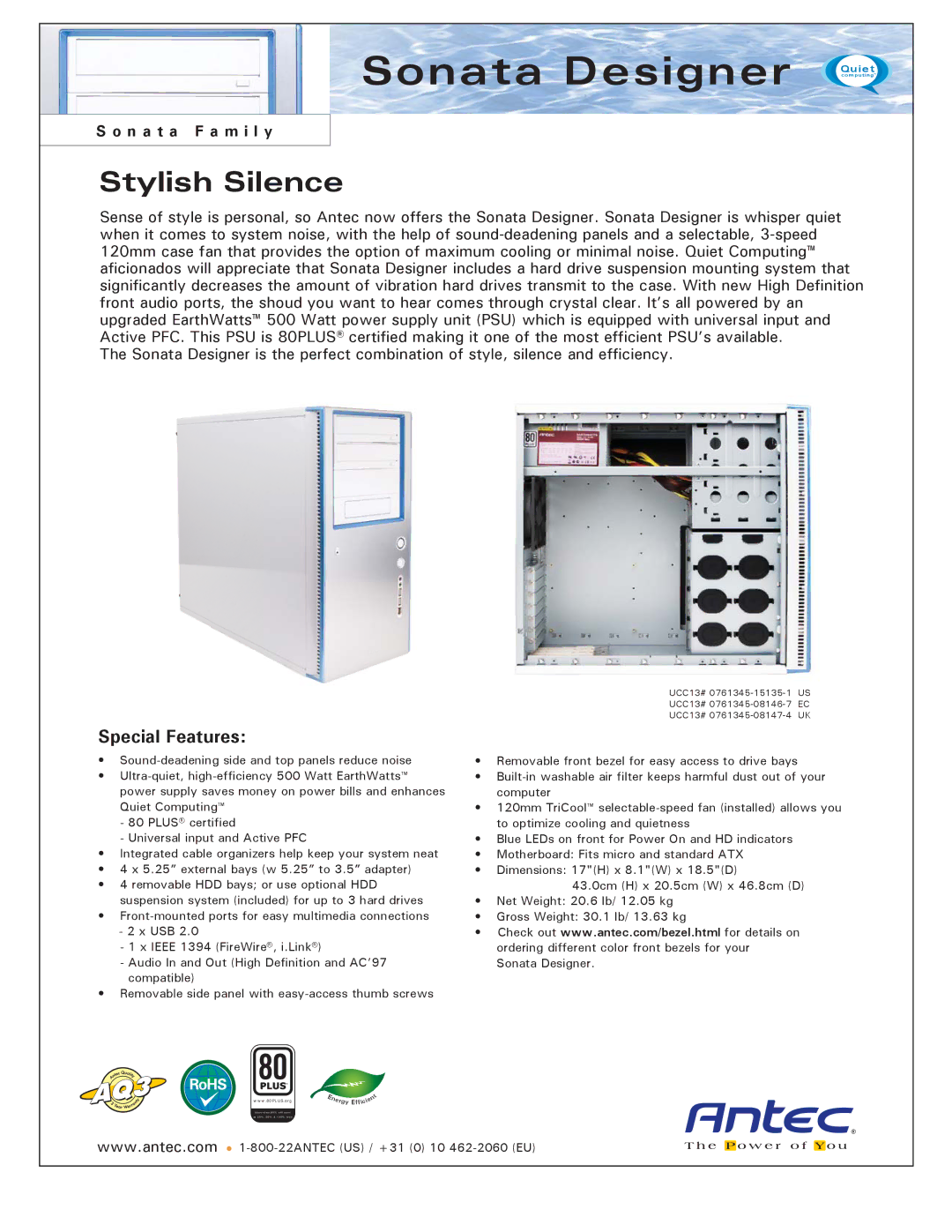

Antec UCC13# 0761345-08147-4 UK dimensions Sonata Designer, Stylish Silence, Special Features

Sonata Designer

S o n a t a F a m i l y

Quiet

computing™

Stylish Silence

Sense of style is personal, so Antec now offers the Sonata Designer. Sonata Designer is whisper quiet when it comes to system noise, with the help of sound-deadening panels and a selectable, 3-speed 120mm case fan that provides the option of maximum cooling or minimal noise. Quiet Computing™ aficionados will appreciate that Sonata Designer includes a hard drive suspension mounting system that significantly decreases the amount of vibration hard drives transmit to the case. With new High Definition front audio ports, the shoud you want to hear comes through crystal clear. It’s all powered by an upgraded EarthWatts™ 500 Watt power supply unit (PSU) which is equipped with universal input and Active PFC. This PSU is 80PLUS® certified making it one of the most efficient PSU’s available.

The Sonata Designer is the perfect combination of style, silence and efficiency.

Special Features:

•Sound-deadening side and top panels reduce noise

•Ultra-quiet, high-efficiency 500 Watt EarthWatts™ power supply saves money on power bills and enhances Quiet Computing™

-80 PLUS® certified

-Universal input and Active PFC

•Integrated cable organizers help keep your system neat

•4 x 5.25” external bays (w 5.25” to 3.5” adapter)

•4 removable HDD bays; or use optional HDD suspension system (included) for up to 3 hard drives

•Front-mounted ports for easy multimedia connections

-2 x USB 2.0

-1 x IEEE 1394 (FireWire®, i.Link®)

-Audio In and Out (High Definition and AC’97 compatible)

•Removable side panel with easy-access thumb screws

UCC13# 0761345-15135-1 US

UCC13# 0761345-08146-7 EC

UCC13# 0761345-08147-4 UK

•Removable front bezel for easy access to drive bays

•Built-in washable air filter keeps harmful dust out of your computer

•120mm TriCool™ selectable-speed fan (installed) allows you to optimize cooling and quietness

•Blue LEDs on front for Power On and HD indicators

•Motherboard: Fits micro and standard ATX

•Dimensions: 17"(H) x 8.1"(W) x 18.5"(D)

43.0cm (H) x 20.5cm (W) x 46.8cm (D)

•Net Weight: 20.6 lb/ 12.05 kg

•Gross Weight: 30.1 lb/ 13.63 kg

•Check out www.antec.com/bezel.html for details on ordering different color front bezels for your Sonata Designer.

®

www.80PLUS.org

More than 80% efficient at 20%, 50% & 100% load

E

n

e

r

g

y

	t
	n
ie
Effic

www.antec.com 1-800-22ANTEC (US) / +31 (0) 10 462-2060 (EU)
