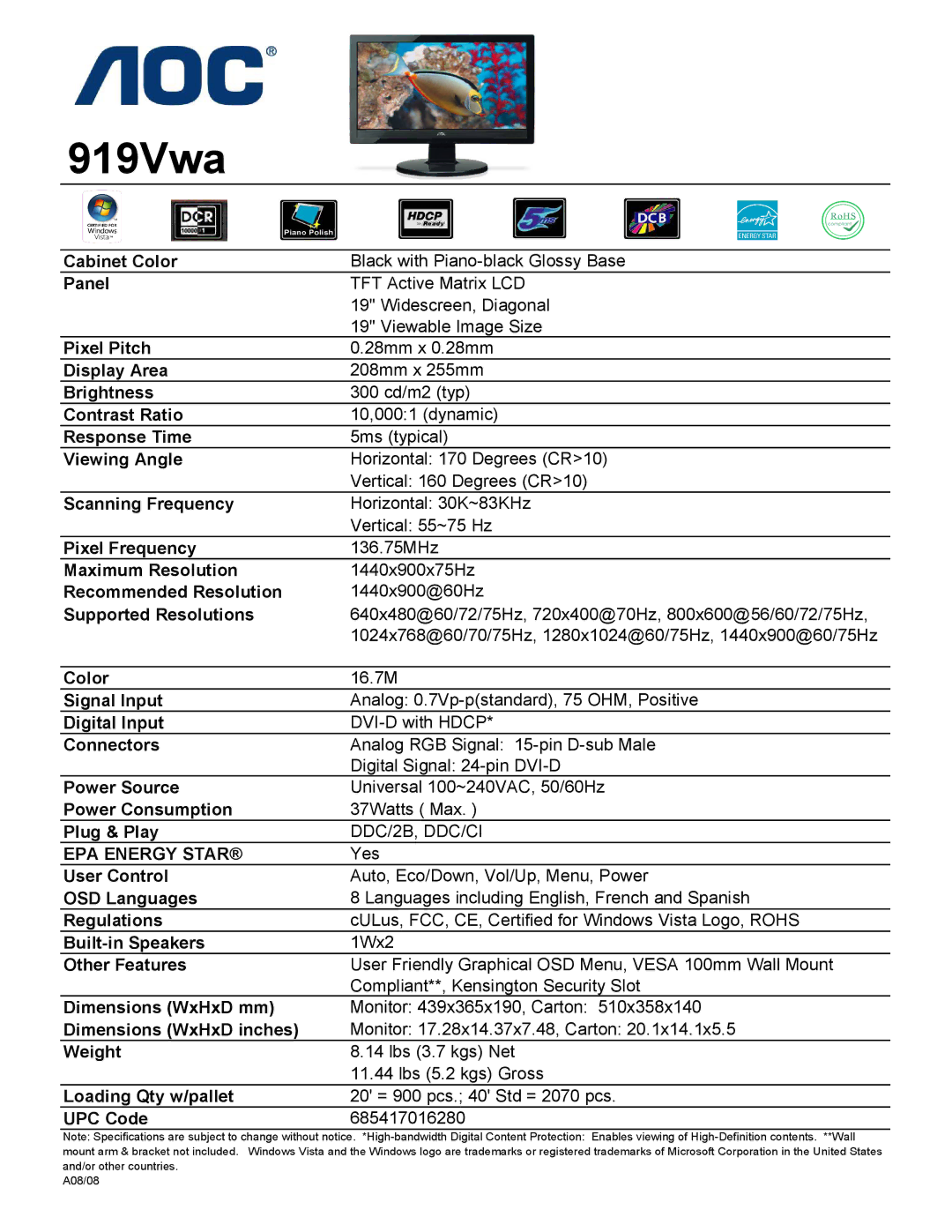

AOC 919Vwa dimensions DDC/2B, DDC/CI

919Vwa

Cabinet Color	Black with Piano-black Glossy Base
Panel	TFT Active Matrix
	19" Widescreen, Diagonal
	19" Viewable Image Size
Pixel Pitch	0.28mm x 0.28mm
Display Area	208mm x 255mm
Brightness	300 cd/m2 (typ)
Contrast Ratio	10,000:1 (dynamic)
Response Time	5ms (typic
Viewing Angle	Horizontal: 170 Degrees (CR>10)
	Vertical: 160 Degrees (CR>10)
Scanning Frequency	Horizontal: 30K~83KHz
	Vertical: 55~75 Hz
Pixel Frequency	136.75MHz
Maximum Resolution	1440x900x75Hz
Recommended Resolution	1440x900@60Hz
Supported Resolutions	640x480@60/72/75Hz, 720x400@70Hz, 800x600@56/60/72/75Hz,
	1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1440x900@60/75Hz
Color	16.7M
Signal Input	Analog: 0.7Vp-p(standard), 75 OHM, Positive
Digital In	DVI-D with HDCP
Connectors	Analog RGB Signal: 15-pin D-sub Male
	Digital Signal: 24-pin
Power Source	Universal 100~240VAC, 50/60Hz
Power Consumption	37Watts ( Max. )
Plug & Play	DDC/2B, DDC/CI
EPA ENERGY STARfi	Yes
User Control	Auto, Eco/Down, Vol/Up, Menu, Power
OSD Languages	8 Languages including English, French and Spanish
Regulations	cULus, FCC, CE, Certified for Windows Vista Logo, ROHS
Built-in Speakers	1Wx2
Other Features	User Friendly Graphical OSD Menu, VESA 100mm Wall Mount
	Compliant**, Kensington Security Slot
Dimensions (WxHxD mm)	Monitor: 439x365x190, Carton: 510x3
Dimensions (WxHxD inches)	Monitor: 17.28x14.37x7.48, Carton: 20.1x14.1x5.5
Weight	8.14 lbs (3.7 kgs) Net
	11.44 lbs (5.2 kgs) Gross
Loading Qty w/pallet	20’ = 900 pcs.; 40’ Std = 2070 pcs.
UPC Code	685417016280

Note: Specifications are subject to change without notice. *High-bandwidth Digital Content Protection: Enables viewing of High-Definit mount arm & bracket not included. Windows Vista and the Windows logo are trademarks or registered trademarks of Microsoft Co

and/or other countries. A08/08
