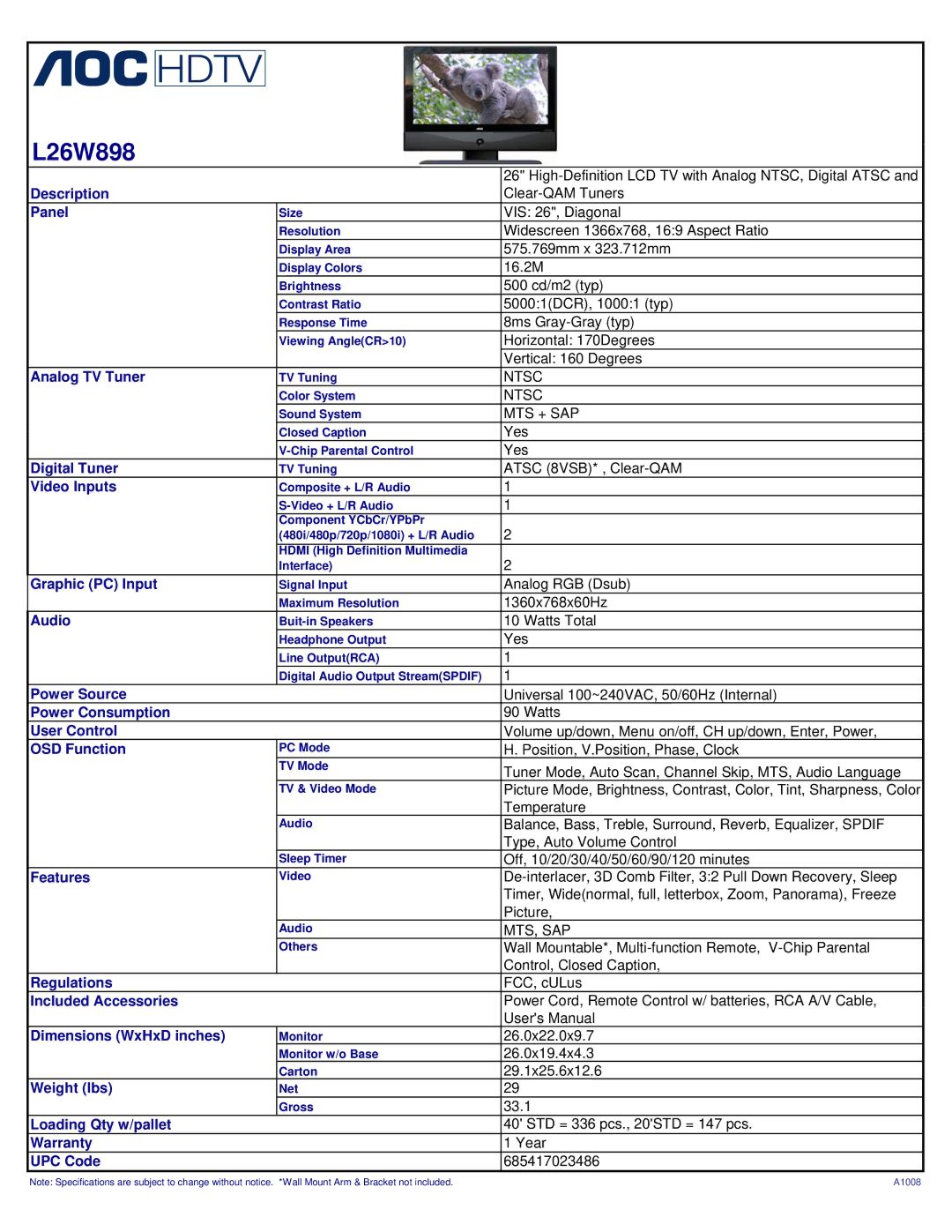

L26W898





26" High-Definition LCD TV with Analog NTSC, Digital ATSC and

Description



Clear-QAM Tuners

Panel

Size

VIS: 26", Diagonal



Resolution

Widescreen 1366x768, 16:9 Aspect Ratio



Display Area

575.769mm x 323.712mm



Display Colors

16.2M



Brightness

500 cd/m2 (typ)



Contrast Ratio

5000:1(DCR), 1000:1 (typ)



Response Time

8ms Gray-Gray (typ)



Viewing Angle(CR>10)

Horizontal: 170Degrees





Vertical: 160 Degrees

Analog TV Tuner

TV Tuning

NTSC



Color System

NTSC



Sound System

MTS + SAP



Closed Caption

Yes



V-Chip Parental Control

Yes

Digital Tuner

TV Tuning

ATSC (8VSB)* , Clear-QAM

Video Inputs

Composite + L/R Audio

1



S-Video + L/R Audio

1



Component YCbCr/YPbPr

2



(480i/480p/720p/1080i) + L/R Audio



HDMI (High Definition Multimedia

2



Interface)

Graphic (PC) Input

Signal Input

Analog RGB (Dsub)



Maximum Resolution

1360x768x60Hz

Audio

Buit-in Speakers

10 Watts Total



Headphone Output

Yes



Line Output(RCA)

1



Digital Audio Output Stream(SPDIF)

1

Power Source



Universal 100~240VAC, 50/60Hz (Internal)

Power Consumption



90 Watts

User Control



Volume up/down, Menu on/off, CH up/down, Enter, Power,

OSD Function

PC Mode

H. Position, V.Position, Phase, Clock



TV Mode

Tuner Mode, Auto Scan, Channel Skip, MTS, Audio Language







TV & Video Mode

Picture Mode, Brightness, Contrast, Color, Tint, Sharpness, Color





Temperature



Audio

Balance, Bass, Treble, Surround, Reverb, Equalizer, SPDIF





Type, Auto Volume Control



Sleep Timer

Off, 10/20/30/40/50/60/90/120 minutes

Features

Video

De-interlacer, 3D Comb Filter, 3:2 Pull Down Recovery, Sleep





Timer, Wide(normal, full, letterbox, Zoom, Panorama), Freeze



Audio

Picture,



MTS, SAP



Others

Wall Mountable*, Multi-function Remote, V-Chip Parental





Control, Closed Caption,

Regulations



FCC, cULus

Included Accessories



Power Cord, Remote Control w/ batteries, RCA A/V Cable,





User's Manual

Dimensions (WxHxD inches)

Monitor

26.0x22.0x9.7



Monitor w/o Base

26.0x19.4x4.3



Carton

29.1x25.6x12.6

Weight (lbs)

Net

29



Gross

33.1

Loading Qty w/pallet



40' STD = 336 pcs., 20'STD = 147 pcs.

Warranty



1 Year

UPC Code



685417023486

Note: Specifications are subject to change without notice. *Wall Mount Arm & Bracket not included.

A1008

Page 1
Image 1
AOC L26W898 user manual

L26W898 specifications

The AOC L26W898 is a versatile monitor designed to cater to the needs of both casual users and professionals. With its sleek design and robust features, it stands out in the competitive market of monitors. This model is particularly notable for its 26-inch screen size, which strikes a perfect balance between space efficiency and usability.

One of the key features of the AOC L26W898 is its widescreen display with a native resolution of 1920x1080 pixels. This Full HD resolution ensures crisp and clear visuals, making it suitable for various applications, from gaming to multimedia editing. The monitor employs LED backlighting technology, which enhances brightness and color accuracy while also contributing to lower energy consumption compared to traditional LCD monitors.

In terms of connectivity, the L26W898 offers a plethora of options. It is equipped with multiple input ports, including HDMI, VGA, and DVI-D, allowing users to connect a range of devices effortlessly. This versatility makes it an ideal choice for those who wish to use the monitor with laptops, desktops, or gaming consoles.

The AOC L26W898 also comes with adaptive technology to enhance the viewing experience. It features a fast 5ms response time, which minimizes motion blur, making it an excellent choice for fast-paced gaming sessions or watching action-packed movies. Additionally, the monitor boasts a wide viewing angle, thanks to its IPS panel technology, which ensures that colors remain consistent and vivid from various angles.

Moreover, the built-in speakers enhance the multimedia experience by eliminating the need for external sound systems for general usage. The ergonomic design of the stand allows for tilt adjustments, enabling users to find the most comfortable viewing angle.

The monitor is not only designed for performance but also prioritizes user comfort. It includes various eye-care technologies, such as flicker-free technology and a low blue light mode, which help reduce eye strain during prolonged use.

In summary, the AOC L26W898 combines a stylish aesthetic with advanced technology and practical features, making it a strong contender in the realm of versatile monitors. Whether for gaming, work, or multimedia consumption, it meets the demands of modern users with efficiency and style.
