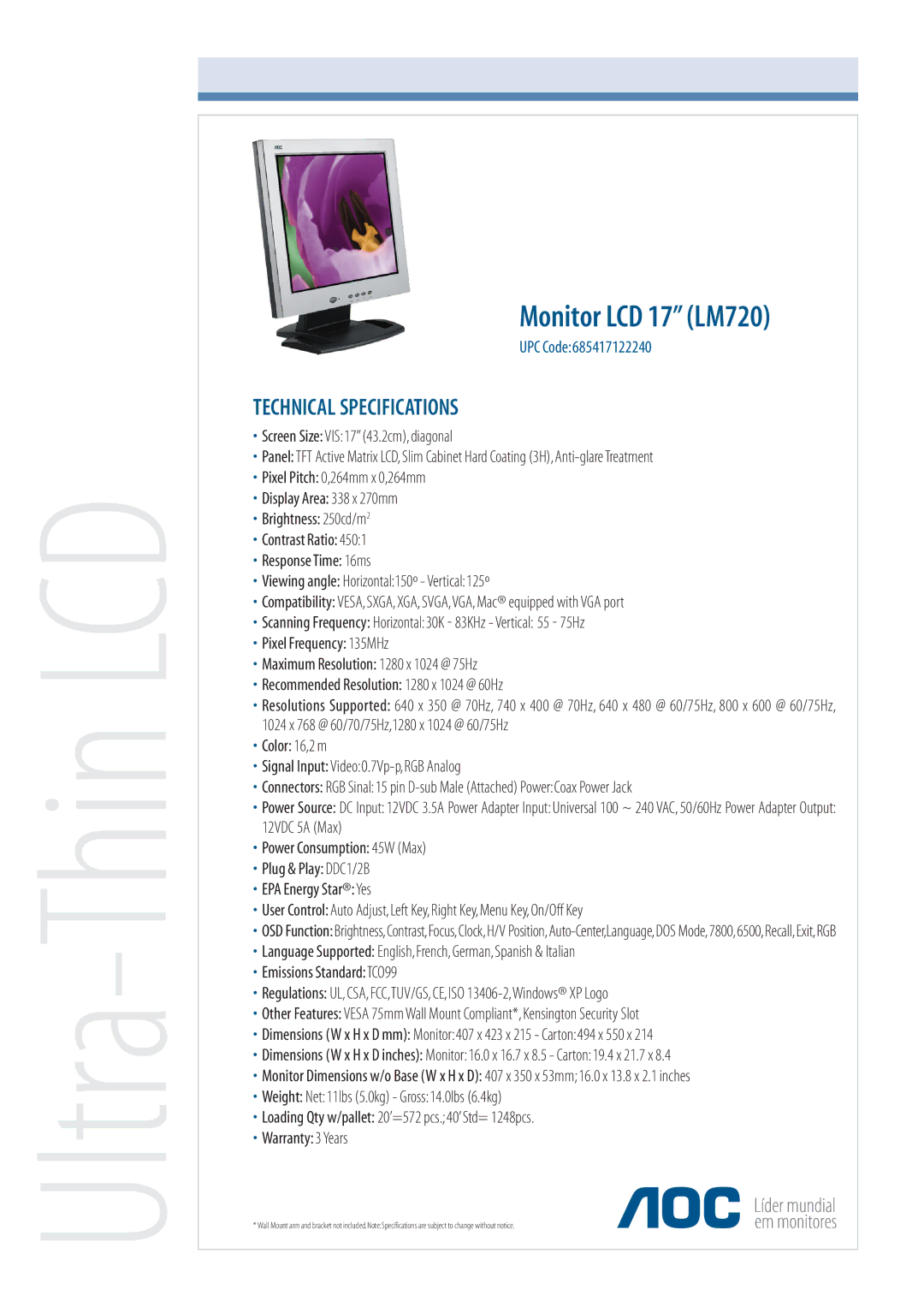

Ultra-Thin LCD
Monitor LCD 17” (LM720)
UPC Code:685417122240
TECHNICAL SPECIFICATIONS
•Screen Size: VIS: 17” (43.2cm), diagonal
•Panel: TFT Active Matrix LCD, Slim Cabinet Hard Coating (3H),
•Pixel Pitch: 0,264mm x 0,264mm
•Display Area: 338 x 270mm
•Brightness: 250cd/m2
•Contrast Ratio: 450:1
•Response Time: 16ms
•Viewing angle: Horizontal:150º - Vertical: 125º
•Compatibility: VESA, SXGA, XGA, SVGA,VGA, Mac® equipped with VGA port
•Scanning Frequency: Horizontal: 30K ˜ 83KHz - Vertical: 55 ˜ 75Hz
•Pixel Frequency: 135MHz
•Maximum Resolution: 1280 x 1024 @ 75Hz
•Recommended Resolution: 1280 x 1024 @ 60Hz
•Resolutions Supported: 640 x 350 @ 70Hz, 740 x 400 @ 70Hz, 640 x 480 @ 60/75Hz, 800 x 600 @ 60/75Hz, 1024 x 768 @ 60/70/75Hz,1280 x 1024 @ 60/75Hz
•Color: 16,2 m
•Signal Input: Video:
•Connectors: RGB Sinal: 15 pin
•Power Source: DC Input: 12VDC 3.5A Power Adapter Input: Universal 100 ~ 240 VAC, 50/60Hz Power Adapter Output: 12VDC 5A (Max)
•Power Consumption: 45W (Max)
•Plug & Play: DDC1/2B
•EPA Energy Star®: Yes
•User Control: Auto Adjust, Left Key, Right Key, Menu Key, On/Off Key
•OSD Function: Brightness, Contrast, Focus, Clock, H/V Position,
•Language Supported: English, French, German, Spanish & Italian
•Emissions Standard:TCO99
•Regulations: UL, CSA, FCC,TUV/GS, CE, ISO
•Other Features: VESA 75mm Wall Mount Compliant*, Kensington Security Slot
•Dimensions (W x H x D mm): Monitor: 407 x 423 x 215 - Carton: 494 x 550 x 214
•Dimensions (W x H x D inches): Monitor: 16.0 x 16.7 x 8.5 - Carton: 19.4 x 21.7 x 8.4
•Monitor Dimensions w/o Base (W x H x D): 407 x 350 x 53mm; 16.0 x 13.8 x 2.1 inches
•Weight: Net: 11lbs (5.0kg) - Gross: 14.0lbs (6.4kg)
•Loading Qty w/pallet: 20’=572 pcs.; 40’ Std= 1248pcs.
•Warranty: 3 Years
* Wall Mount arm and bracket not included. Note: Specifications are subject to change without notice.
