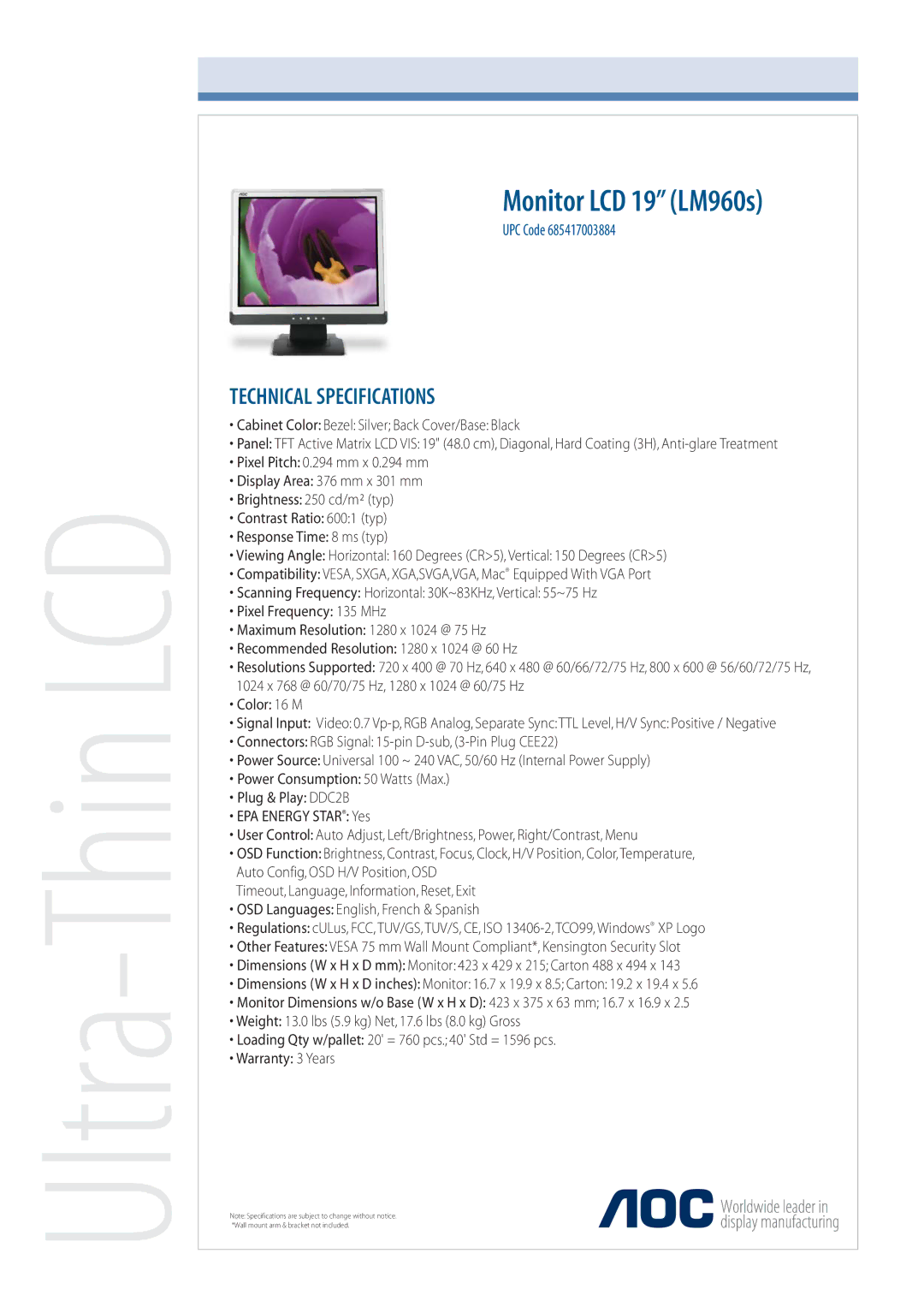

Ultra-Thin LCD

Monitor LCD 19” (LM960s)

UPC Code 685417003884

TECHNICAL SPECIFICATIONS

Cabinet Color: Bezel: Silver; Back Cover/Base: Black

Panel: TFT Active Matrix LCD VIS: 19" (48.0 cm), Diagonal, Hard Coating (3H), Anti-glare Treatment

Pixel Pitch: 0.294 mm x 0.294 mm

Display Area: 376 mm x 301 mm

Brightness: 250 cd/m² (typ)

Contrast Ratio: 600:1 (typ)

Response Time: 8 ms (typ)

Viewing Angle: Horizontal: 160 Degrees (CR>5), Vertical: 150 Degrees (CR>5)

Compatibility: VESA, SXGA, XGA,SVGA,VGA, Mac® Equipped With VGA Port

Scanning Frequency: Horizontal: 30K~83KHz, Vertical: 55~75 Hz

Pixel Frequency: 135 MHz

Maximum Resolution: 1280 x 1024 @ 75 Hz

Recommended Resolution: 1280 x 1024 @ 60 Hz

Resolutions Supported: 720 x 400 @ 70 Hz, 640 x 480 @ 60/66/72/75 Hz, 800 x 600 @ 56/60/72/75 Hz, 1024 x 768 @ 60/70/75 Hz, 1280 x 1024 @ 60/75 Hz

Color: 16 M

Signal Input: Video: 0.7 Vp-p, RGB Analog, Separate Sync:TTL Level, H/V Sync: Positive / Negative

Connectors: RGB Signal: 15-pin D-sub, (3-Pin Plug CEE22)

Power Source: Universal 100 ~ 240 VAC, 50/60 Hz (Internal Power Supply)

Power Consumption: 50 Watts (Max.)

Plug & Play: DDC2B

EPA ENERGY STAR®: Yes

User Control: Auto Adjust, Left/Brightness, Power, Right/Contrast, Menu

OSD Function: Brightness, Contrast, Focus, Clock, H/V Position, Color, Temperature, Auto Config, OSD H/V Position, OSD

Timeout, Language, Information, Reset, Exit

OSD Languages: English, French & Spanish

Regulations: cULus, FCC, TUV/GS, TUV/S, CE, ISO 13406-2, TCO99, Windows® XP Logo

Other Features: VESA 75 mm Wall Mount Compliant*, Kensington Security Slot

Dimensions (W x H x D mm): Monitor: 423 x 429 x 215; Carton 488 x 494 x 143

Dimensions (W x H x D inches): Monitor: 16.7 x 19.9 x 8.5; Carton: 19.2 x 19.4 x 5.6

Monitor Dimensions w/o Base (W x H x D): 423 x 375 x 63 mm; 16.7 x 16.9 x 2.5

Weight: 13.0 lbs (5.9 kg) Net, 17.6 lbs (8.0 kg) Gross

Loading Qty w/pallet: 20' = 760 pcs.; 40' Std = 1596 pcs.

Warranty: 3 Years

Note: Specifications are subject to change without notice. *Wall mount arm & bracket not included.

Page 1
Image 1
AOC technical specifications Ultra-Thin LCD, Monitor LCD 19 LM960s, Technical Specifications

LM960s specifications

The AOC LM960S is an innovative LCD monitor that caters to a variety of professional needs, offering a blend of outstanding features, cutting-edge technologies, and impressive characteristics. This monitor is designed for users who seek optimal display quality and versatility in their workstations.

One of the standout features of the AOC LM960S is its high-resolution display. With a resolution of 3840 x 2160 pixels, the monitor provides sharp and crystal-clear images, making it ideal for graphic design, video editing, and other visual-oriented tasks. The resolution ensures that every detail is rendered with precision, allowing for an immersive viewing experience.

The LM960S also utilizes advanced panel technology, providing wide viewing angles of up to 178 degrees. This means that colors remain consistent and accurate from virtually any angle, making it a great choice for collaborative work environments where multiple people may be viewing the screen simultaneously.

Color accuracy is another highlight of the AOC LM960S. With a wide color gamut and support for multiple color spaces, it ensures that images are vibrant and true to life. This monitor is particularly beneficial for creatives who rely on accurate color representation in their projects.

In terms of connectivity, the LM960S is equipped with a variety of ports, including HDMI, DisplayPort, and USB-C. This versatility allows users to easily connect their devices and peripherals, making it compatible with a range of systems, from traditional desktops to laptops and mobile devices.

Ergonomics also play a significant role in the design of the AOC LM960S. The monitor features height, tilt, and swivel adjustments, allowing users to customize their viewing experience for maximum comfort. An adjustable stand enhances productivity by enabling users to maintain a healthy posture during extended working hours.

The AOC LM960S also incorporates advanced technologies such as flicker-free technology and low blue light mode, which help reduce eye strain during prolonged use. These features contribute to a more comfortable viewing experience, making it suitable for both work and entertainment.

In summary, the AOC LM960S is a feature-rich monitor that stands out in the competitive landscape of professional displays. With its high resolution, wide viewing angles, exceptional color accuracy, and ergonomic design, it meets the demands of modern users, ensuring productivity and comfort. Whether for professional use or home entertainment, the AOC LM960S is a powerful tool that combines performance with style.
