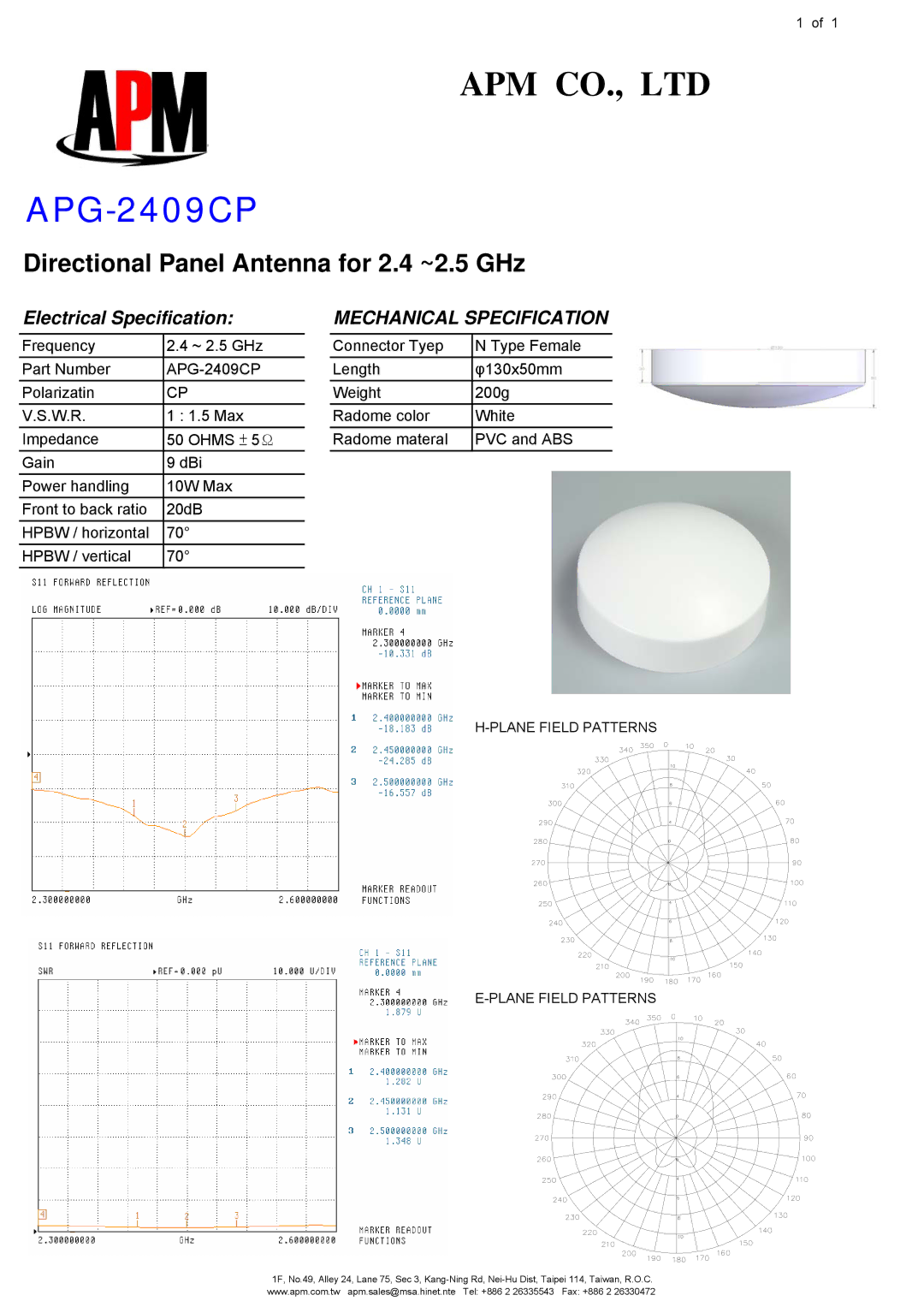

APM CO., LTD

APG-2409CP

Directional Panel Antenna for 2.4 ~2.5 GHz

Electrical Specification:

Frequency

2.4 ~ 2.5 GHz

Part Number

APG-2409CP

Polarizatin

CP

V.S.W.R.

1 : 1.5 Max

Impedance

50 OHMS ± 5

Gain

9 dBi

Power handling

10W Max

Front to back ratio

20dB

HPBW / horizontal

70°

HPBW / vertical

70°

MECHANICAL SPECIFICATION

Connector Tyep

N Type Female

Length

φ130x50mm

Weight

200g

Radome color

White

Radome materal

PVC and ABS

H-PLANE FIELD PATTERNS

0

0

E-PLANE FIELD PATTERNS

0

0
