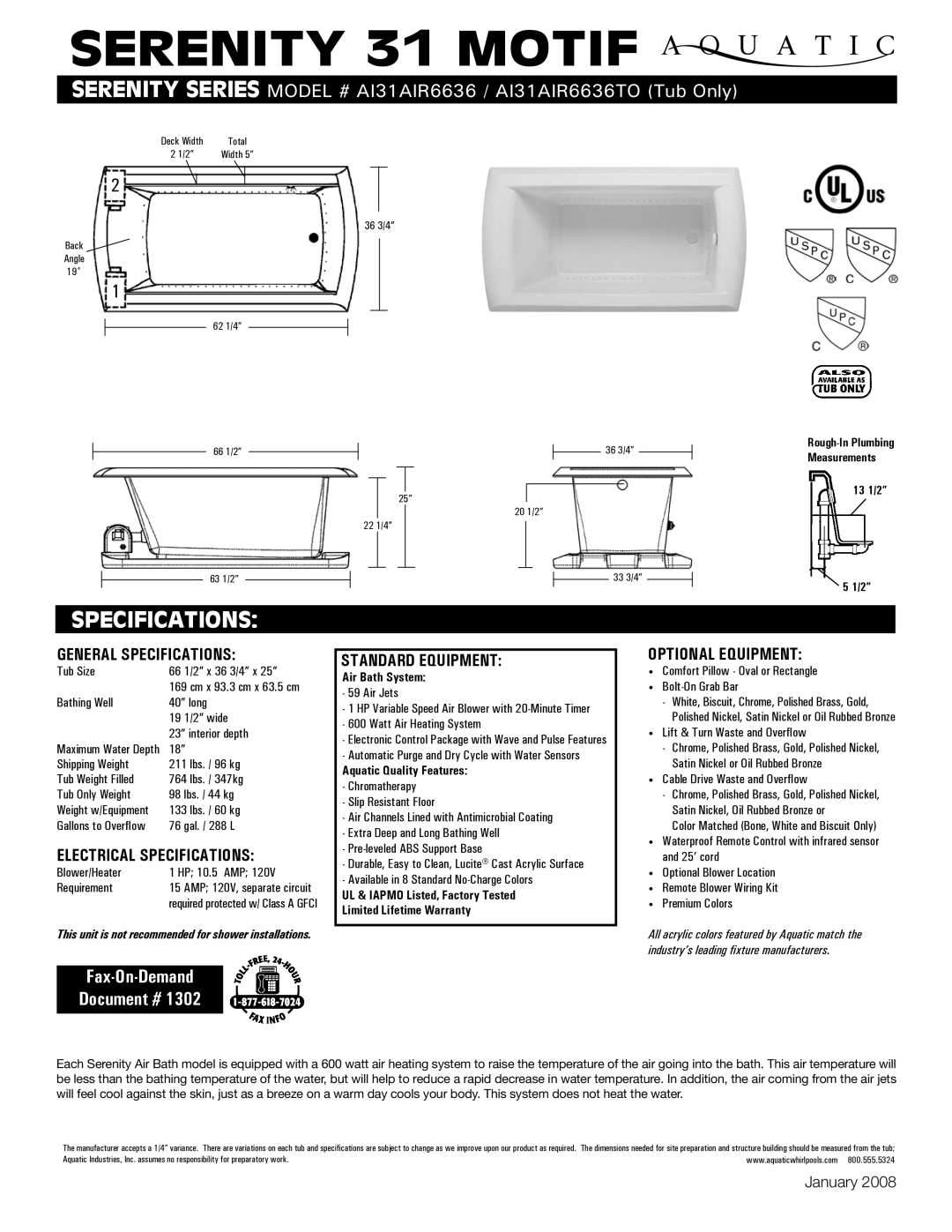

serenity 31 Motif
serenity SERIEs Model # AI31AIR6636 / AI31AIR6636TO (Tub Only)
Deck Width | Total |
2 1/2” | Width 5” |
2
Back
Angle
19˚
1
62 1/4”
66 1/2”
63 1/2”
SPECIFICATIONS:
36 3/4”
36 3/4”
25”
20 1/2”
22 1/4”
33 3/4”
5 1/2”
General Specifications:
Tub Size | 66 1/2” x 36 3/4” x 25” |
| 169 cm x 93.3 cm x 63.5 cm |
Bathing Well | 40” long |
| 19 1/2” wide |
| 23” interior depth |
Maximum Water Depth | 18” |
Shipping Weight | 211 lbs. / 96 kg |
Tub Weight Filled | 764 lbs. / 347kg |
Tub Only Weight | 98 lbs. / 44 kg |
Weight w/Equipment | 133 lbs. / 60 kg |
Gallons to Overflow | 76 gal. / 288 L |
Electrical Specifications:
Blower/Heater | 1 HP; 10.5 AMP; 120V |
Requirement | 15 AMP; 120V, separate circuit |
| required protected w/ Class A GFCI |
This unit is not recommended for shower installations.
Fax-On-Demand
Document # 1302
Standard equipment:
Air Bath System:-59 Air Jets
-1 HP Variable Speed Air Blower with
-600 Watt Air Heating System
-Electronic Control Package with wave and pulse features
-Automatic Purge and Dry Cycle with Water Sensors
Aquatic Quality Features:-Chromatherapy
-Slip Resistant Floor
-Air Channels Lined with Antimicrobial Coating
-Extra Deep and Long Bathing Well
-
-Durable, easy to clean, Lucite® Cast Acrylic Surface
-available in 8 Standard
Limited Lifetime Warranty
optional equipment:
•Comfort Pillow - Oval or Rectangle
•
-White, Biscuit, Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•Lift & Turn Waste and Overflow
-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•Cable Drive Waste and Overflow
-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit only)
•Waterproof Remote Control with infrared sensor and 25’ cord
•Optional Blower Location
•Remote Blower Wiring Kit
•Premium colors
All acrylic colors featured by Aquatic match the industry’s leading fixture manufacturers.
Each Serenity Air Bath model is equipped with a 600 watt air heating system to raise the temperature of the air going into the bath. This air temperature will be less than the bathing temperature of the water, but will help to reduce a rapid decrease in water temperature. In addition, the air coming from the air jets will feel cool against the skin, just as a breeze on a warm day cools your body. This system does not heat the water.
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. Aquatic Industries, Inc. assumes no responsibility for preparatory work.
The dimensions needed for site preparation and structure building should be measured from the tub; www.aquaticwhirlpools.com 800.555.5324
