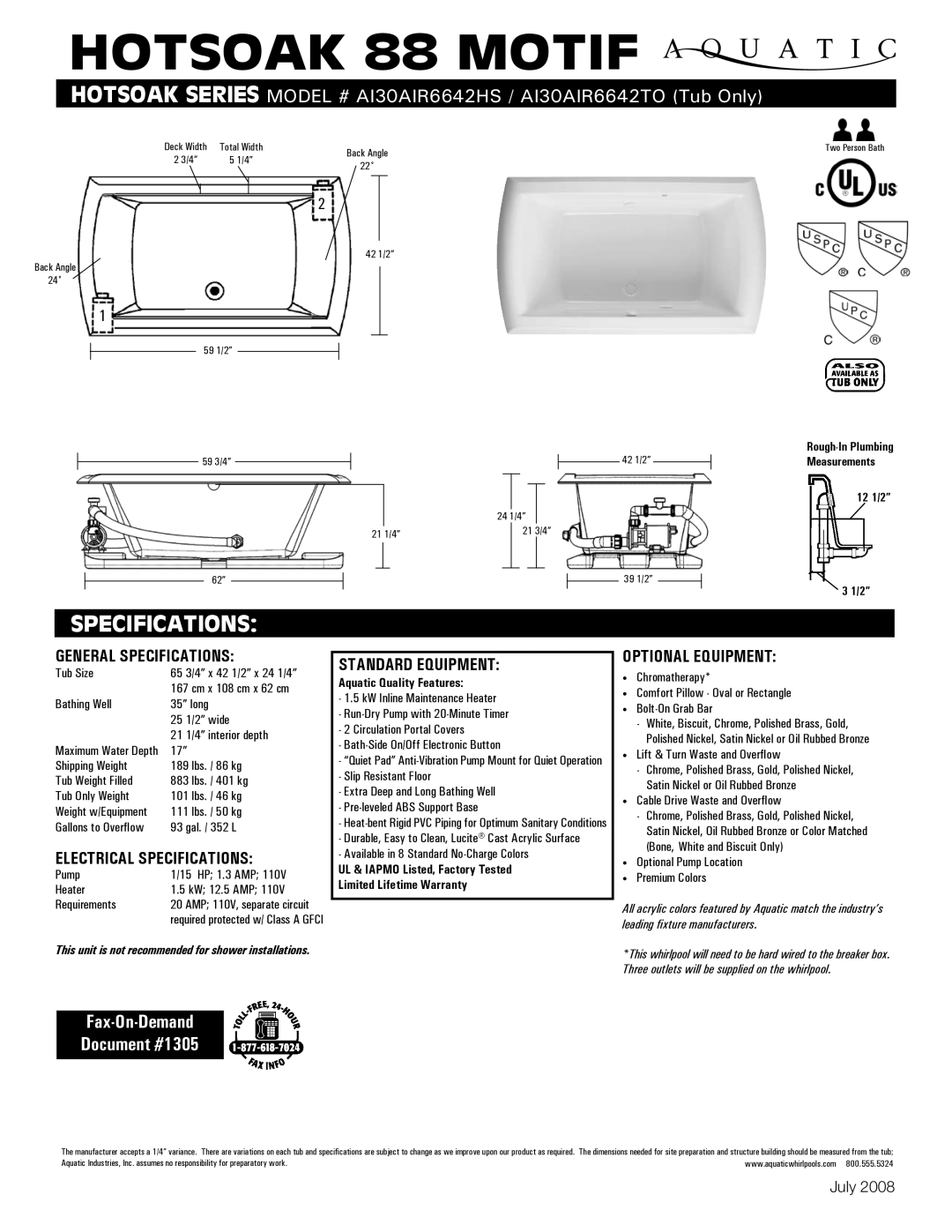

Aquatic AI30AIR6642HS specifications hotsoak 88 Motif, General Specifications, July, 3 1/2”

hotsoak 88 Motif

hotsoak SERIEs Model # AI30AIR6642HS / AI30AIR6642TO (Tub Only)

Deck Width	Total Width	Back Angle
2 3/4”	5 1/4”
		22˚

2

42 1/2”

Back Angle

24˚

1

59 1/2”

59 3/4”

	24 1/4”
21 1/4”		21 3/4”

62”

Two Person Bath

	Rough-In Plumbing
42 1/2”	Measurements
	12 1/2”

39 1/2”

3 1/2”

SPECIFICATIONS:

General Specifications:

Tub Size	65	3/4” x 42 1/2” x 24 1/4”
	167 cm x 108 cm x 62 cm
Bathing Well	35” long
	25	1/2” wide
	21	1/4” interior depth
Maximum Water Depth	17”
Shipping Weight	189 lbs. / 86 kg
Tub Weight Filled	883 lbs. / 401 kg
Tub Only Weight	101 lbs. / 46 kg
Weight w/Equipment	111 lbs. / 50 kg
Gallons to Overflow	93 gal. / 352 L

Electrical Specifications:

Pump	1/15 HP; 1.3 AMP; 110V
Heater	1.5 kW; 12.5 AMP; 110V
Requirements	20 AMP; 110V, separate circuit
	required protected w/ Class A GFCI

This unit is not recommended for shower installations.

Standard equipment:

Aquatic Quality Features:

-1.5 kW Inline Maintenance Heater

-Run-Dry Pump with 20-Minute Timer

-2 Circulation Portal Covers

-Bath-side On/Off Electronic Button

-“Quiet Pad” Anti-Vibration Pump Mount for Quiet Operation

-Slip Resistant Floor

-Extra Deep and Long Bathing Well

-Pre-leveled ABS Support Base

-Heat-bent rigid PVC piping for optimum sanitary conditions

-Durable, easy to clean, Lucite® Cast Acrylic Surface

-available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory TestedLimited Lifetime Warranty

optional equipment:

•Chromatherapy*

•Comfort Pillow - Oval or Rectangle

•Bolt-On Grab Bar

-White, Biscuit, Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel or Oil Rubbed Bronze

•Lift & Turn Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel or Oil Rubbed Bronze

•Cable Drive Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel, Oil Rubbed Bronze or Color Matched (Bone, White and Biscuit only)

•Optional Pump Location

•Premium colors

All acrylic colors featured by Aquatic match the industry’s leading fixture manufacturers.

*This whirlpool will need to be hard wired to the breaker box. Three outlets will be supplied on the whirlpool.

Fax-On-Demand Document #1305

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. Aquatic Industries, Inc. assumes no responsibility for preparatory work.

The dimensions needed for site preparation and structure building should be measured from the tub; www.aquaticwhirlpools.com 800.555.5324
