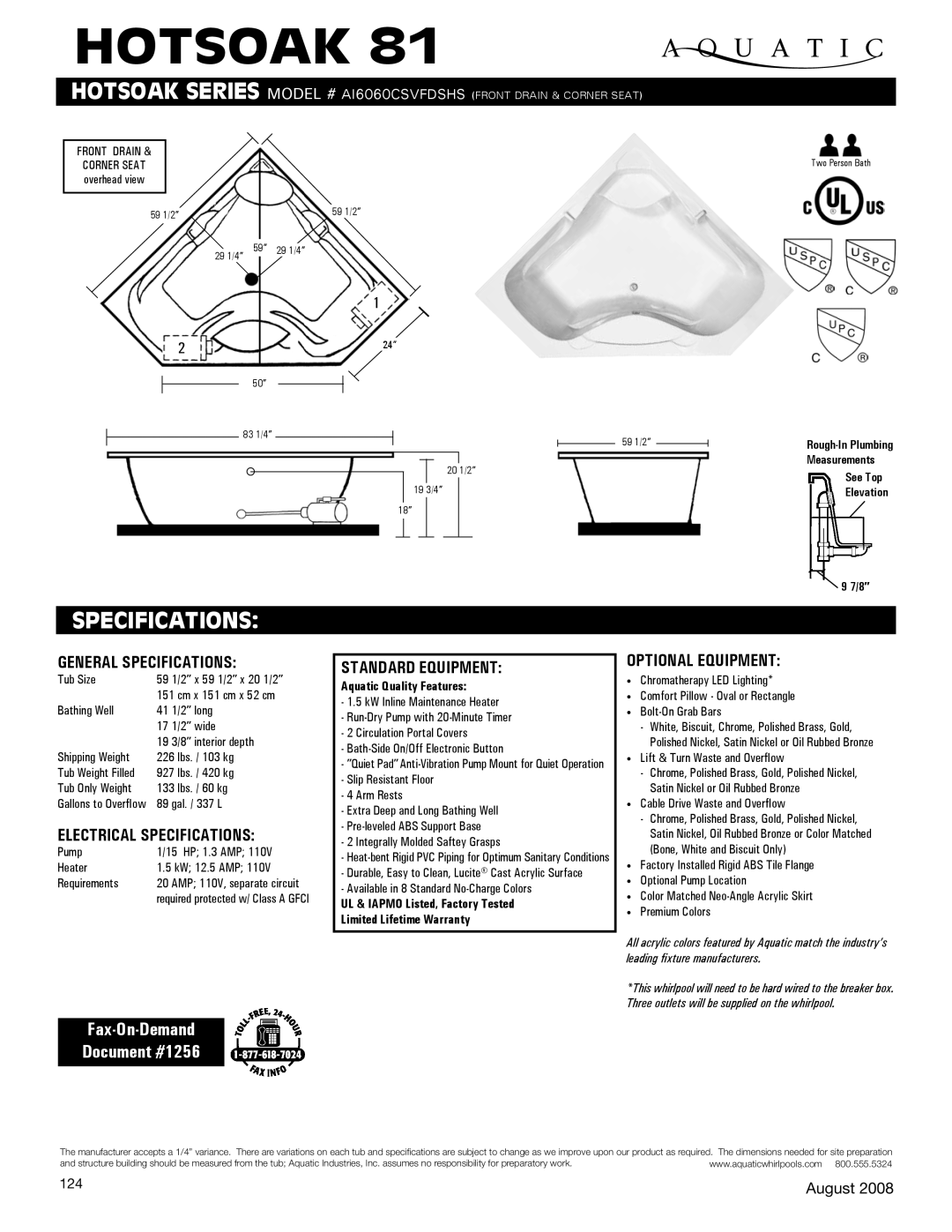

Aquatic ai6060CSvfdShS specifications hotsoak, Specifications, Fax-On-Demand Document #1256

hotsoak 81

hotsoak series Model # ai6060CSvfdshs (Front Drain & Corner Seat)

Front Drain & Corner seat overhead view

59 1/2”

29 1/4” 59” 29 1/4”

2

50”

83 1/4”

SPECIFICATIONS:

59 1/2”

1

24”

59 1/2”

20 1/2”

19 3/4”

18”

Two Person Bath

Rough-In Plumbing

Measurements

See Top

Elevation

9 7/8”

General Specifications:

Tub Size	59	1/2” x 59 1/2” x 20 1/2”
	151 cm x 151 cm x 52 cm
Bathing Well	41	1/2” long
	17	1/2” wide
	19	3/8” interior depth
Shipping Weight	226 lbs. / 103 kg
Tub Weight Filled	927 lbs. / 420 kg
Tub Only Weight	133 lbs. / 60 kg
Gallons to Overflow	89 gal. / 337 L

Electrical Specifications:

Pump	1/15 HP; 1.3 AMP; 110V
Heater	1.5 kW; 12.5 AMP; 110V
Requirements	20 AMP; 110V, separate circuit
	required protected w/ Class A GFCI

Fax-On-Demand

Document #1256

Standard equipment:

Aquatic Quality Features:

-1.5 kW Inline Maintenance Heater

-Run-Dry Pump with 20-Minute Timer

-2 Circulation Portal Covers

-Bath-side On/Off Electronic Button

-”Quiet Pad” anti-vibration pump mount for quiet Operation

-Slip Resistant Floor

-4 Arm Rests

-Extra Deep and Long Bathing Well

-Pre-leveled ABS Support Base

-2 Integrally Molded Saftey Grasps

-Heat-bent rigid PVC piping for optimum sanitary conditions

-Durable, easy to clean, Lucite® Cast Acrylic Surface

-available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested

Limited Lifetime Warranty

optional equipment:

•Chromatherapy LED Lighting*

•Comfort Pillow - Oval or Rectangle

•Bolt-On Grab Bars

-White, Biscuit, Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel or Oil Rubbed Bronze

•Lift & Turn Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel or Oil Rubbed Bronze

•Cable Drive Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel, Oil Rubbed Bronze or Color Matched (Bone, White and Biscuit only)

•Factory Installed Rigid ABS Tile Flange

•Optional Pump Location

•Color Matched Neo-Angle Acrylic Skirt

•Premium colors

All acrylic colors featured by Aquatic match the industry’s leading fixture manufacturers.

*This whirlpool will need to be hard wired to the breaker box. Three outlets will be supplied on the whirlpool.

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324

124 August 2008
