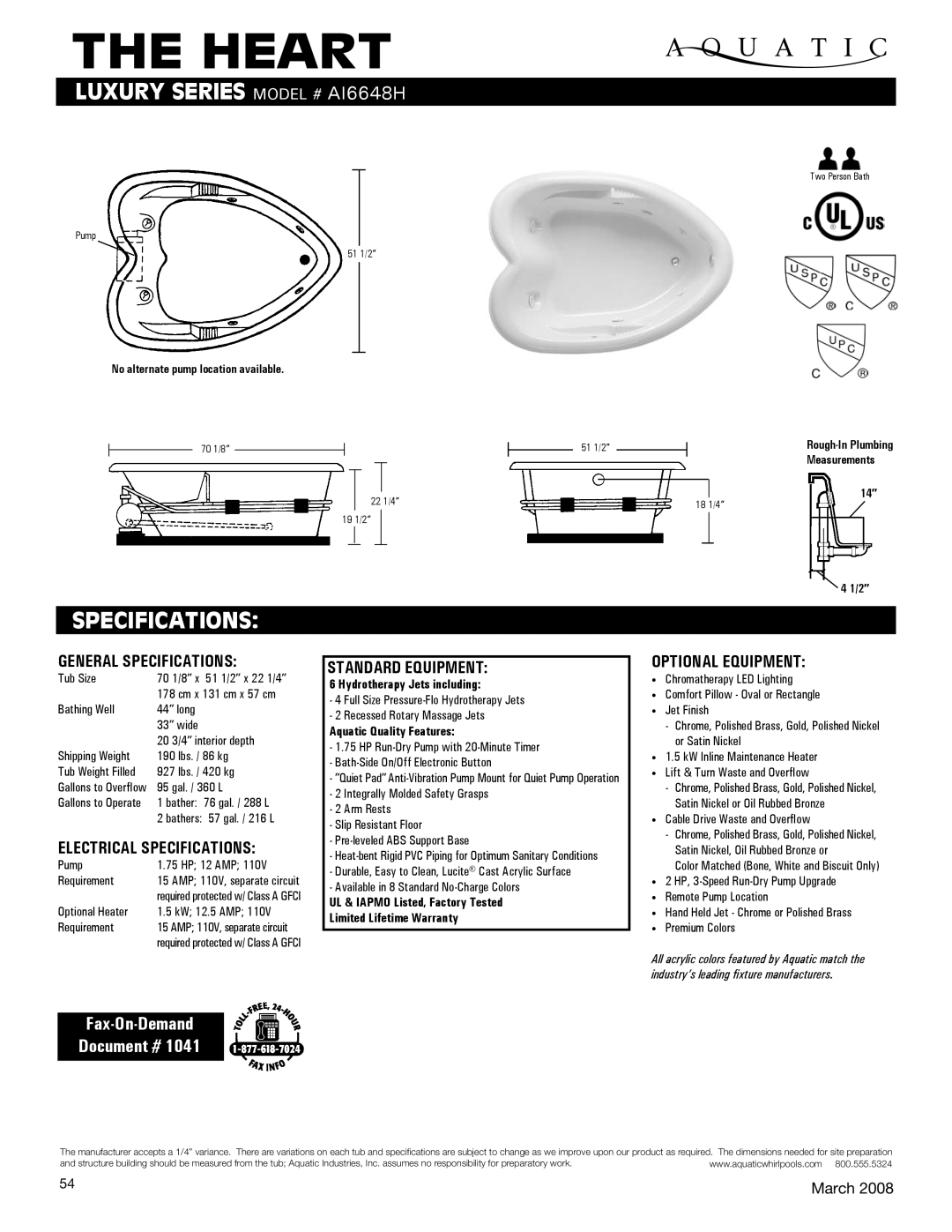

Aquatic AI6648H specifications The Heart, luxury series Model # ai6648H, Fax-On-Demand Document #

The Heart

luxury series Model # ai6648H

Two Person Bath

Pump

51 1/2”

No alternate pump location available.

70 1/8”

SPECIFICATIONS:

51 1/2”

221/4”

19 1/2”

Rough-In Plumbing

Measurements

14”

18 1/4”

4 1/2”

General Specifications:

Tub Size	70 1/8” x	51 1/2” x 22 1/4”
	178 cm x 131 cm x 57 cm
Bathing Well	44” long
	33” wide
	20 3/4” interior depth
Shipping Weight	190 lbs. / 86 kg
Tub Weight Filled	927 lbs. / 420 kg
Gallons to Overflow	95 gal. / 360 L
Gallons to Operate	1 bather:	76 gal. / 288 L
	2 bathers:	57 gal. / 216 L

Electrical Specifications:

Pump	1.75 HP; 12 AMP; 110V
Requirement	15 AMP; 110V, separate circuit
	required protected w/ Class A GFCI
Optional Heater	1.5 kW; 12.5 AMP; 110V
Requirement	15 AMP; 110V, separate circuit
	required protected w/ Class A GFCI

Standard equipment:

6 Hydrotherapy Jets including:

-4 Full Size Pressure-Flo Hydrotherapy Jets

-2 Recessed Rotary Massage Jets

Aquatic Quality Features:

-1.75 HP Run-Dry Pump with 20-Minute Timer

-Bath-side On/Off Electronic Button

-”Quiet Pad” anti-vibration pump mount for quiet pump operation

-2 Integrally Molded Safety Grasps

-2 Arm Rests

-Slip Resistant Floor

-Pre-leveled ABS Support Base

-Heat-bent rigid PVC piping for optimum sanitary conditions

-Durable, easy to clean, Lucite® Cast Acrylic Surface

-available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested

Limited Lifetime Warranty

optional equipment:

•Chromatherapy LED Lighting

•Comfort Pillow - Oval or Rectangle

•Jet Finish

-Chrome, Polished Brass, Gold, Polished Nickel or Satin Nickel

•1.5 kW Inline Maintenance Heater

•Lift & Turn Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel or Oil Rubbed Bronze

•Cable Drive Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel, Oil Rubbed Bronze or

Color Matched (Bone, White and Biscuit only)

•2 HP, 3-Speed Run-Dry Pump Upgrade

•Remote Pump Location

•Hand Held Jet - Chrome or Polished Brass

•Premium colors

All acrylic colors featured by Aquatic match the industry’s leading fixture manufacturers.

Fax-On-Demand

Document # 1041

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324

54 March 2008
