Symphony 3

SYMPHONY SERIEs Model # ai7236SY / ai7236sYTO (Tub Only)

Deck Width

1 1/2”

3

1

2

16 1/2”

16 1/2”

44”

72”

36”

36”















































22 1/2”





































19 1/2”

21”

















































Rough-In Plumbing Measurements

12”

5 1/4”

SPECIFICATIONS:

General Specifications:

Tub Size

72” x 36” x 22 1/2”



183 cm x 91 cm x 57 cm

Bathing Well

44” long



16

1/2” wide



19

3/4” interior depth

Maximum Water Depth

15

1/2”

Shipping Weight

169 lbs. / 77 kg

Tub Weight Filled

640 lbs. / 290 kg

Tub Only Weight

124 lbs. / 56 kg

Gallons to Overflow

62 gal. / 235 L

Gallons to Operate

52 gal. / 197 L

Electrical Specifications:

Pump

.80 HP; 5.5 AMP; 110V

Requirement

15 AMP; 110V, separate circuit



required protected w/ Class A GFCI

Standard equipment:

6 Hydrotherapy Jets including:

-2 Spinning Back Jets

-4 Directional Jets

Aquatic Quality Features:

-.80 HP Run-Dry Pump

-Bath-side On/Off Air Button

-”Quiet Pad” anti-vibration pump mount for quiet pump operation

-Heat-bent rigid PVC piping for optimum sanitary conditions

-2 Arm Rests

-Color Matched Trim and Jets (Select Colors)

-Slip Resistant Floor

-Durable, easy to clean, Lucite® Cast Acrylic Surface

-Available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested

Limited 10 Year Warranty

optional equipment:

Comfort Pillow--Oval or Rectangle

Bolt-On Grab Bars

-White, Biscuit, Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel or Oil Rubbed Bronze

1.5 kW Inline Maintenance Heater (Pump Options 1, 2, 3)

Lift & Turn Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel or Oil Rubbed Bronze

Cable Drive Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel, Oil Rubbed Bronze or

Color Matched (Bone, White and Biscuit only)

Factory Installed Rigid ABS Tile Flange

Optional Pump Location

Color Matched Acrylic Skirt

All acrylic colors featured by Aquatic match the industry’s leading fixture manufacturers.

Fax-On-Demand

Document # 1271

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.

www.aquaticwhirlpools.com 800.555.5324

130

February 2008

Page 1

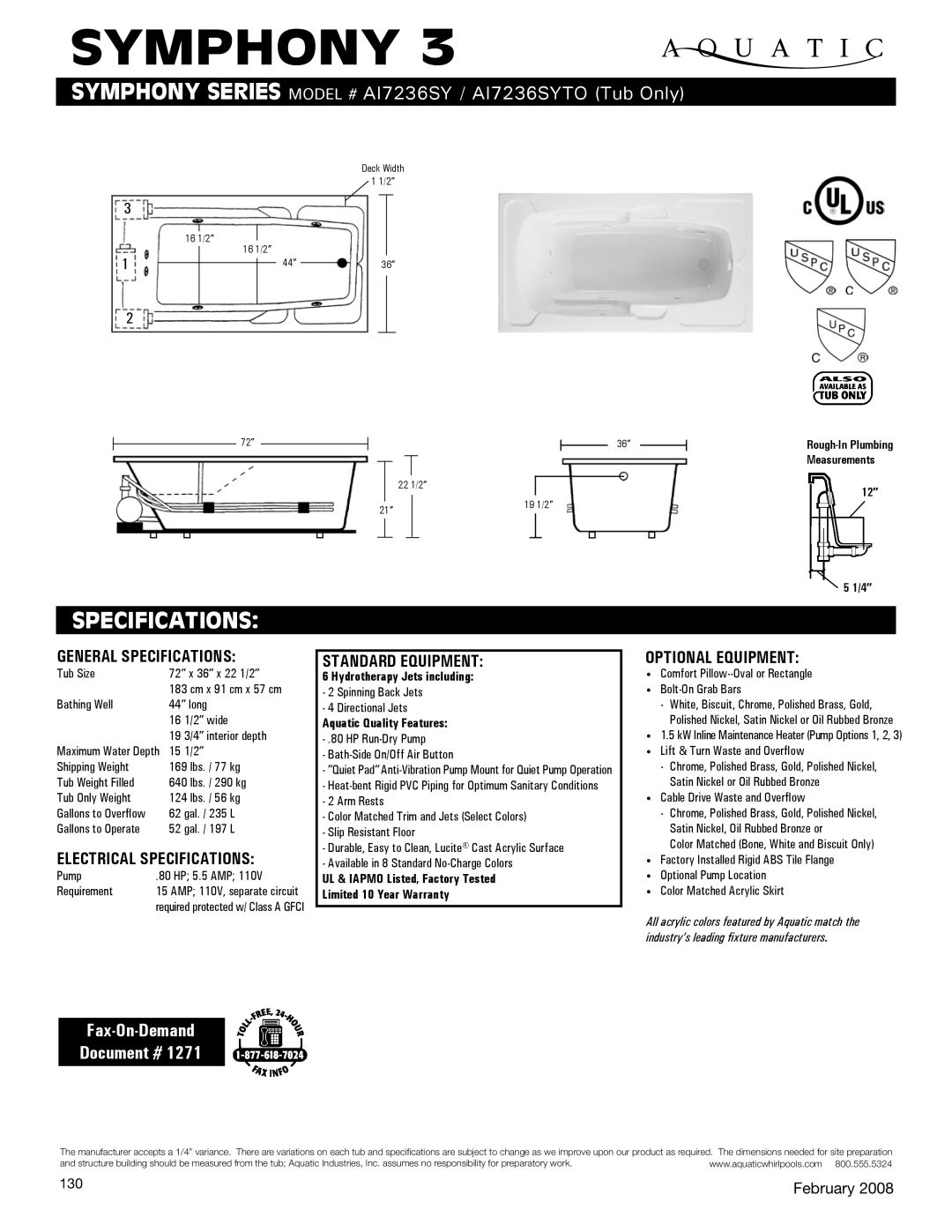

Image 1
