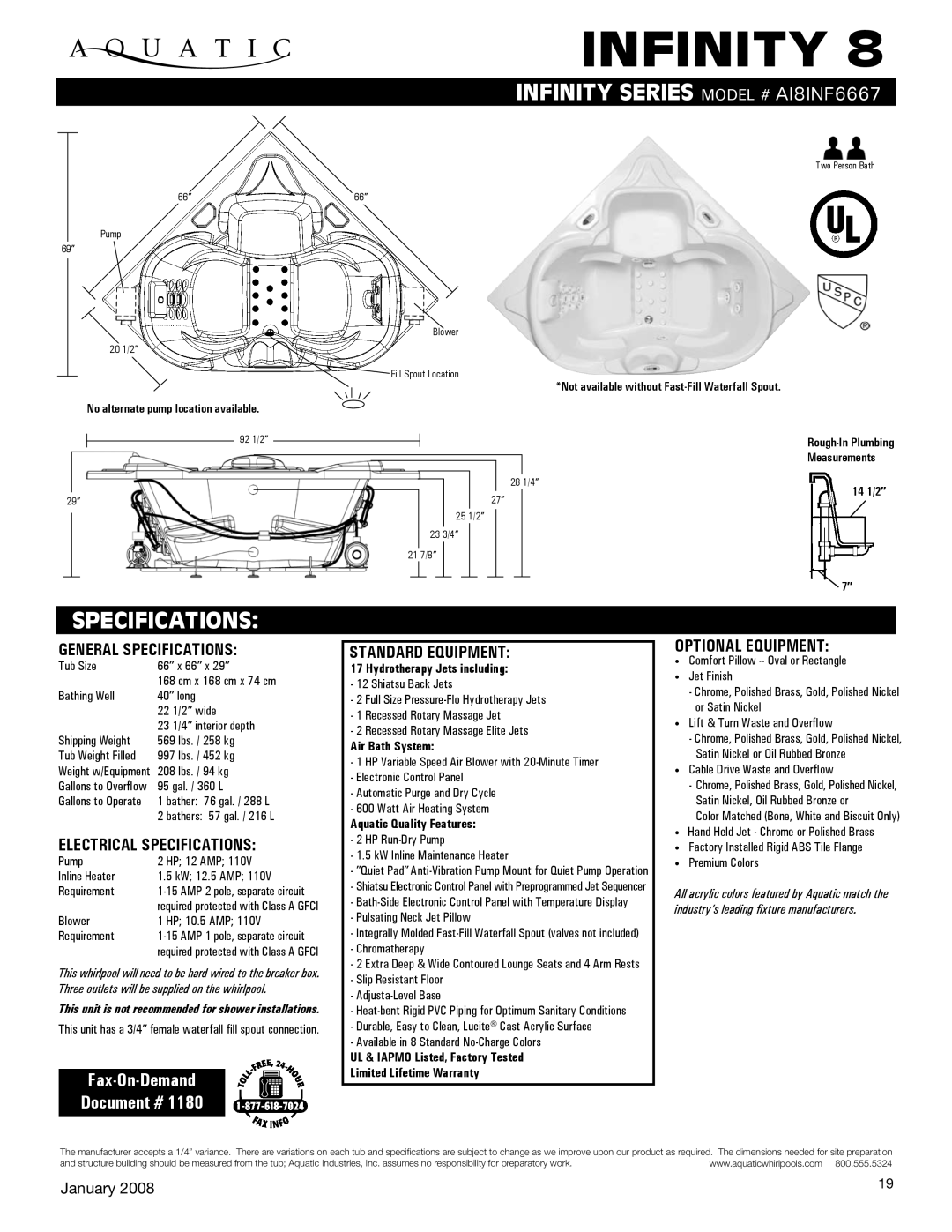

infinity 8

infinity series model # AI8INF6667

Two Person Bath

66”66”

Pump

69”

Blower

20 1/2”

Fill Spout Location

*Not available without Fast-Fill Waterfall Spout. No alternate pump location available.

92 1/2”

28 1/4”

29” 27”

25 1/2”

23 3/4”

21 7/8”

Rough-In Plumbing Measurements

14 1/2”

7”

SPECIFICATIONS:

General Specifications:

Tub Size	66” x 66” x 29”
	168 cm x 168 cm x 74 cm
Bathing Well	40” long
	22 1/2” wide
	23 1/4” interior depth
Shipping Weight	569 lbs. / 258 kg
Tub Weight Filled	997 lbs. / 452 kg
Weight w/Equipment	208 lbs. / 94 kg
Gallons to Overflow	95 gal. / 360 L
Gallons to Operate	1 bather:	76 gal. / 288 L
	2 bathers:	57 gal. / 216 L

Electrical Specifications:

Pump	2 HP; 12 AMP; 110V
Inline Heater	1.5 kW; 12.5 AMP; 110V
Requirement	1-15 AMP 2 pole, separate circuit
	required protected with Class A GFCI
Blower	1 HP; 10.5 AMP; 110V
Requirement	1-15 AMP 1 pole, separate circuit
	required protected with Class A GFCI

This whirlpool will need to be hard wired to the breaker box. Three outlets will be supplied on the whirlpool.

This unit is not recommended for shower installations.

This unit has a 3/4” female waterfall fill spout connection.

Fax-On-Demand

Document # 1180

Standard equipment:

17 Hydrotherapy Jets including:

-12 Shiatsu Back Jets

-2 Full Size Pressure-Flo Hydrotherapy Jets

-1 Recessed Rotary Massage Jet

-2 Recessed Rotary Massage Elite Jets

Air Bath System:

-1 HP Variable Speed Air Blower with 20-Minute Timer

-Electronic Control Panel

-Automatic Purge and Dry Cycle

-600 Watt Air Heating System

Aquatic Quality Features:

-2 HP Run-Dry Pump

-1.5 kW Inline Maintenance Heater

-”Quiet Pad” anti-vibration pump mount for quiet pump operation

-Shiatsu Electronic Control Panel with Preprogrammed Jet Sequencer

-Bath-side Electronic Control Panel with Temperature Display

-Pulsating Neck Jet Pillow

-Integrally Molded Fast-Fill Waterfall Spout (valves not included)

-Chromatherapy

-2 Extra Deep & Wide Contoured Lounge Seats and 4 Arm Rests

-Slip Resistant Floor

-Adjusta-Level Base

-Heat-bent rigid PVC piping for optimum sanitary conditions

-Durable, easy to clean, Lucite® Cast Acrylic Surface

-Available in 8 Standard No-Charge Colors

UL & IAPMO Listed, Factory Tested

Limited Lifetime Warranty

optional equipment:

•Comfort Pillow -- Oval or Rectangle

•Jet Finish

-Chrome, Polished Brass, Gold, Polished Nickel or Satin Nickel

•Lift & Turn Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel or Oil Rubbed Bronze

•Cable Drive Waste and Overflow

-Chrome, Polished Brass, Gold, Polished Nickel, Satin Nickel, Oil Rubbed Bronze or

Color Matched (Bone, White and Biscuit only)

•Hand Held Jet - Chrome or Polished Brass

•Factory Installed Rigid ABS Tile Flange

•Premium colors

All acrylic colors featured by Aquatic match the industry’s leading fixture manufacturers.

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation

and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. www.aquaticwhirlpools.com 800.555.5324
