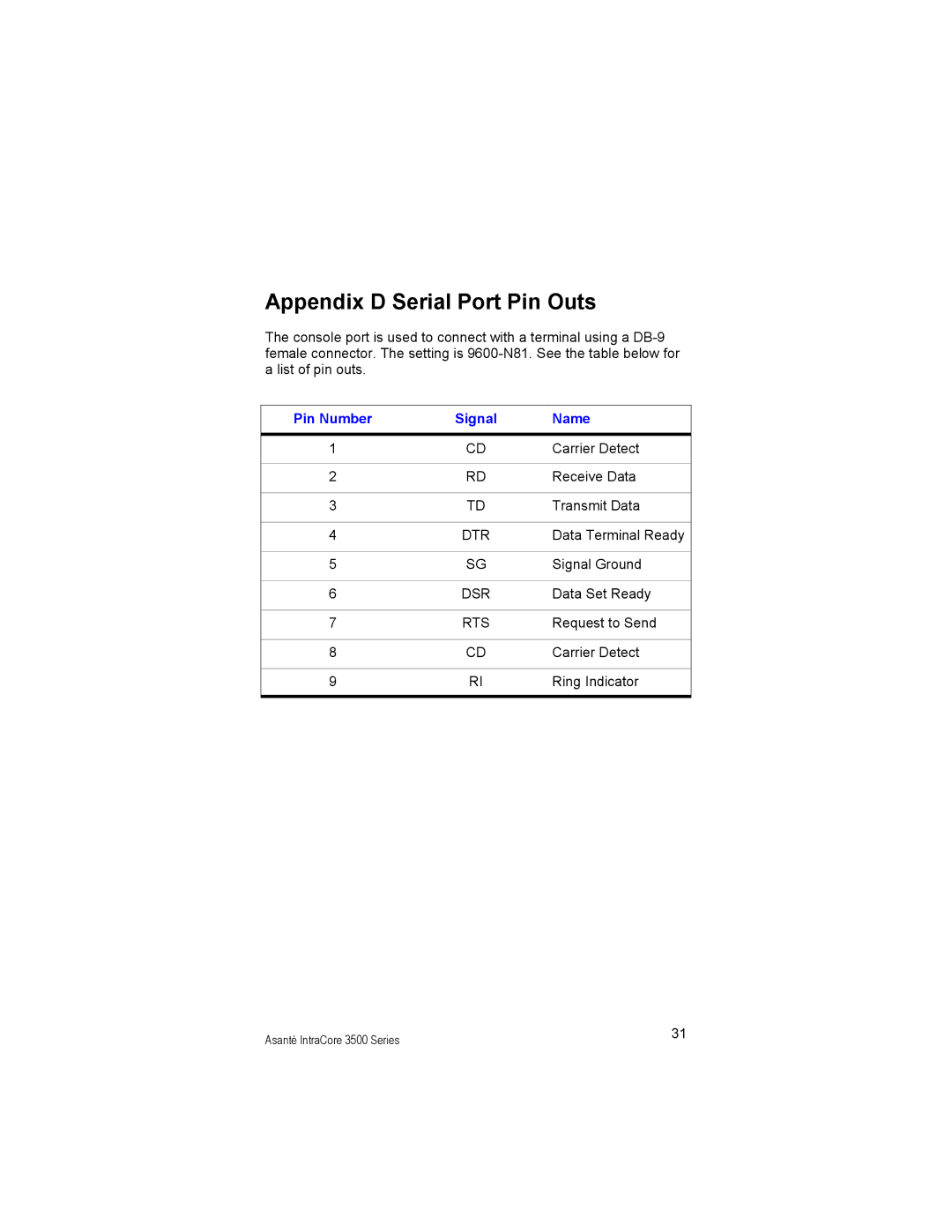

Appendix D Serial Port Pin Outs
The console port is used to connect with a terminal using a
Pin Number | Signal | Name |
|
|
|
1 | CD | Carrier Detect |
|
|
|
2 | RD | Receive Data |
|
|
|
3 | TD | Transmit Data |
|
|
|
4 | DTR | Data Terminal Ready |
|
|
|
5 | SG | Signal Ground |
|
|
|
6 | DSR | Data Set Ready |
|
|
|
7 | RTS | Request to Send |
|
|
|
8 | CD | Carrier Detect |
|
|
|
9 | RI | Ring Indicator |
|
|
|
Asanté IntraCore 3500 Series | 31 |
|
