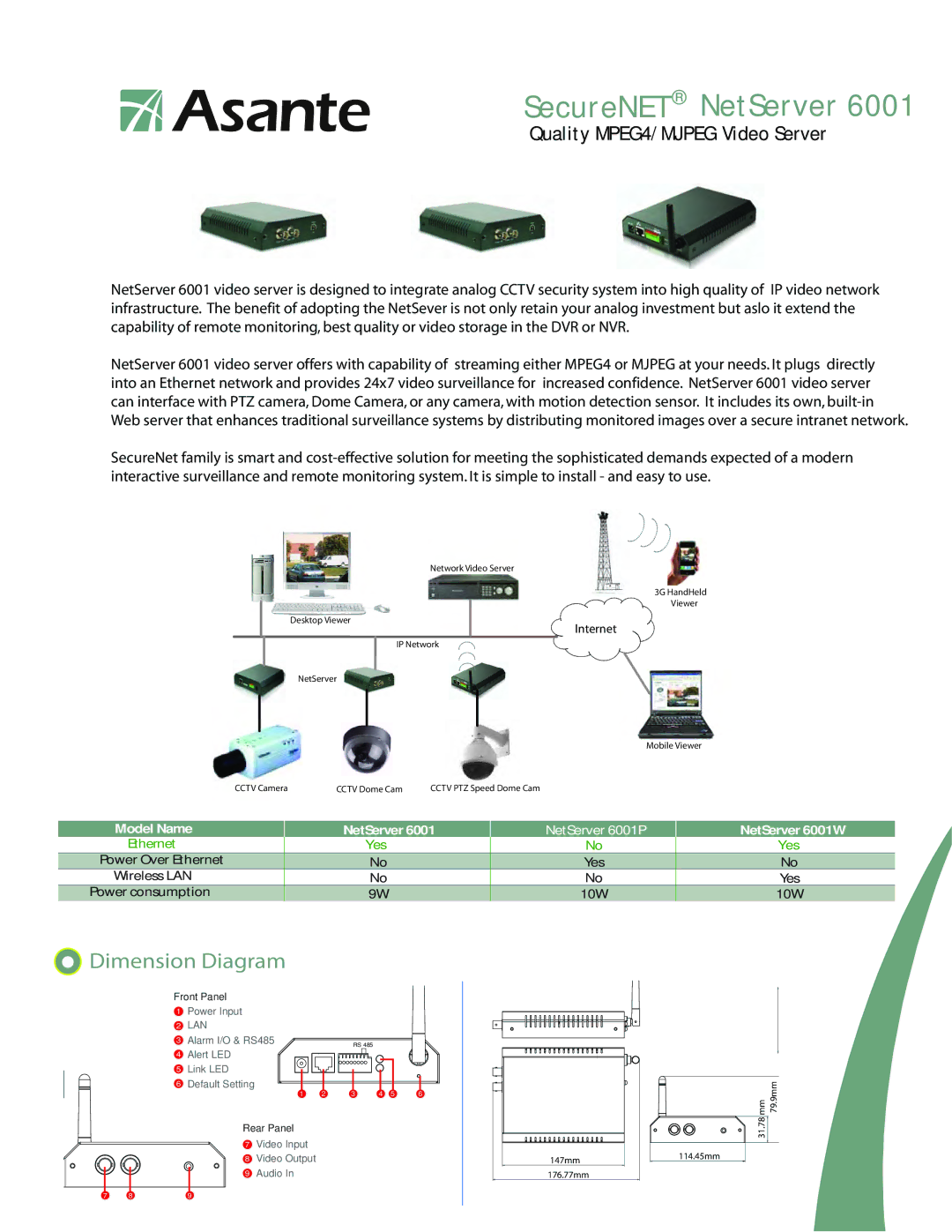

SecureNET® NetServer 6001
Quality MPEG4/MJPEG Video Server
NetServer 6001 video server is designed to integrate analog CCTV security system into high quality of IP video network infrastructure. The benefit of adopting the NetSever is not only retain your analog investment but aslo it extend the capability of remote monitoring, best quality or video storage in the DVR or NVR.
NetServer 6001 video server offers with capability of streaming either MPEG4 or MJPEG at your needs. It plugs directly into an Ethernet network and provides 24x7 video surveillance for increased confidence. NetServer 6001 video server can interface with PTZ camera, Dome Camera, or any camera, with motion detection sensor. It includes its own,
SecureNet family is smart and
Network Video Server
Desktop Viewer
IP Network
NetServer
3G HandHeld
Viewer
Internet
|
|
|
|
|
| Mobile Viewer | |
CCTV Camera | CCTV Dome Cam | CCTV PTZ Speed Dome Cam |
|
|
| ||
|
|
|
|
|
|
| |
Model Name | NetServer 6001 | NetServer 6001P |
| NetServer 6001W | |||
Ethernet |
| Yes |
|
| No |
| Yes |
Power Over Ethernet |
| No |
|
| Yes |
| No |
Wireless LAN |
| No |
|
| No |
| Yes |
Power consumption |
| 9W |
|
| 10W |
| 10W |
Dimension Diagram
Front Panel |
|
|
|
|
|
|
|
|
|
| |
1 | Power Input |
|
|
|
|
|
|
|
|
|
|
2 | LAN |
|
|
|
|
|
|
|
|
|
|
3 | Alarm I/O & RS485 |
|
| RS 485 |
|
|
|
|
| ||
4 | Alert LED |
|
|
|
|
|
|
|
|
|
|
5 | Link LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
6 | Default Setting |
|
|
|
|
|
| 5 |
|
|
|
|
| 1 | 2 | 3 | 4 | 6 |
| ||||
| Rear Panel |
|
|
|
|
|
|
|
| ||
| 7 | Video Input |
|
|
|
|
|
|
|
| |
| 8 | Video Output |
|
|
|
|
|
| 147mm | 114.45mm | |
| 9 | Audio In |
|
|
|
|
|
| 176.77mm |
| |
7 | 8 | 9 |
mm | 79.9mm |
31.78 |
|
