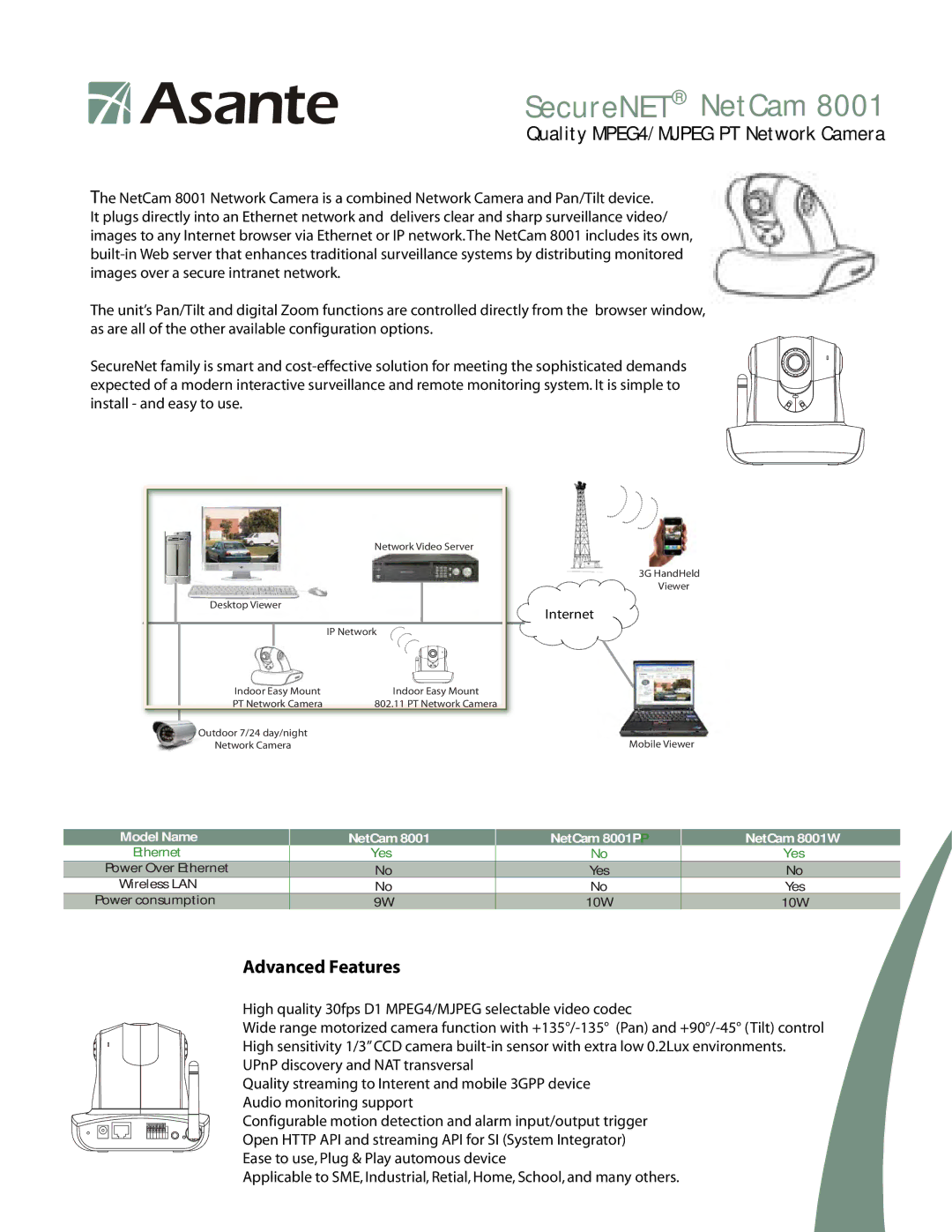

SecureNET® NetCam 8001

Quality MPEG4/MJPEG PT Network Camera

The NetCam 8001 Network Camera is a combined Network Camera and Pan/Tilt device. It plugs directly into an Ethernet network and delivers clear and sharp surveillance video/ images to any Internet browser via Ethernet or IP network.The NetCam 8001 includes its own, built-in Web server that enhances traditional surveillance systems by distributing monitored images over a secure intranet network.

The unit’s Pan/Tilt and digital Zoom functions are controlled directly from the browser window, as are all of the other available configuration options.

SecureNet family is smart and cost-effective solution for meeting the sophisticated demands expected of a modern interactive surveillance and remote monitoring system. It is simple to install - and easy to use.

	Network Video Server
Desktop Viewer
	IP Network
Indoor Easy Mount	Indoor Easy Mount
PT Network Camera	802.11 PT Network Camera
Outdoor 7/24 day/night
Network Camera

3G HandHeld

Viewer

Internet

Mobile Viewer

Model Name	NetCam 8001	NetCam 8001PP	NetCam 8001W
Ethernet	Yes	No	Yes
Power Over Ethernet	No	Yes	No
Wireless LAN	No	No	Yes
Power consumption	9W	10W	10W

Advanced Features

		High quality 30fps D1 MPEG4/MJPEG selectable video codec
		Wide range motorized camera function with +135°/-135° (Pan) and +90°/-45° (Tilt) control
		High sensitivity 1/3” CCD camera built-in sensor with extra low 0.2Lux environments.
		UPnP discovery and NAT transversal
		Quality streaming to Interent and mobile 3GPP device
		Audio monitoring support
		Configurable motion detection and alarm input/output trigger
6	8	Open HTTP API and streaming API for SI (System Integrator)
		Ease to use, Plug & Play automous device

Applicable to SME, Industrial, Retial, Home, School, and many others.
