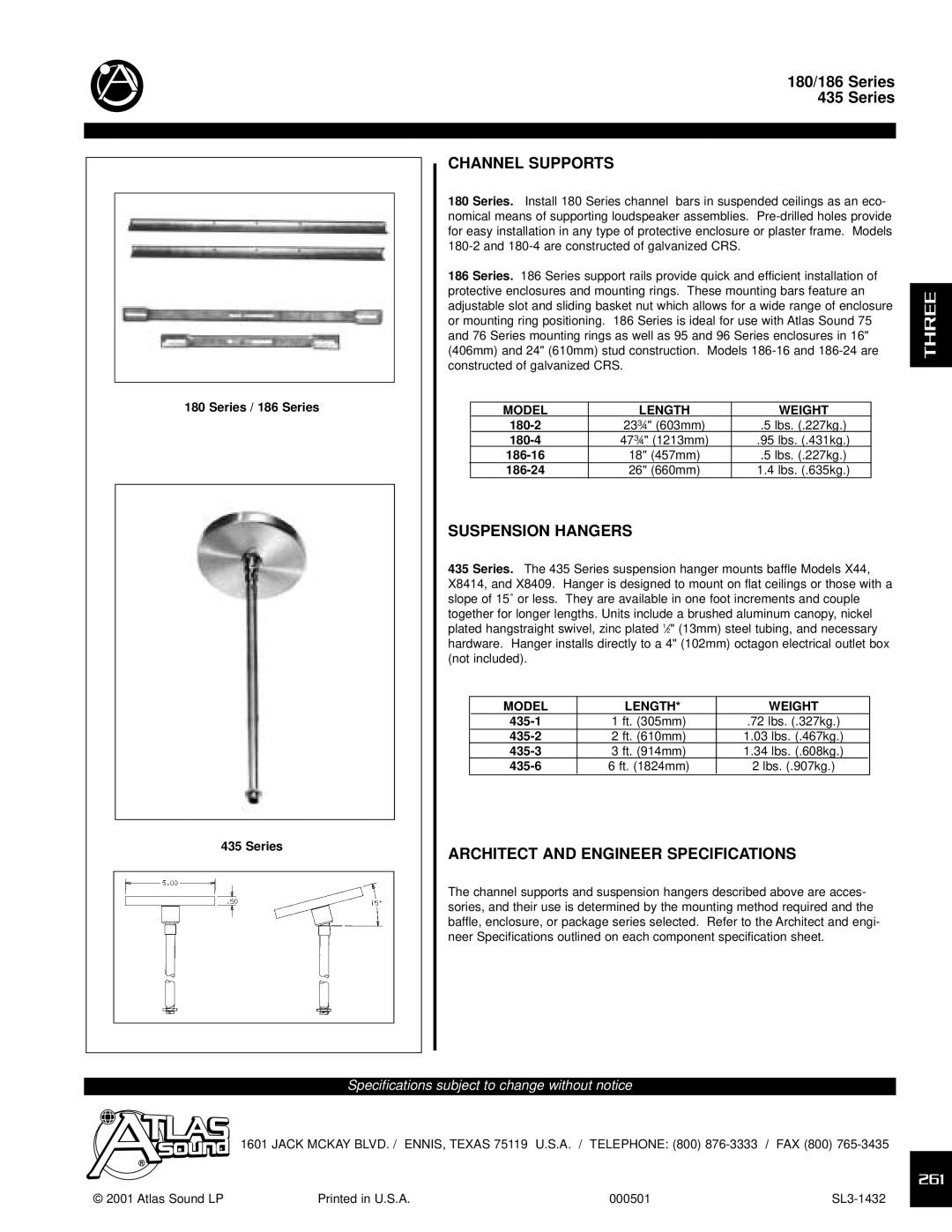

180/186 Series 435 Series

180 Series / 186 Series

435 Series

CHANNEL SUPPORTS

180 Series. Install 180 Series channel bars in suspended ceilings as an eco- nomical means of supporting loudspeaker assemblies. Pre-drilled holes provide for easy installation in any type of protective enclosure or plaster frame. Models 180-2 and 180-4 are constructed of galvanized CRS.

186 Series. 186 Series support rails provide quick and efficient installation of protective enclosures and mounting rings. These mounting bars feature an adjustable slot and sliding basket nut which allows for a wide range of enclosure or mounting ring positioning. 186 Series is ideal for use with Atlas Sound 75 and 76 Series mounting rings as well as 95 and 96 Series enclosures in 16" (406mm) and 24" (610mm) stud construction. Models 186-16 and 186-24 are constructed of galvanized CRS.

MODEL

LENGTH

WEIGHT

180-2

2334" (603mm)

.5 lbs. (.227kg.)

180-4

4734" (1213mm)

.95 lbs. (.431kg.)

186-16

18" (457mm)

.5 lbs. (.227kg.)

186-24

26" (660mm)

1.4 lbs. (.635kg.)

SUSPENSION HANGERS

435 Series. The 435 Series suspension hanger mounts baffle Models X44, X8414, and X8409. Hanger is designed to mount on flat ceilings or those with a slope of 15˚ or less. They are available in one foot increments and couple together for longer lengths. Units include a brushed aluminum canopy, nickel plated hangstraight swivel, zinc plated 12" (13mm) steel tubing, and necessary hardware. Hanger installs directly to a 4" (102mm) octagon electrical outlet box (not included).





MODEL

LENGTH*

WEIGHT





435-1

1 ft. (305mm)

.72 lbs. (.327kg.)



435-2

2 ft. (610mm)

1.03 lbs. (.467kg.)

435-3

3 ft. (914mm)

1.34 lbs. (.608kg.)

435-6

6 ft. (1824mm)

2 lbs. (.907kg.)

ARCHITECT AND ENGINEER SPECIFICATIONS

The channel supports and suspension hangers described above are acces- sories, and their use is determined by the mounting method required and the baffle, enclosure, or package series selected. Refer to the Architect and engi- neer Specifications outlined on each component specification sheet.

THREE

Specifications subject to change without notice

1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A. / TELEPHONE: (800) 876-3333 /FAX (800) 765-3435

261

© 2001 Atlas Sound LP

Printed in U.S.A.

000501

SL3-1432
