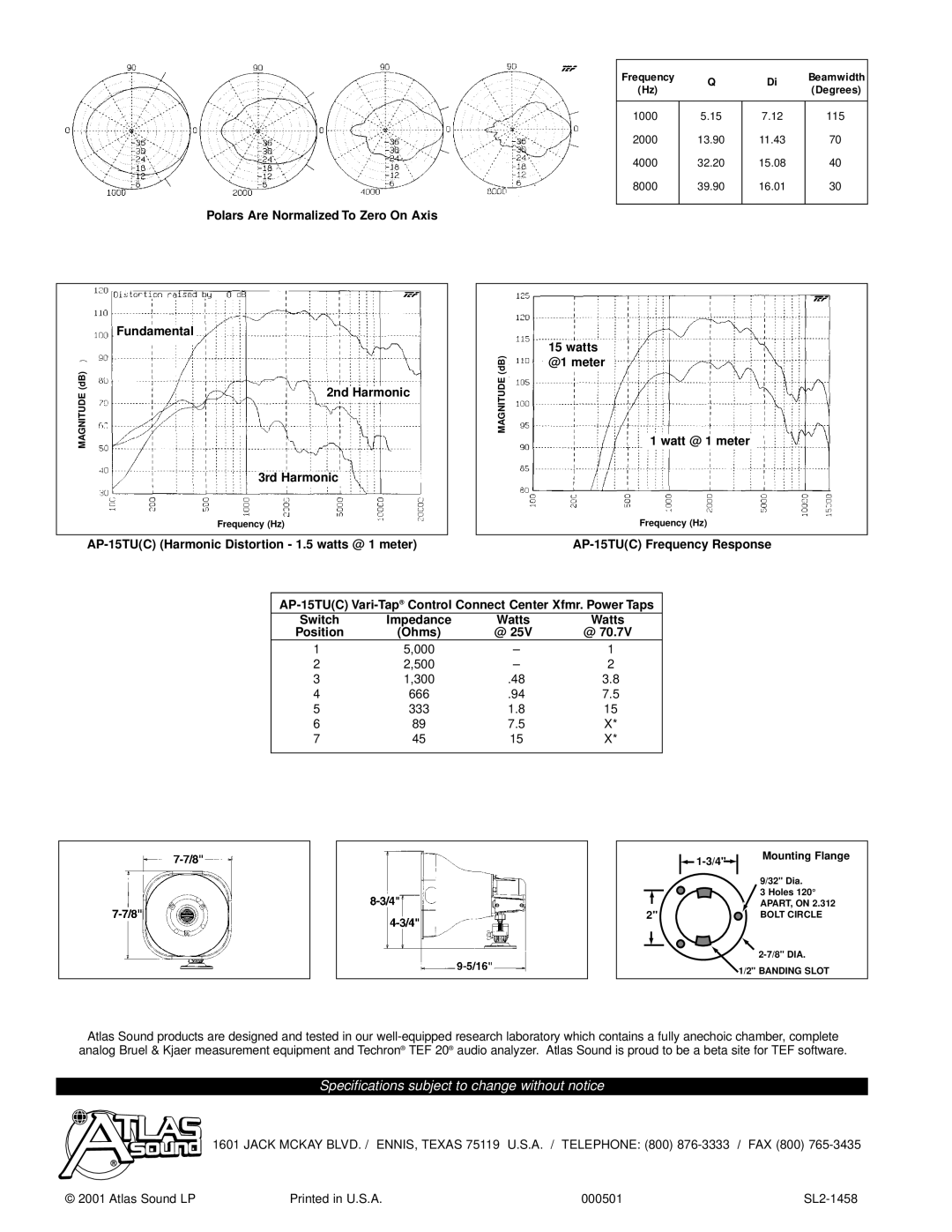

Polars Are Normalized To Zero On Axis

Fundamental

(dB)





2nd Harmonic

MAGNITUDE













3rd Harmonic

Frequency (Hz)

AP-15TU(C) (Harmonic Distortion - 1.5 watts @ 1 meter)

Frequency

Q

Di

Beamwidth

(Hz)

(Degrees)













1000

5.15

7.12

115

2000

13.90

11.43

70

4000

32.20

15.08

40

8000

39.90

16.01

30









MAGNITUDE (dB)

15 watts

@1 meter





1 watt @ 1 meter

Frequency (Hz)

AP-15TU(C) Frequency Response

AP-15TU(C) Vari-Tap®Control Connect Center Xfmr. Power Taps

Switch

Impedance

Watts

Watts

Position

(Ohms)

@ 25V

@ 70.7V

1

5,000

1

2

2,500

2

3

1,300

.48

3.8

4

666

.94

7.5

5

333

1.8

15

6

89

7.5

X*

7

45

15

X*



1-3/4"

Mounting Flange









9/32" Dia.





3 Holes 120°

2"



APART, ON 2.312



BOLT CIRCLE





2-7/8" DIA.





1/2" BANDING SLOT

Atlas Sound products are designed and tested in our well-equipped research laboratory which contains a fully anechoic chamber, complete analog Bruel & Kjaer measurement equipment and Techron® TEF 20® audio analyzer. Atlas Sound is proud to be a beta site for TEF software.

Specifications subject to change without notice

1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A. / TELEPHONE: (800) 876-3333 /FAX (800) 765-3435

© 2001 Atlas Sound LP

Printed in U.S.A.

000501

SL2-1458

Page 2
Image 2
Atlas Sound AP-15TUC Polars Are Normalized To Zero On Axis Fundamental, 3rd Harmonic, Watts, @1 meter, Watt @ 1 meter

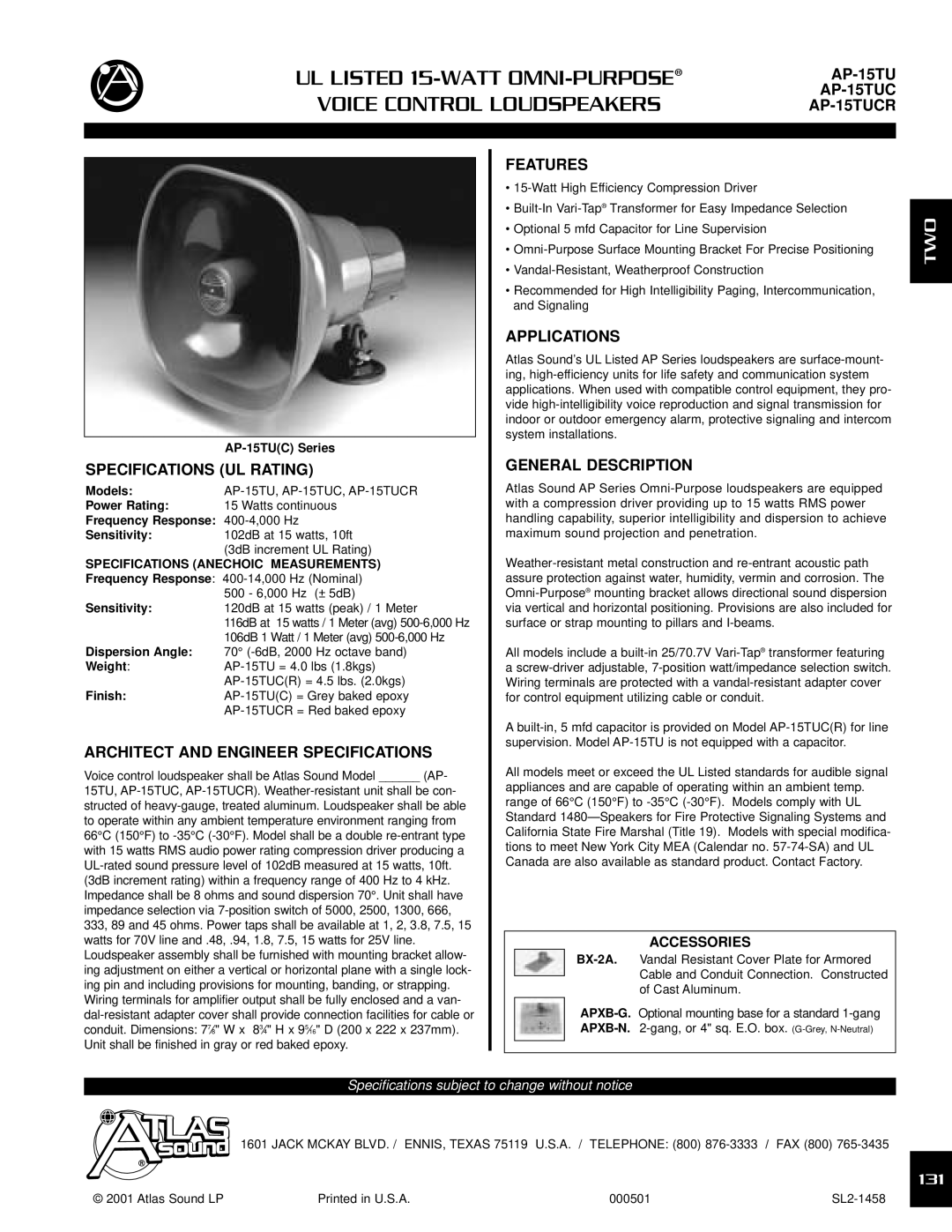

AP-15TUC, AP-15TUCR, AP-15TU specifications

The Atlas Sound AP-15TUC, AP-15TUCR, and AP-15TU are standout models in the realm of professional audio solutions, specifically designed for high-quality sound distribution in various environments. These versatile speakers are ideal for applications ranging from commercial installations to educational settings and entertainment venues.

Each of these models boasts advanced features and technologies that underpin their performance. The AP-15TUC is particularly notable for its robust design and superior audio quality. It incorporates a 15-inch woofer that delivers deep, powerful bass, while a 1-inch high-frequency driver ensures clarity in the upper ranges. This combination allows the speaker to cover a wide frequency response, making it suitable for a diverse array of sound reinforcement tasks.

The AP-15TUCR model elevates the user experience with its edge in connectivity options. It comes with a rotary volume control and a built-in 70V transformer, enabling seamless integration into existing sound systems. This transformer allows for distributed audio across extensive distances, making it a preferred choice for large venues where wire runs need to cover considerable ground without significant loss of quality.

Meanwhile, the AP-15TU model rounds out the lineup with its thoughtful design that prioritizes user-friendliness and efficiency. It features a durable cabinet made from high-grade materials, ensuring longevity and resistance to the rigors of frequent use. Additionally, the built-in speaker protection circuitry serves to prevent damage from excessive power, which is particularly important in demanding environments.

All three models are engineered for ease of installation and use. Their lightweight design allows for straightforward mounting options, while the versatility in their port design accommodates various placement strategies. With these attributes, the AP-15TUC, AP-15TUCR, and AP-15TU represent an exceptional combination of sound quality and operational functionality, positioning them as ideal choices for professionals looking to enhance their auditory environments.

In conclusion, the Atlas Sound AP-15TUC, AP-15TUCR, and AP-15TU deliver powerful performance, solid reliability, and user-friendly characteristics, making them essential tools in the toolkit of any audio professional. Whether for concert halls, conference rooms, or other demanding spaces, these speakers promise to elevate sound experiences to new heights.
