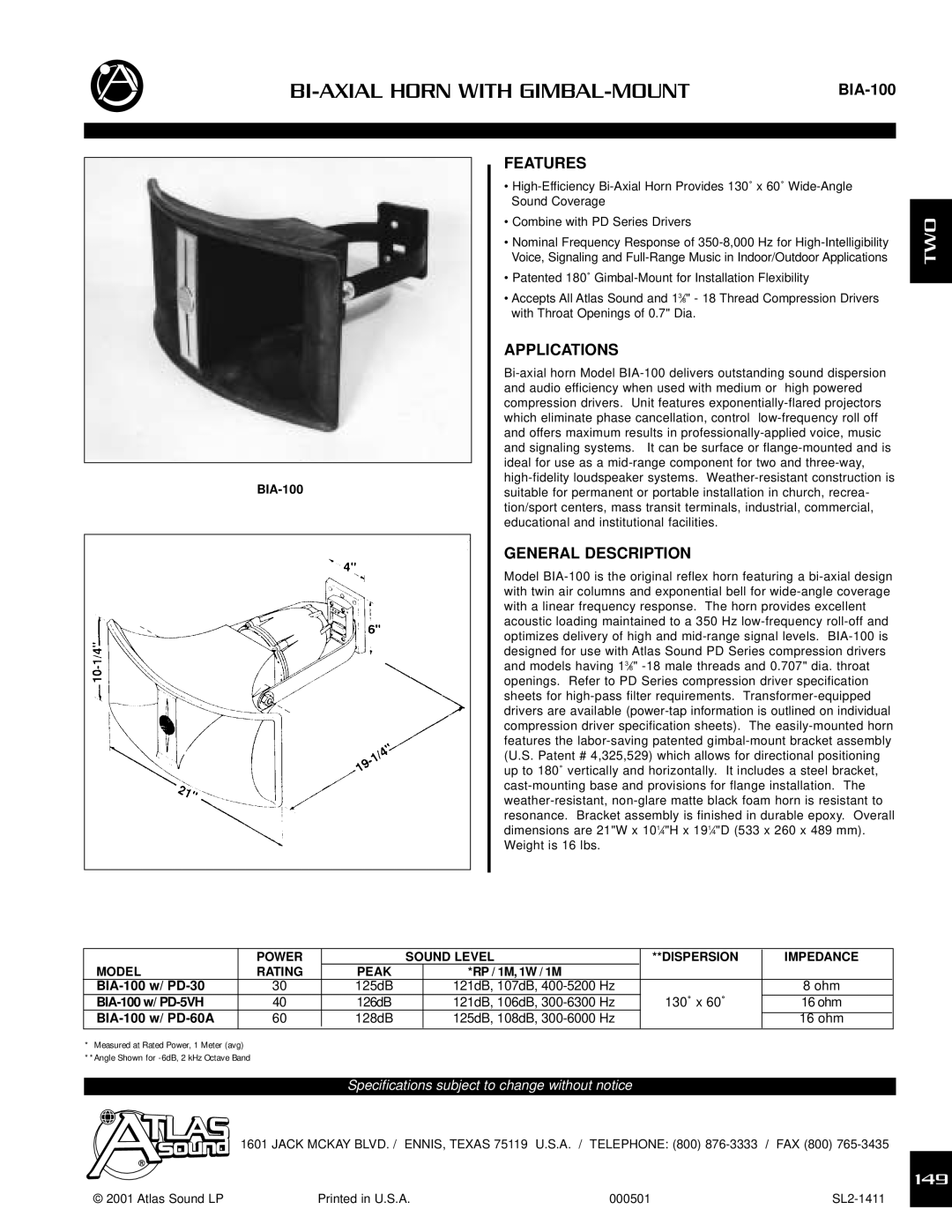

BI-AXIAL HORN WITH GIMBAL-MOUNT

BIA-100

BIA-100

FEATURES

High-Efficiency Bi-Axial Horn Provides 130˚ x 60˚ Wide-Angle Sound Coverage

Combine with PD Series Drivers

Nominal Frequency Response of 350-8,000 Hz for High-Intelligibility Voice, Signaling and Full-Range Music in Indoor/Outdoor Applications

Patented 180˚ Gimbal-Mount for Installation Flexibility

Accepts All Atlas Sound and 138" - 18 Thread Compression Drivers with Throat Openings of 0.7" Dia.

APPLICATIONS

Bi-axial horn Model BIA-100 delivers outstanding sound dispersion and audio efficiency when used with medium or high powered compression drivers. Unit features exponentially-flared projectors which eliminate phase cancellation, control low-frequency roll off and offers maximum results in professionally-applied voice, music and signaling systems. It can be surface or flange-mounted and is ideal for use as a mid-range component for two and three-way, high-fidelity loudspeaker systems. Weather-resistant construction is suitable for permanent or portable installation in church, recrea- tion/sport centers, mass transit terminals, industrial, commercial, educational and institutional facilities.

GENERAL DESCRIPTION

Model BIA-100 is the original reflex horn featuring a bi-axial design with twin air columns and exponential bell for wide-angle coverage with a linear frequency response. The horn provides excellent acoustic loading maintained to a 350 Hz low-frequency roll-off and optimizes delivery of high and mid-range signal levels. BIA-100 is designed for use with Atlas Sound PD Series compression drivers and models having 138" -18 male threads and 0.707" dia. throat openings. Refer to PD Series compression driver specification sheets for high-pass filter requirements. Transformer-equipped drivers are available (power-tap information is outlined on individual compression driver specification sheets). The easily-mounted horn features the labor-saving patented gimbal-mount bracket assembly (U.S. Patent # 4,325,529) which allows for directional positioning up to 180˚ vertically and horizontally. It includes a steel bracket, cast-mounting base and provisions for flange installation. The weather-resistant, non-glare matte black foam horn is resistant to resonance. Bracket assembly is finished in durable epoxy. Overall dimensions are 21"W x 1014"H x 1914"D (533 x 260 x 489 mm). Weight is 16 lbs.

TWO



POWER



SOUND LEVEL

**DISPERSION

IMPEDANCE

MODEL

RATING

PEAK



*RP / 1M, 1W / 1M











BIA-100 w/ PD-30

30

125dB



121dB, 107dB, 400-5200 Hz



8 ohm



BIA-100 w/ PD-5VH

40

126dB



121dB, 106dB, 300-6300 Hz

130˚ x 60˚

16 ohm

BIA-100 w/ PD-60A

60

128dB



125dB, 108dB, 300-6000 Hz











16 ohm





















*Measured at Rated Power, 1 Meter (avg) **Angle Shown for -6dB, 2 kHz Octave Band

Specifications subject to change without notice

1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A. / TELEPHONE: (800) 876-3333 /FAX (800) 765-3435

149

© 2001 Atlas Sound LP

Printed in U.S.A.

000501

SL2-1411

Page 1
