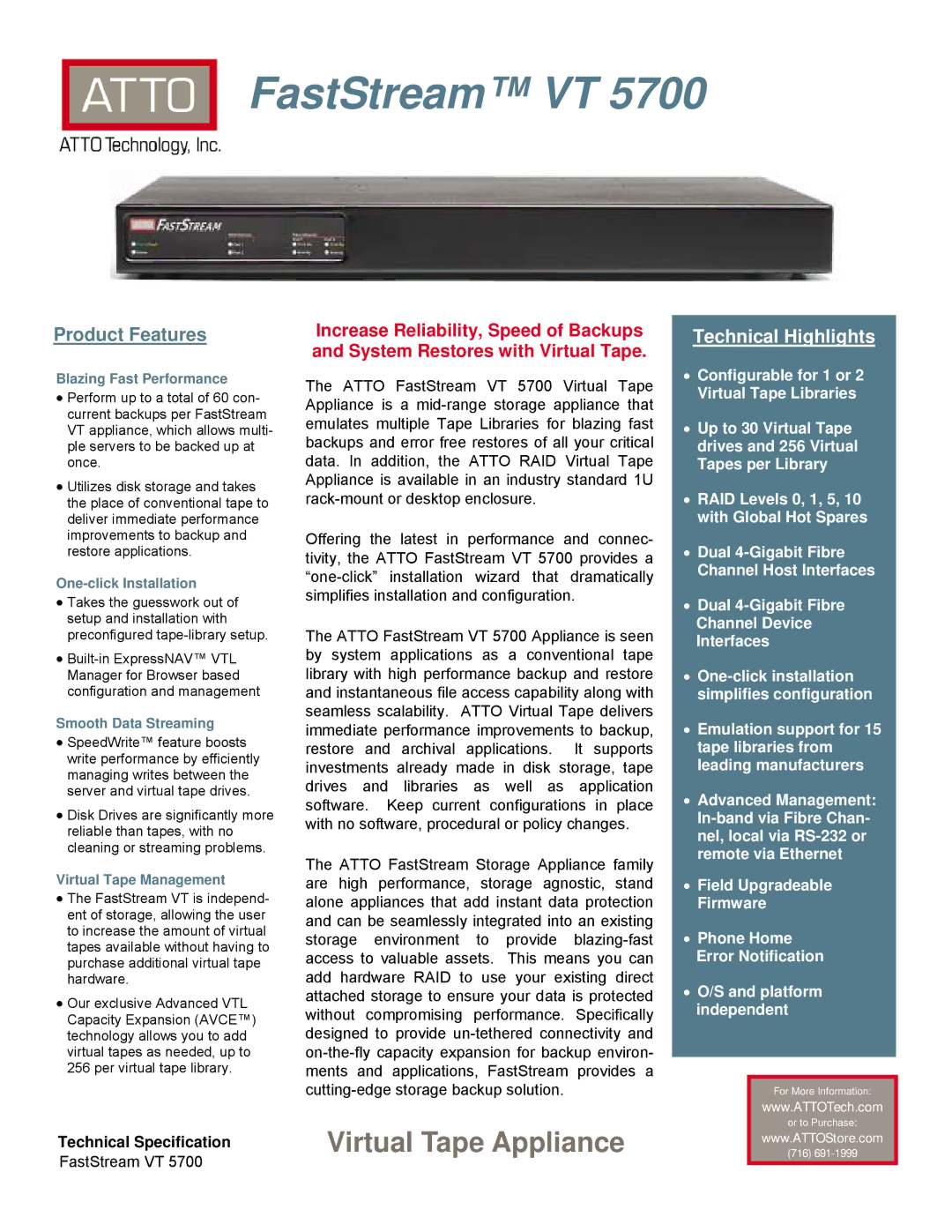

FastStream VT 5700

Virtual Tape Appliance

Technical Features



Virtual Tape Library

• Virtual Libraries Supported: 2



• Maximum Virtual Tape Drives per Library: 30



• Maximum Virtual Tapes per Library: 256



SCSI-3 Support



• All required tape and media changer commands supported





RAID Levels

• 0, 1, 5 and 10 (JBOD is also supported) with Global Hot Spares





Key Features

• RAID Rebuild with Tunable Rebuild Priority



Pre-configured Inquiry Strings for 15 Tape Libraries



• Advanced VTL Capacity Expansion (AVCE™) Technology



• Drive Initialization and Verification



• Drive Performance Metrics



• Can be shared in heterogeneous environments



• SpeedWrite™ Performance-enhancing Technology



• Field Upgradeable Firmware



• O/S independent operation



• Battery Backed Event Log



ECC Protected Memory



Phone Home Error Notification





Hardware Specifications



Fibre Channel Host Interface

• 4 Gigabit, auto-negotiates to 2/1 Gigabit devices



• Four Optical SFP (Small Form Factor Pluggable) Fibre Channel ports



• Full support for direct connect for F-port fabric switches



• Class 3 and Intermix ANSI Fibre Channel Specifications



• PLDA, public loop login (NL-ports) and fabric connect (N-port)



Full-duplex transmissions





Management Interface

RJ-45 connector for Ethernet management port



RS-232 serial header console port





Management



Local and Network Management

• ExpressNAVTM VTL manager browser-based user interface for remote



configuration, management and diagnostic capabilities



• Local diagnostics and configuration supported via CLI, Telnet and FTP



• Command line and menu-based ASCII text management access via the



Ethernet management port





Environmental & Physical Specifications



Dimensions

• 1.579” (1U) H x 16.494” W x 10.000” L





Operating Environment

• Temperature 5 - 40° C Humidity: 10 - 90% non-condensing





Storage Environment

• Temperature 0 - 40° C Humidity: 20 - 80% non-condensing





Power

• Input: 100-240VAC +/- 18%, 50/60 Hz





Airflow

• 11 CFM recommended Ambient air not to exceed 40° C





RoHS Compliant

• Yes





Ordering Information



Model Number

FSVT-5700-0R0





Accessories

• FC Cables: CBL-LCLC-R10 (10M LC-LC cables)





Technical Specification

FastStream VT 5700

Power Behind the Storage

For More Information:

www.ATTOTech.com

or to Purchase:

www.ATTOStore.com

(716) 691-1999

©2008 ATTO Technology, Inc. Specifications subject to change without notice.

Rev 2/08

Page 2
Image 2
ATTO Technology VT 5700 Technical Features, Hardware Specifications, Management, Environmental & Physical Specifications

VT 5700 specifications

ATTO Technology VT 5700 is a cutting-edge network adapter designed to meet the demanding needs of modern data centers and enterprises. This device is engineered to deliver high performance, reliability, and versatility, making it an ideal choice for a range of applications, including video production, data storage, and high-bandwidth computing environments.

One of the standout features of the VT 5700 is its support for multi-protocol connectivity. It is compatible with a variety of protocols including Fibre Channel and iSCSI, allowing organizations to seamlessly integrate the adapter into existing networks. This flexibility enables users to optimize their storage solutions while ensuring that they can take advantage of the latest technological advancements.

The VT 5700 also supports advanced features such as quad-port configurations and provides bandwidth options to handle heavy workloads. With its 10 Gigabit Ethernet capability, it allows for high-speed data transfers, significantly reducing latency and improving overall performance. This is particularly beneficial for applications involving large file transfers or real-time data processing.

One of the key technologies employed in the VT 5700 is its intelligent offload capabilities. This feature reduces the CPU load by offloading data processing tasks directly onto the adapter, enhancing system efficiency and performance. The adapter’s built-in functionality for TCP Segmentation Offload (TSO), Large Receive Offload (LRO), and Receive Side Scaling (RSS) enables better resource utilization and improved application performance.

Additionally, the VT 5700 offers enhanced security features that protect sensitive data in transit. Its support for data encryption protocols ensures that information remains secure, while advanced error-checking mechanisms help to maintain data integrity. This is crucial for industries that handle confidential information or require compliant data management practices.

In terms of compatibility, the VT 5700 is designed to work with a wide range of operating systems and platforms, ensuring that it can be easily integrated into different IT environments. The easy installation process and robust driver support contribute to its appeal, reducing the time and effort required for deployment.

In conclusion, the ATTO Technology VT 5700 is a powerful and versatile network adapter that combines high performance with advanced features. Its multi-protocol support, intelligent offload capabilities, and robust security ensure that it meets the needs of modern enterprise applications, making it a valuable asset for organizations looking to enhance their storage and networking efficiency.
