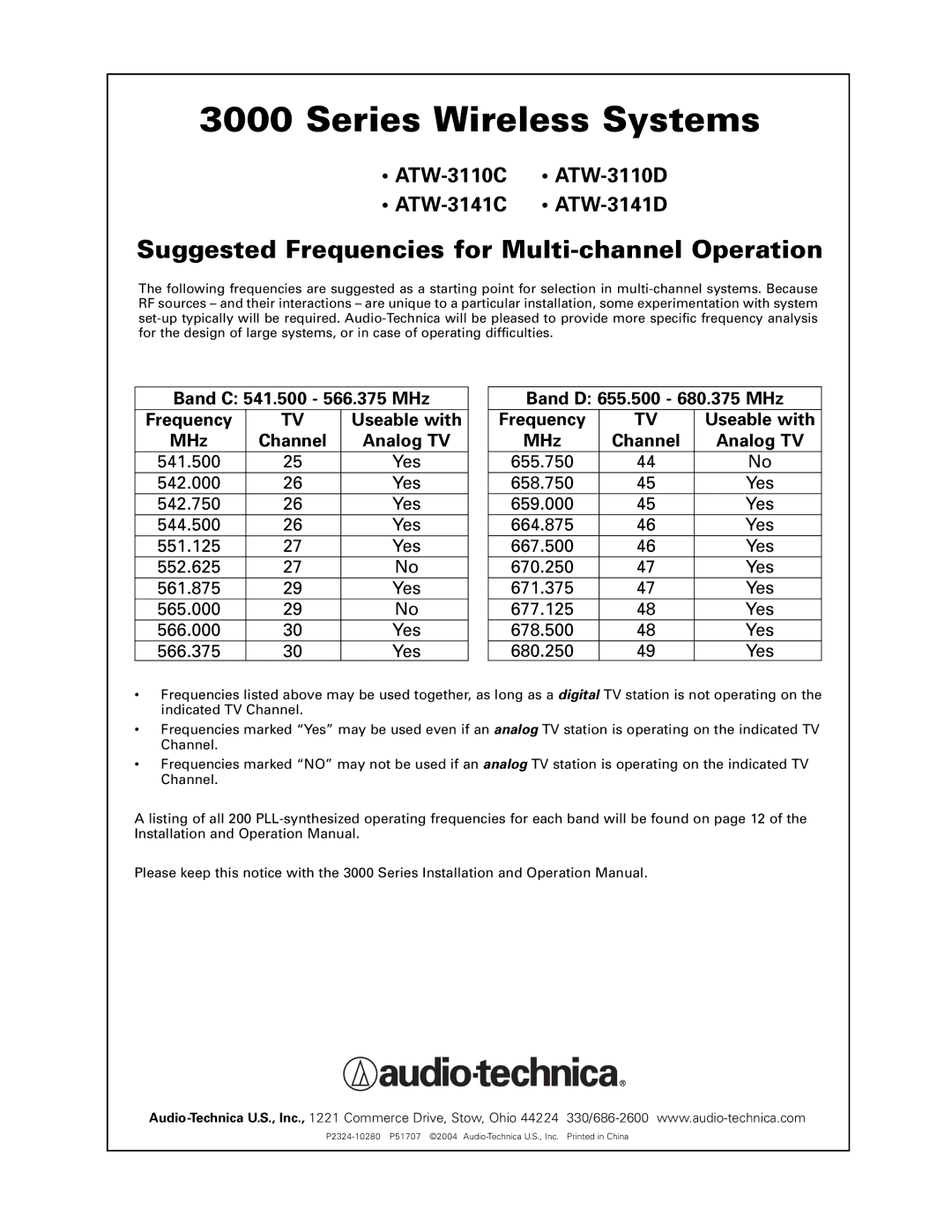

3000 Series Wireless Systems

ATW-3110C

ATW-3110D

ATW-3141C

ATW-3141D

Suggested Frequencies for Multi-channel Operation

The following frequencies are suggested as a starting point for selection in multi-channel systems. Because RF sources – and their interactions – are unique to a particular installation, some experimentation with system set-up typically will be required. Audio-Technica will be pleased to provide more specific frequency analysis for the design of large systems, or in case of operating difficulties.

Band C: 541.500 - 566.375 MHz

Frequency

TV

Useable with

MHz

Channel

Analog TV

541.500

25

Yes

542.000

26

Yes

542.750

26

Yes

544.500

26

Yes

551.125

27

Yes

552.625

27

No

561.875

29

Yes

565.000

29

No

566.000

30

Yes

566.375

30

Yes

Band D: 655.500 - 680.375 MHz

Frequency

TV

Useable with

MHz

Channel

Analog TV

655.750

44

No

658.750

45

Yes

659.000

45

Yes

664.875

46

Yes

667.500

46

Yes

670.250

47

Yes

671.375

47

Yes

677.125

48

Yes

678.500

48

Yes

680.250

49

Yes

Frequencies listed above may be used together, as long as a digital TV station is not operating on the indicated TV Channel.

Frequencies marked “Yes” may be used even if an analog TV station is operating on the indicated TV Channel.

Frequencies marked “NO” may not be used if an analog TV station is operating on the indicated TV Channel.

A listing of all 200 PLL-synthesized operating frequencies for each band will be found on page 12 of the Installation and Operation Manual.

Please keep this notice with the 3000 Series Installation and Operation Manual.

Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224 330/686-2600 www.audio-technica.com

P2324-10280 P51707 ©2004 Audio-Technica U.S., Inc. Printed in China
