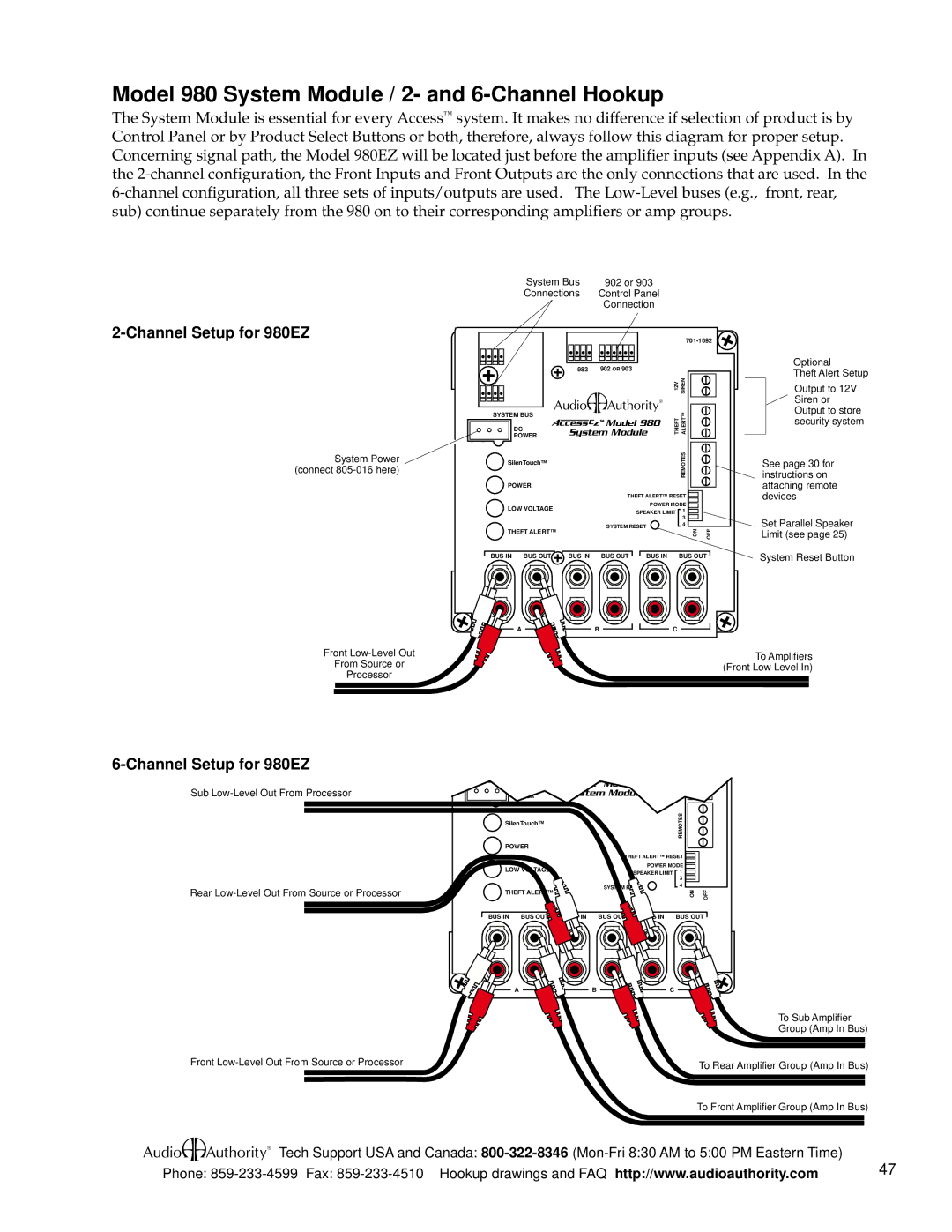

Model 980 System Module / 2- and 6-Channel Hookup

The System Module is essential for every Access™ system. It makes no difference if selection of product is by Control Panel or by Product Select Buttons or both, therefore, always follow this diagram for proper setup. Concerning signal path, the Model 980EZ will be located just before the amplifier inputs (see Appendix A). In the 2-channel configuration, the Front Inputs and Front Outputs are the only connections that are used. In the 6-channel configuration, all three sets of inputs/outputs are used. The Low-Level buses (e.g., front, rear, sub) continue separately from the 980 on to their corresponding amplifiers or amp groups.

2-Channel Setup for 980EZ

System Power (connect 805-016 here)

System Bus		902 or 903
Connections		Control Panel
		Connection
				701-1092
	983	902 OR 903
ASD			12V	SIREN
SYSTEM BUS			THEFT ALERT™
DC		Model 980
	System Module
POWER
SilenTouch™				REMOTES
POWER
		THEFT ALERT™ RESET
LOW VOLTAGE		POWER MODE
		SPEAKER LIMIT		1
				3
		SYSTEM RESET		4
THEFT ALERT™				ON	OFF
BUS IN BUS OUT	BUS IN	BUS OUT BUS IN		BUS OUT

Optional

Theft Alert Setup

Output to 12V Siren or Output to store security system

See page 30 for instructions on attaching remote devices

Set Parallel Speaker Limit (see page 25)

System Reset Button

Front Low-Level Out

From Source or

Processor

A B C

To Amplifiers

(Front Low Level In)

6-Channel Setup for 980EZ

Sub Low-Level Out From Processor

Rear Low-Level Out From Source or Processor

SilenTouch™			REMOTES
POWER
	THEFT ALERT™ RESET
LOW VOLTAGE		POWER MODE
		SPEAKER LIMIT	1
			3
	SYSTEM		4
THEFT ALERT™			ON	OFF

BUS IN BUS OUT IN BUS IN BUS OUT

A

B

C

To Sub Amplifier

Group (Amp In Bus)

Front Low-Level Out From Source or Processor To Rear Amplifier Group (Amp In Bus)

To Front Amplifier Group (Amp In Bus)
