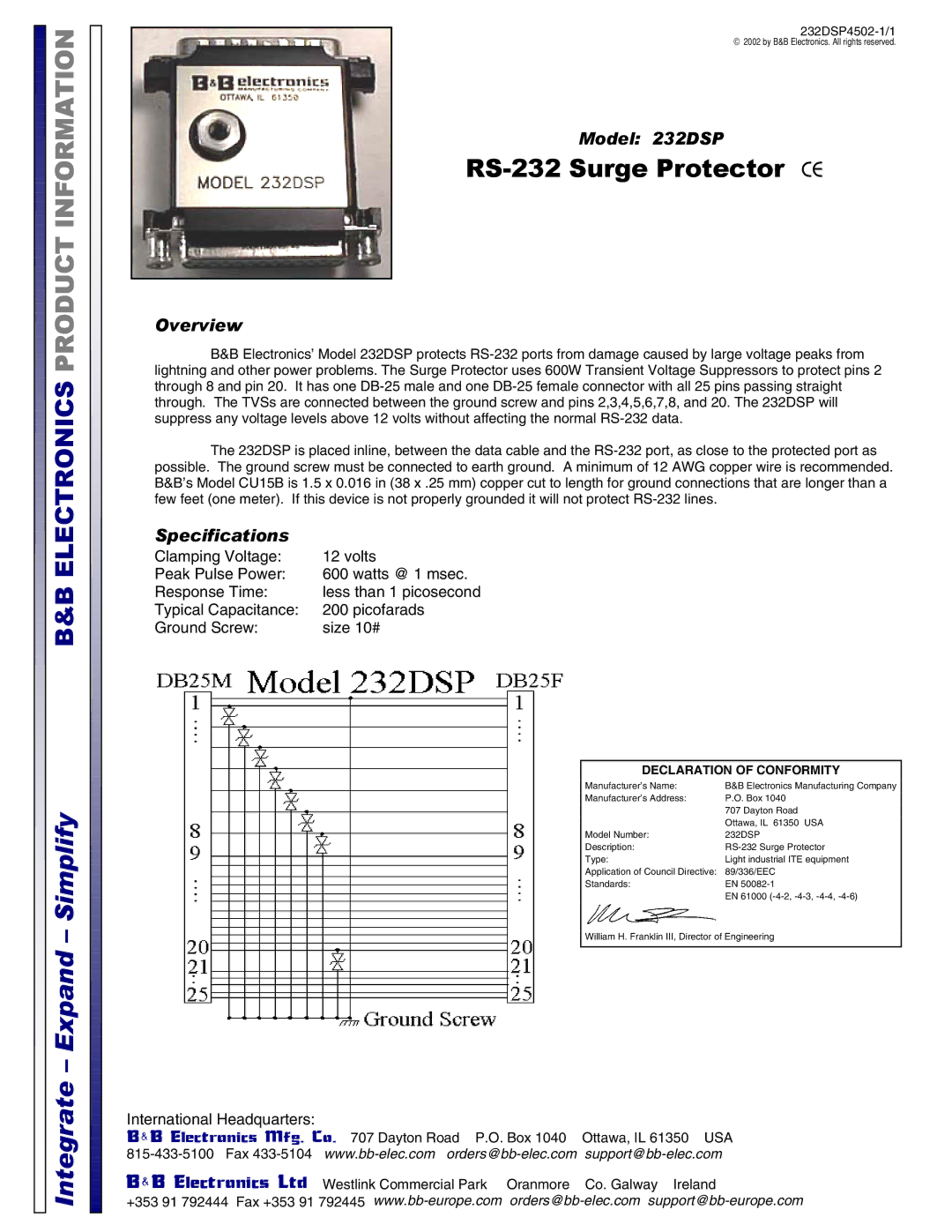

Model: 232DSP

RS-232 Surge Protector CE

Overview

B&BElectronics’ Model 232DSPprotectsRS-232 ports from damage caused by large voltage peaks from
lightningand other power problems. The Surge Protector uses 600W Transient Voltage Suppressors to protect pins 2
through8 and pin 20. Ithas one DB-25 male and one DB-25 female connector with all 25 pins passing straight
through. The TVSs are connected between the ground screw and pins 2,3,4,5,6,7,8, and 20. The 232DSP will
suppressany voltage levels above 12 volts without affecting the normal RS-232 data.
The232DSP is placed inline, between the data cable and the RS-232 port, as close to the protected port as
possible. The ground screw must be connected to earth ground. Aminimum of 12 AWG copper wire is recommended.
B&B’sModel CU15B is 1.5 x 0.016 in (38 x .25 mm) copper cut to length for ground connections that are longer than a
few feet(one meter). If this devicei s not properly grounded it will not protect RS-232 lines.

Specifications

Clamping Voltage: 12 volts
Peak Pulse Power: 600 watts @ 1 msec.
Response Time: less than 1 picosecond
Typical Capacitance: 200 picofarads
Ground Screw: size 10#
DECLARATIONOF CONFORMITY
Manufacturer’sName: B&BElectronics Manufacturing Company
Manufacturer’sAddress: P.O.Box 1040
707Dayton Road
Ottawa,IL 61350 USA
ModelNumber: 232DSP
Description: RS-232Surge Protector
Type: Lightindustrial ITE equipment
Applicationof Council Directive: 89/336/EEC
Standards: EN50082-1
EN61000 (-4-2, -4-3, -4-4, -4-6)
WilliamH. Franklin III, Director of Engineering
