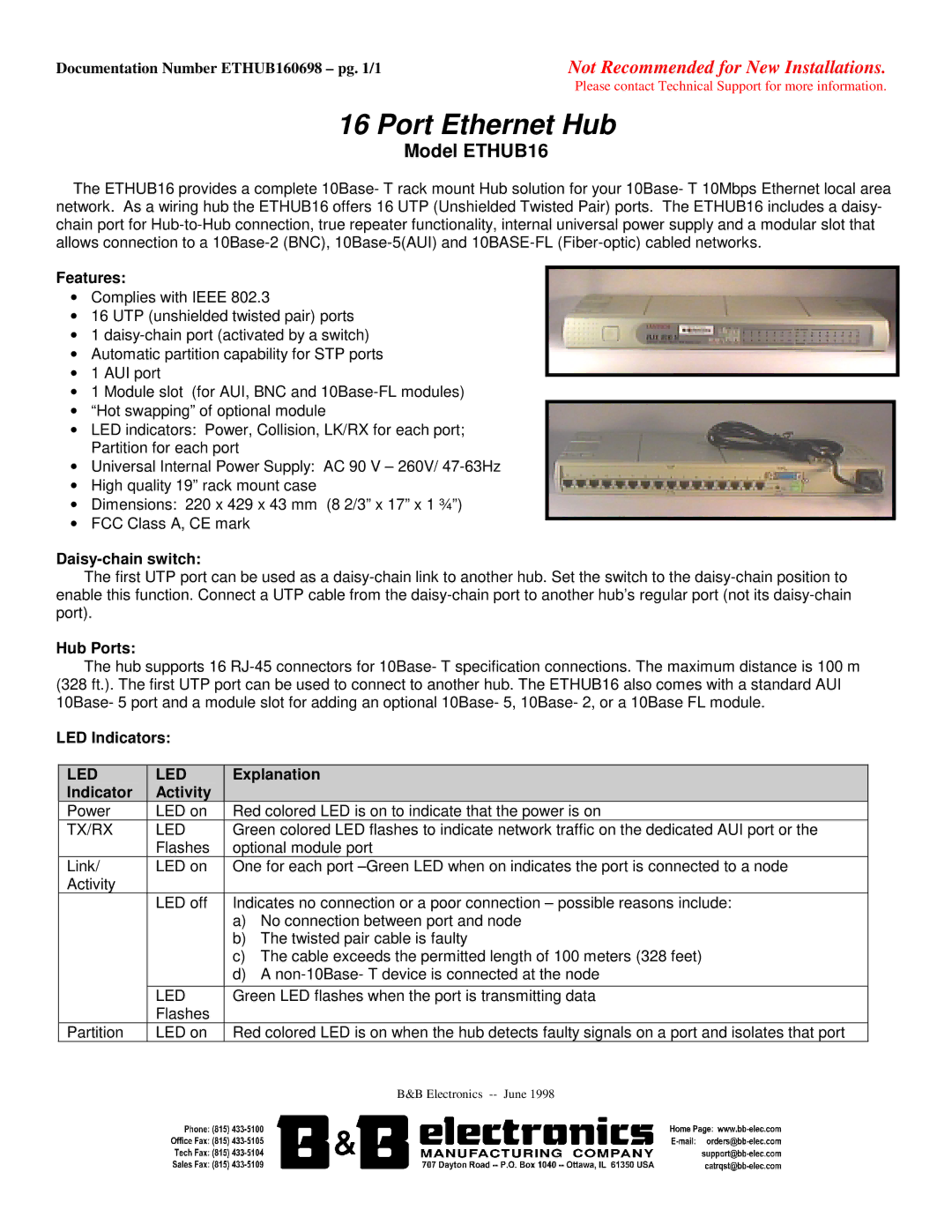

Documentation Number ETHUB160698 – pg. 1/1 | Not Recommended for New Installations. |
| Please contact Technical Support for more information. |
16 Port Ethernet Hub
Model ETHUB16
The ETHUB16 provides a complete 10Base- T rack mount Hub solution for your 10Base- T 10Mbps Ethernet local area network. As a wiring hub the ETHUB16 offers 16 UTP (Unshielded Twisted Pair) ports. The ETHUB16 includes a daisy- chain port for
Features:
•Complies with IEEE 802.3
•16 UTP (unshielded twisted pair) ports
•1
•Automatic partition capability for STP ports
•1 AUI port
•1 Module slot (for AUI, BNC and
•“Hot swapping” of optional module
•LED indicators: Power, Collision, LK/RX for each port; Partition for each port
•Universal Internal Power Supply: AC 90 V – 260V/
•High quality 19” rack mount case
•Dimensions: 220 x 429 x 43 mm (8 2/3” x 17” x 1 ¾”)
•FCC Class A, CE mark
Daisy-chain switch:
The first UTP port can be used as a
Hub Ports:
The hub supports 16
LED Indicators:
LED | LED | Explanation |
Indicator | Activity |
|
Power | LED on | Red colored LED is on to indicate that the power is on |
TX/RX | LED | Green colored LED flashes to indicate network traffic on the dedicated AUI port or the |
| Flashes | optional module port |
Link/ | LED on | One for each port |
Activity |
|
|
| LED off | Indicates no connection or a poor connection – possible reasons include: |
|
| a) No connection between port and node |
|
| b) The twisted pair cable is faulty |
|
| c) The cable exceeds the permitted length of 100 meters (328 feet) |
|
| d) A |
| LED | Green LED flashes when the port is transmitting data |
| Flashes |
|
Partition | LED on | Red colored LED is on when the hub detects faulty signals on a port and isolates that port |
|
| B&B Electronics |
