10PS26

Woofer

700 W continuous program power capacity

76 mm (3 in) aluminium voice coil

55 – 4000 Hz response

96 dB sensitivity Shorting copper cap for extended HF response

LF Drivers LF Nd Drivers Coaxials HF Drivers Horns

Specification

Nominal Diameter

250 (10) mm (in)

Nominal Impedance (1)

8 Ohm

Minimum Impedence

7.1 Ohm

Nominal Power Handling (2)

350 W

Continuous Power Handling (3)

700 W

Sensitivity (1W/1m) (4)

96 dB

Frequency Range

55 - 4000 Hz

Voice Coil Diameter

76 (3) mm (in)

Winding Material

Aluminium

Former Material

Glass Fibre

Winding Depth

18 (0.71) mm (in)

Magnetic Gap Depth

10 (0.4) mm (in)

Flux Density

0.9 T

Thiele & Small Parameters

Fs

54 Hz

Re

5.8 Ohm

Qes

0.33

Qms

2.9

Qts

0.29

Vas

38 (1.3) dm3 (ft3)

Sd

320 (49.1) cm2 (in2)

Eta Zero

1.8 %

Xmax

+/- 5.5 mm

Xvar

+/- 5 mm

Mms

33 g

Bl

14.1 Txm

Le

1.2 mH



Mounting and Shipping Info





Overall Diameter

262 mm (10.3 in)

Bolt Circle Diameter

245 mm (9.6 in)

Baffle Cutout Diameter

230 mm (8.8 in)

Depth

123 mm (4.8 in)

Flange and Gasket Thickness

14 mm (0.55 in)

Net Weight

6 kg (13.2 lb)

Shipping Weight

6.7 kg (14.7 lb)

Shipping Box

320x320x160 mm



(12x12x6.3 in)

1For different impedances, please ask.

22 hours test made with continuous pink noise signal (6 dB crest factor). Power calculated on rated minimum impedance.

3Power on Continuous Program is defined as 3 dB greater than the Nominal rating.

4Applied RMS Voltage is set to 2.83V for 8 ohms or 2.0V for 4 ohms Nominal Impedance

Page 1

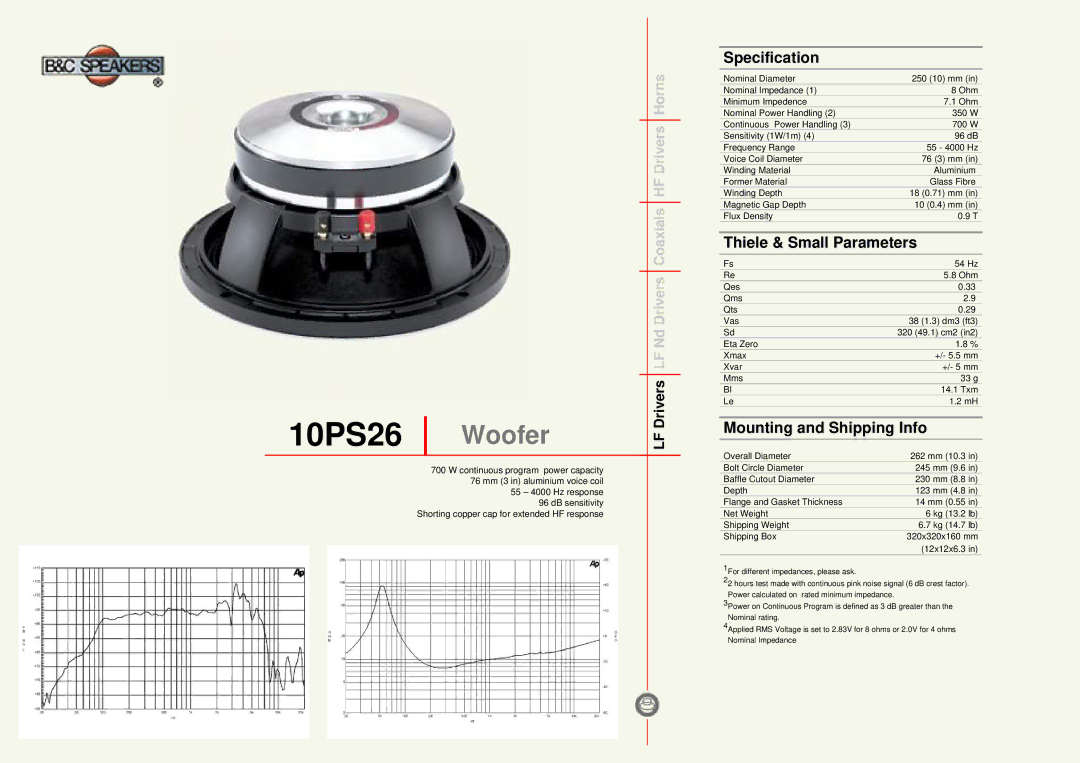

Image 1
B&C Speakers 10PS26 manual Woofer, Specification, Thiele & Small Parameters, Mounting and Shipping Info

10PS26 specifications

B&C Speakers is a name synonymous with high-quality sound reproduction, and one of their standout products is the 10PS26, a premium 10-inch mid-bass speaker designed for professional audio applications. This speaker excels in a variety of settings including live sound reinforcement, portable systems, and fixed installations, making it a versatile choice for audio engineers and musicians alike.

One of the key features of the 10PS26 is its robust construction, which is designed to withstand the rigors of professional use. The speaker has a lightweight yet durable neodymium magnet, which not only enhances the overall efficiency of the driver but also reduces the overall weight of the speaker. This is particularly beneficial for mobile applications where portability is essential. The design includes a double suspension system that allows for greater excursion and improved linearity, which results in a more accurate sound reproduction across its frequency range.

The 10PS26 boasts a frequency response that spans from 45 Hz to 4 kHz. This wide frequency range is complemented by a low distortion rate, ensuring that the sound quality remains pristine, even at higher sound pressure levels. The speaker's sensitivity is rated at 96 dB, which means that it can produce a substantial output with minimal power input, making it suitable for a variety of amplifier configurations.

Another notable technology present in the 10PS26 is the use of a high-temperature voice coil, which is rated at 2.5 inches. This allows the speaker to handle substantial power, with a continuous power handling capability of 250 watts RMS and a peak power of 1000 watts. This strong power handling translates to reliability during extended use, giving users peace of mind in high-demand environments.

The B&C 10PS26 also features a robust suspension design, which includes a specially designed cone that offers both rigidity and flexibility. This combination contributes to reduced breakup modes and a smoother response at high frequencies, which is often a challenge with smaller drivers.

Overall, the B&C Speakers 10PS26 stands out as an exceptional choice for those seeking a mid-bass driver that delivers in terms of sound quality, durability, and efficiency. Whether in a live performance or a permanent installation, this speaker is engineered to meet the demands of professional audio with remarkable reliability and superior performance.
