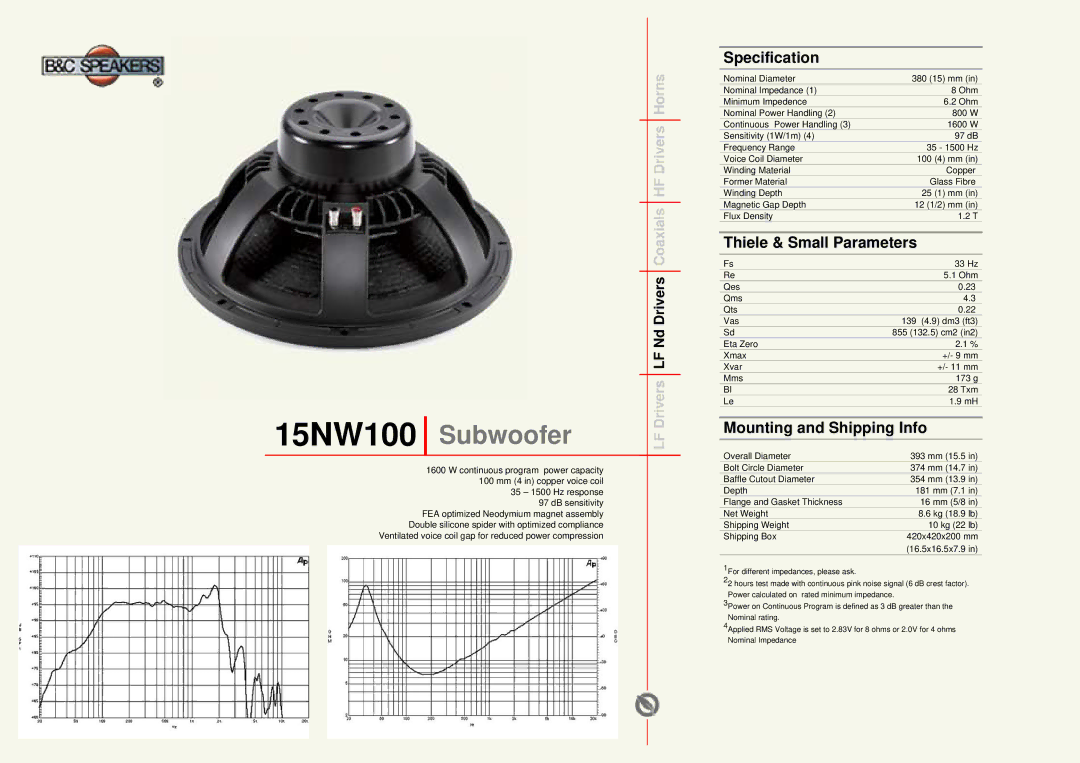

15NW100 Subwoofer
1600 W continuous program power capacity
100 mm (4 in) copper voice coil
35 – 1500 Hz response
97 dB sensitivity FEA optimized Neodymium magnet assembly Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression
LF Drivers LF Nd Drivers Coaxials HF Drivers Horns
Specification
Nominal Diameter | 380 (15) mm (in) |
Nominal Impedance (1) | 8 Ohm |
Minimum Impedence | 6.2 Ohm |
Nominal Power Handling (2) | 800 W |
Continuous Power Handling (3) | 1600 W |
Sensitivity (1W/1m) (4) | 97 dB |
Frequency Range | 35 - 1500 Hz |
Voice Coil Diameter | 100 (4) mm (in) |
Winding Material | Copper |
Former Material | Glass Fibre |
Winding Depth | 25 (1) mm (in) |
Magnetic Gap Depth | 12 (1/2) mm (in) |
Flux Density | 1.2 T |
Thiele & Small Parameters
Fs | 33 Hz |
Re | 5.1 Ohm |
Qes | 0.23 |
Qms | 4.3 |
Qts | 0.22 |
Vas | 139 (4.9) dm3 (ft3) |
Sd | 855 (132.5) cm2 (in2) |
Eta Zero | 2.1 % |
Xmax | +/- 9 mm |
Xvar | +/- 11 mm |
Mms | 173 g |
Bl | 28 Txm |
Le | 1.9 mH |
| |
Mounting and Shipping Info | |
|
|
Overall Diameter | 393 mm (15.5 in) |
Bolt Circle Diameter | 374 mm (14.7 in) |
Baffle Cutout Diameter | 354 mm (13.9 in) |
Depth | 181 mm (7.1 in) |
Flange and Gasket Thickness | 16 mm (5/8 in) |
Net Weight | 8.6 kg (18.9 lb) |
Shipping Weight | 10 kg (22 lb) |
Shipping Box | 420x420x200 mm |
| (16.5x16.5x7.9 in) |
1For different impedances, please ask.
22 hours test made with continuous pink noise signal (6 dB crest factor). Power calculated on rated minimum impedance.
3Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
4Applied RMS Voltage is set to 2.83V for 8 ohms or 2.0V for 4 ohms Nominal Impedance
