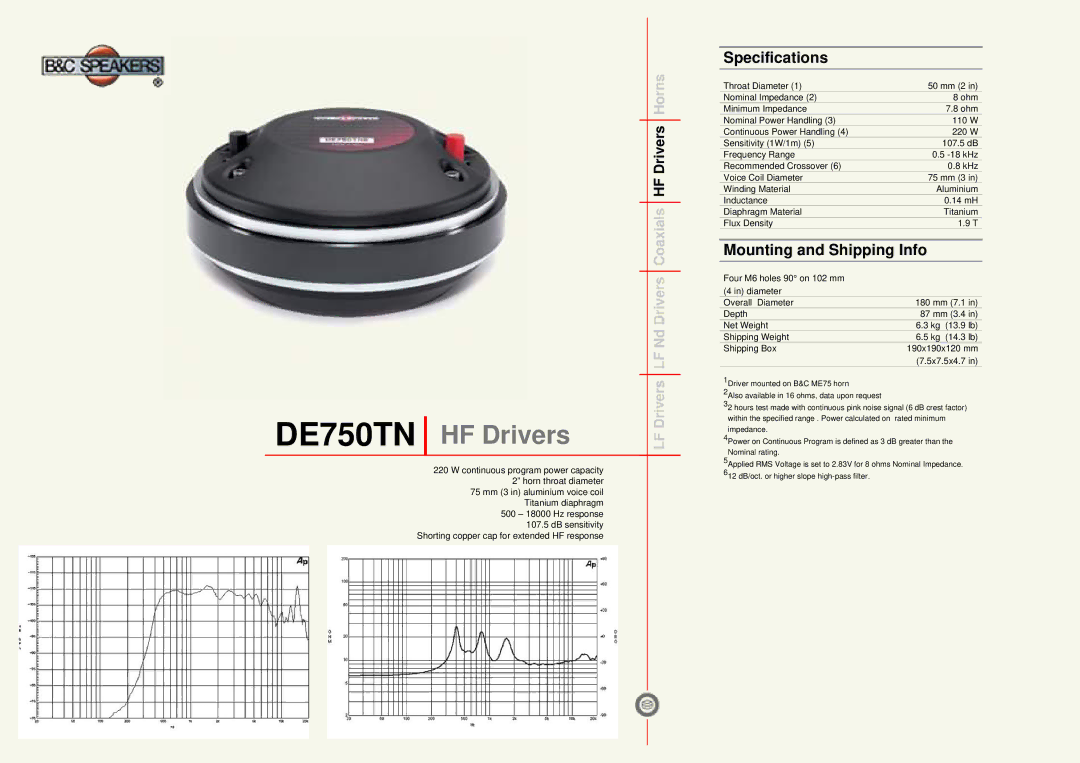

DE750TN HF Drivers
220 W continuous program power capacity 2” horn throat diameter 75 mm (3 in) aluminium voice coil Titanium diaphragm 500 – 18000 Hz response 107.5 dB sensitivity
Shorting copper cap for extended HF response
LF Drivers LF Nd Drivers Coaxials HF Drivers Horns
Specifications
Throat Diameter (1) | 50 mm (2 in) | |
Nominal Impedance (2) |
| 8 ohm |
Minimum Impedance |
| 7.8 ohm |
Nominal Power Handling (3) |
| 110 W |
Continuous Power Handling (4) |
| 220 W |
Sensitivity (1W/1m) (5) |
| 107.5 dB |
Frequency Range | 0.5 | |
Recommended Crossover (6) |
| 0.8 kHz |
Voice Coil Diameter | 75 mm (3 in) | |
Winding Material | Aluminium | |
Inductance |
| 0.14 mH |
Diaphragm Material |
| Titanium |
Flux Density |
| 1.9 T |
|
| |
Mounting and Shipping Info |
| |
|
|
|
Four M6 holes 90° on 102 mm |
|
|
(4 in) diameter |
|
|
Overall Diameter | 180 mm (7.1 in) | |
Depth | 87 mm (3.4 in) | |
Net Weight | 6.3 kg | (13.9 lb) |
Shipping Weight | 6.5 kg | (14.3 lb) |
Shipping Box | 190x190x120 mm | |
| (7.5x7.5x4.7 in) | |
1Driver mounted on B&C ME75 horn
2Also available in 16 ohms, data upon request
32 hours test made with continuous pink noise signal (6 dB crest factor) within the specified range . Power calculated on rated minimum impedance.
4Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
5Applied RMS Voltage is set to 2.83V for 8 ohms Nominal Impedance. 612 dB/oct. or higher slope
