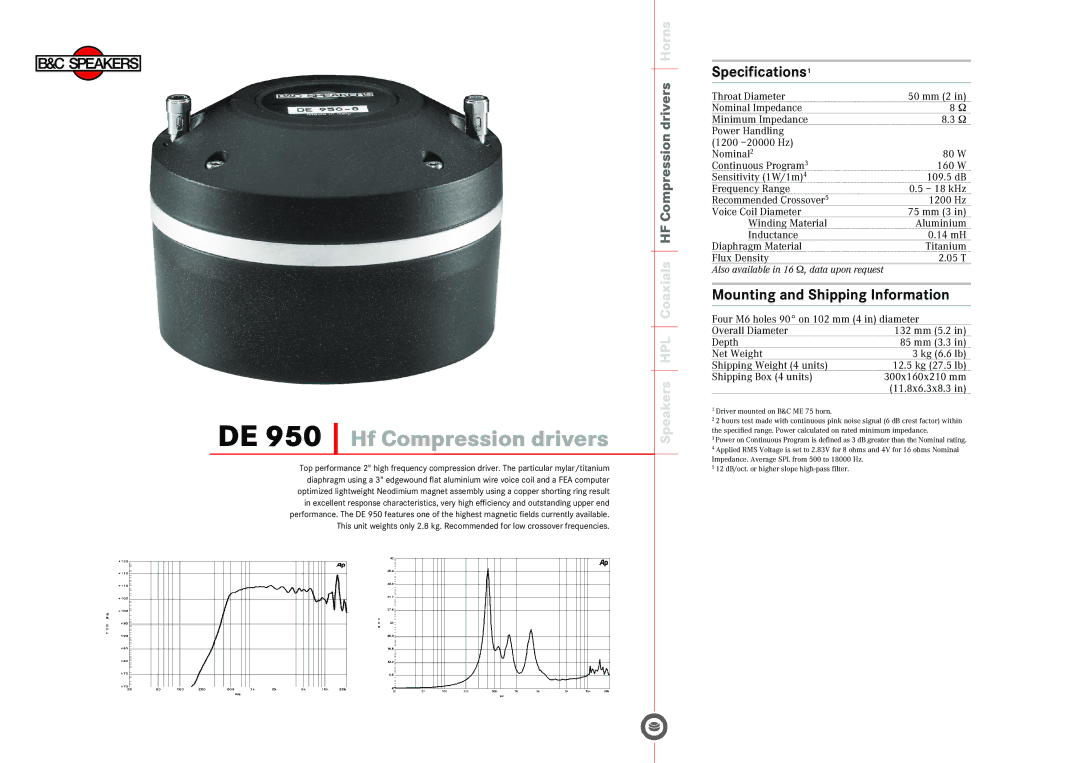

DE 950 Hf Compression drivers
Top performance 2" high frequency compression driver. The particular mylar/titanium diaphragm using a 3" edgewound flat aluminium wire voice coil and a FEA computer optimized lightweight Neodimium magnet assembly using a copper shorting ring result in excellent response characteristics, very high efficiency and outstanding upper end performance. The DE 950 features one of the highest magnetic fields currently available. This unit weights only 2.8 kg. Recommended for low crossover frequencies.
Speakers HPL Coaxials HF Compression drivers Horns
Specifications1
Throat Diameter | 50 mm (2 in) |
Nominal Impedance | 8 Ω |
Minimum Impedance | 8.3 Ω |
Power Handling |
|
(1200 |
|
Nominal2 | 80 W |
Continuous Program3 | 160 W |
Sensitivity (1W/1m)4 | 109.5 dB |
Frequency Range | 0.5 – 18 kHz |
Recommended Crossover5 | 1200 Hz |
Voice Coil Diameter | 75 mm (3 in) |
Winding Material | Aluminium |
Inductance | 0.14 mH |
Diaphragm Material | Titanium |
Flux Density | 2.05 T |
Also available in 16 Ω, data upon request |
|
Mounting and Shipping Information
Four M6 holes 90° on 102 mm (4 in) diameter
Overall Diameter | 132 mm (5.2 in) |
Depth | 85 mm (3.3 in) |
Net Weight | 3 kg (6.6 lb) |
Shipping Weight (4 units) | 12.5 kg (27.5 lb) |
Shipping Box (4 units) | 300x160x210 mm |
| (11.8x6.3x8.3 in) |
1Driver mounted on B&C ME 75 horn.
22 hours test made with continuous pink noise signal (6 dB crest factor) within the specified range. Power calculated on rated minimum impedance.
3 Power on Continuous Program is defined as 3 dB greater than the Nominal rating. 4 Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal Impedance. Average SPL from 500 to 18000 Hz.
5 12 dB/oct. or higher slope
