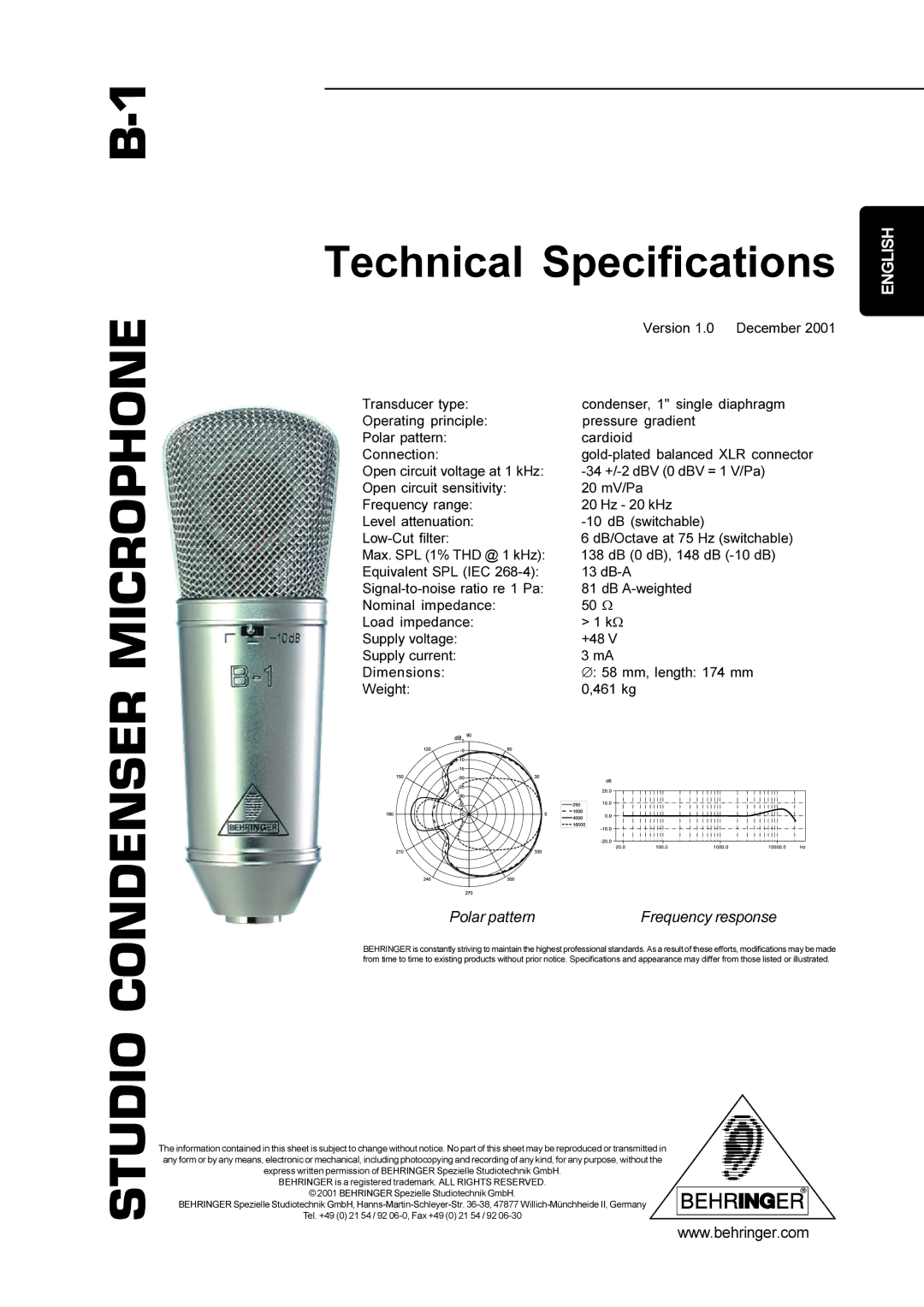

B-1

Technical Specifications

MICROPHONE		Version 1.0 December 2001
	Transducer type:	condenser, 1" single diaphragm
	Operating principle:	pressure gradient
	Polar pattern:	cardioid
	Connection:	gold-plated balanced XLR connector
	Open circuit voltage at 1 kHz:	-34 +/-2 dBV (0 dBV = 1 V/Pa)
	Open circuit sensitivity:	20 mV/Pa
	Frequency range:	20 Hz - 20 kHz
	Level attenuation:	-10 dB (switchable)
	Low-Cut filter:	6 dB/Octave at 75 Hz (switchable)
	Max. SPL (1% THD @ 1 kHz):	138 dB (0 dB), 148 dB (-10 dB)
	Equivalent SPL (IEC 268-4):	13 dB-A
	Signal-to-noise ratio re 1 Pa:	81 dB A-weighted
	Nominal impedance:	50 W
	Load impedance:	> 1 kW
	Supply voltage:	+48 V
	Supply current:	3 mA
CONDENSER	Dimensions:	Æ: 58 mm, length: 174 mm
	Weight:	0,461 kg
	Polar pattern	Frequency response
	BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made
	from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.
