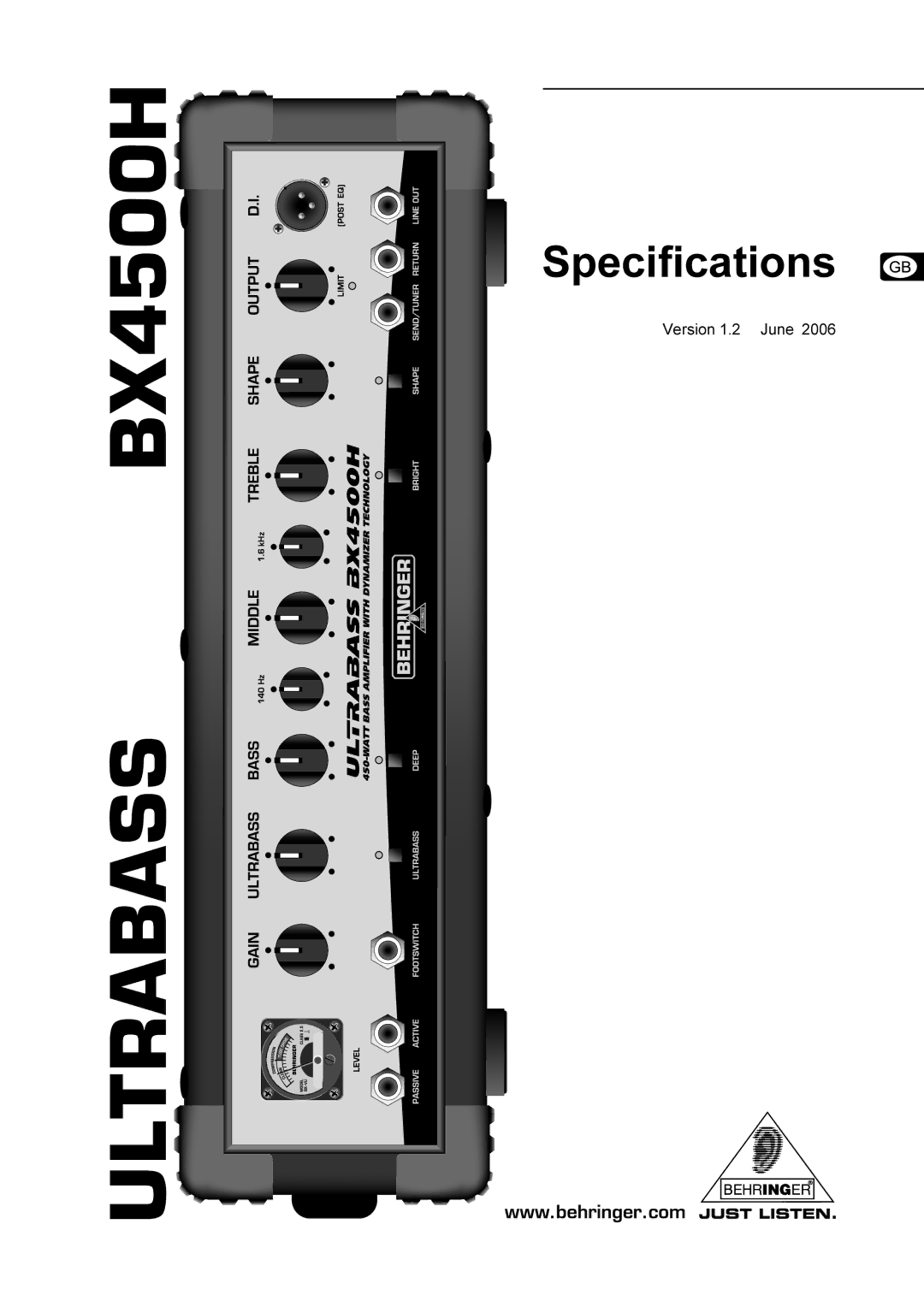

ULTRABASS BX4500H
SPECIFICATIONS
AUDIO INPUTS |
|
|
|
Active instrument input | 1/4" mono jack, unbalanced | ||
Input impedance | approx. 220 kW unbalanced | ||
Passive instrument input | 1/4" mono jack, unbalanced | ||
Input impedance | approx. 750 kW unbalanced | ||
Return | 1/4" mono jack, unbalanced | ||
Input impedance | approx. 10 kW unbalanced | ||
AUDIO OUTPUTS |
|
|
|
Send/Tuner | 1/4" mono jack, unbalanced | ||
Output impedance | min. 2.2 kW unbalanced | ||
Line Out | 1/4" mono jack, unbalanced | ||
Output impedance | approx. 100 W unbalanced | ||
Output level | max. +4 dBu |
|
|
D.I. output | XLR connector, | ||
Output impedance | approx. 100 W balanced | ||
Output level | max. |
|
|
Loudspeaker connectors | 1/4" mono jack, unbalanced | ||
| professional connector |
| |
| (compatible to Neutrik® Speakon®) | ||
Load impedance | min. 4 W |
|
|
SYSTEM SPECIFICATIONS | 450 Watts into 4 W |
| |
Power amp output |
| ||
POWER SUPPLY |
|
|
|
Mains voltages | U.S./Canada |
|
|
| 120 V~, 60 Hz, 6 A |
| |
| China/Korea |
|
|
| 220 V~, 50 Hz, 3 A |
| |
| Europe/U.K./Australia |
| |
| 230 V~, 50 Hz, 3 A |
| |
| Japan |
|
|
| 100 V~, 50/60 Hz, 6 A |
| |
| General export model |
| |
| 120/230 V~, 50 - 60 Hz |
| |
Fuse | 100 - 120 V~: T | 10 A | H 250 V |
| 200 - 240 V~: T | 6.3 A | H 250 V |
Mains connection | Standard IEC receptacle | ||
PHYSICAL/WEIGHT |
|
|
|
Dimensions (H x W x D) | approx. 5 3/4" (144,6 mm) | ||
| x 19 1/8" (486 mm) |
| |
| x 12" (305 mm) |
|
|
Weight | approx. 14 kg (30 7/8 lbs) |
