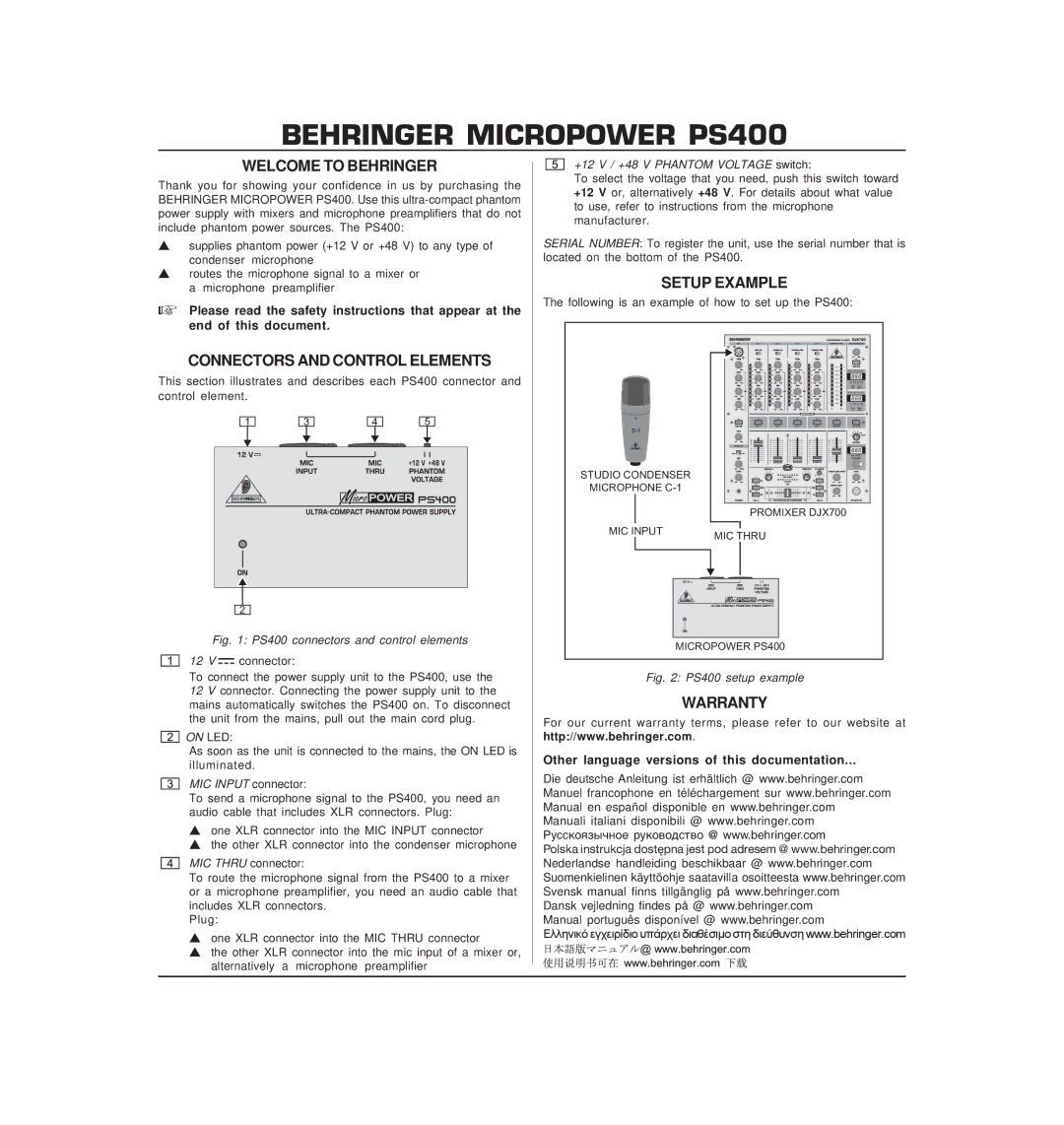

BEHRINGER MICROPOWER PS400
WELCOME TO BEHRINGER
Thank you for showing your confidence in us by purchasing the BEHRINGER MICROPOWER PS400. Use this
supplies phantom power (+12 V or +48 V) to any type of condenser microphone
routes the microphone signal to a mixer or a microphone preamplifier

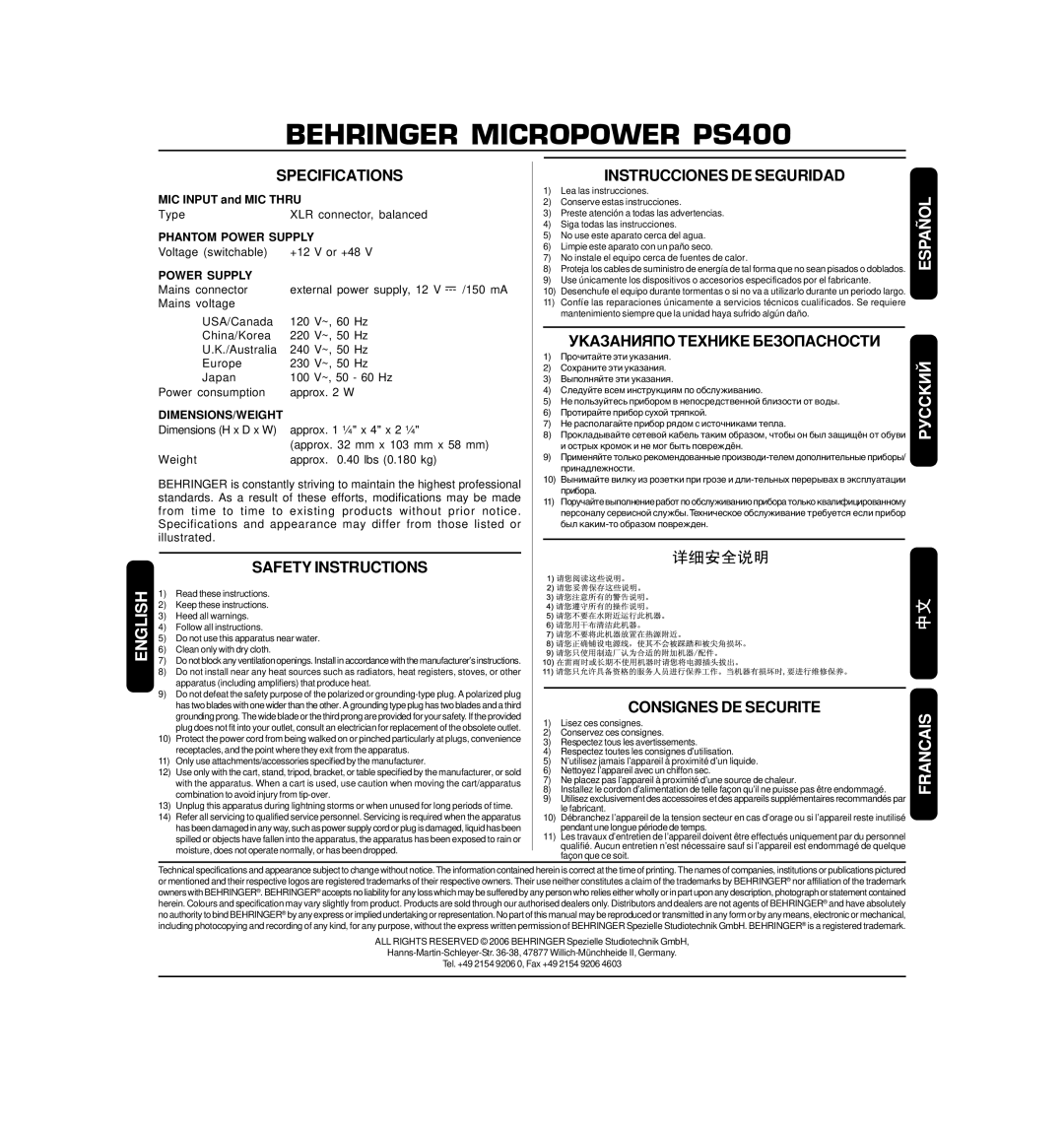

Please read the safety instructions that appear at the end of this document.
CONNECTORS AND CONTROL ELEMENTS
This section illustrates and describes each PS400 connector and control element.
1 | 3 | 4 | 5 |
2 |
|
|
|
Fig. 1: PS400 connectors and control elements
12 V
connector:
To connect the power supply unit to the PS400, use the
12 V connector. Connecting the power supply unit to the mains automatically switches the PS400 on. To disconnect the unit from the mains, pull out the main cord plug.
ON LED:
As soon as the unit is connected to the mains, the ON LED is illuminated.
MIC INPUT connector:
To send a microphone signal to the PS400, you need an audio cable that includes XLR connectors. Plug:
one XLR connector into the MIC INPUT connector
the other XLR connector into the condenser microphone
MIC THRU connector:
To route the microphone signal from the PS400 to a mixer or a microphone preamplifier, you need an audio cable that includes XLR connectors.
Plug:
one XLR connector into the MIC THRU connector
the other XLR connector into the mic input of a mixer or, alternatively a microphone preamplifier
+12 V / +48 V PHANTOM VOLTAGE switch:
To select the voltage that you need, push this switch toward +12 V or, alternatively +48 V. For details about what value to use, refer to instructions from the microphone manufacturer.
SERIAL NUMBER: To register the unit, use the serial number that is located on the bottom of the PS400.
SETUP EXAMPLE
The following is an example of how to set up the PS400:
STUDIO CONDENSER |
|
MICROPHONE |
|
| PROMIXER DJX700 |
MIC INPUT | MIC THRU |
| |
MICROPOWER PS400 | |
Fig. 2: PS400 setup example
WARRANTY
For our current warranty terms, please refer to our website at http://www.behringer.com.
