Billion Electric Company BEC 7800(N) Hardware Connection, Hardware Installation, Power Connection

Models: BEC 7800(N)

1 10

Download 10 pages 55.1 Kb

Page 6

Image 6

Quick Start Guide

Hardware Connection

Users will not be able to connect to the internet through EWAN if DSL is already connected to the internet. Only one connection type (EWAN or DSL) is allowed to connect to the internet at one time.

ADSL Router Mode

Broadband Router Mode

Hardware Installation

1.Power Connection

Plug the supplied power adapter to the wall jack and the other side to the router. Please note that the plug type may differ according to different countries.

-4-

Page 6

Image 6

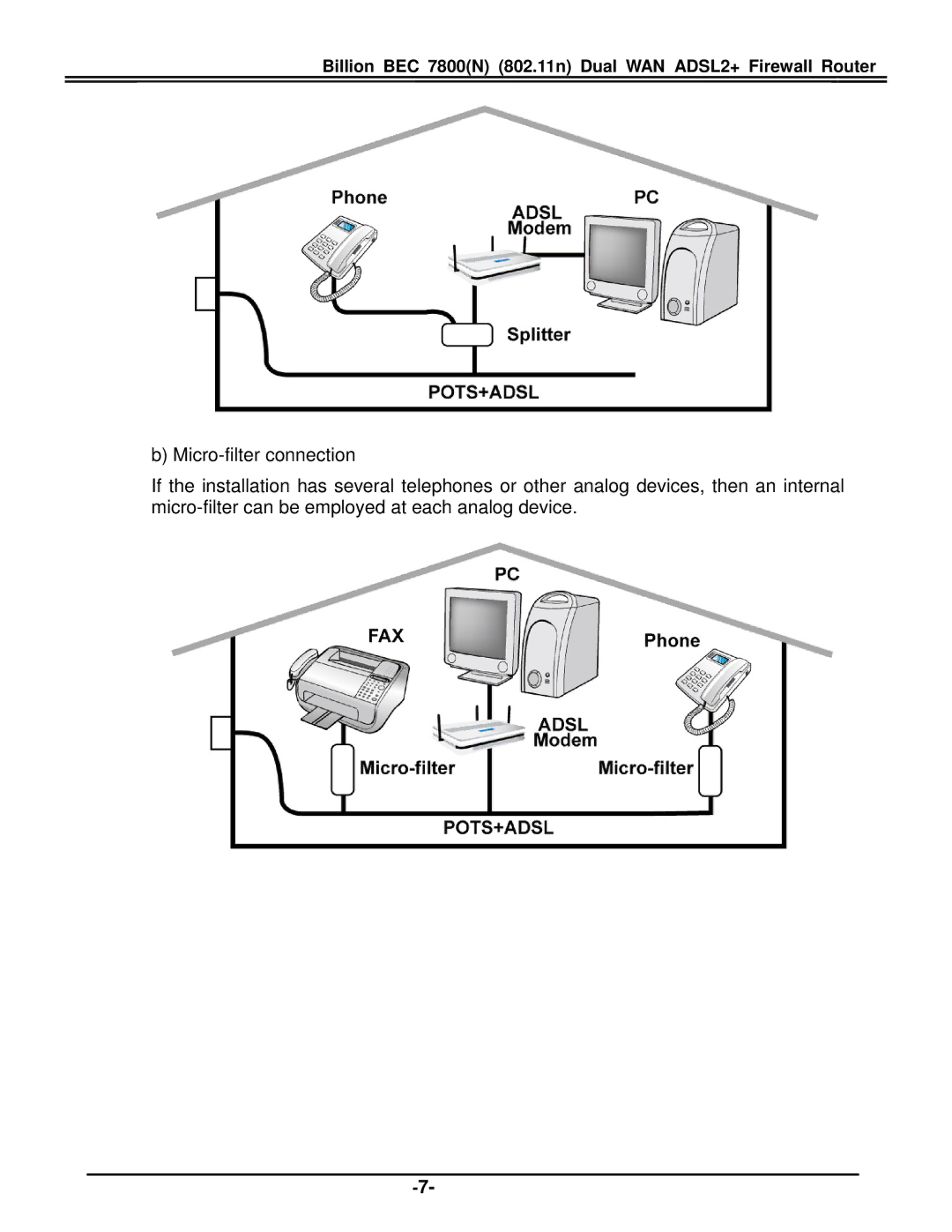

Billion Electric Company BEC 7800(N) Hardware Connection, Hardware Installation, ADSL Router Mode Broadband Router Mode
