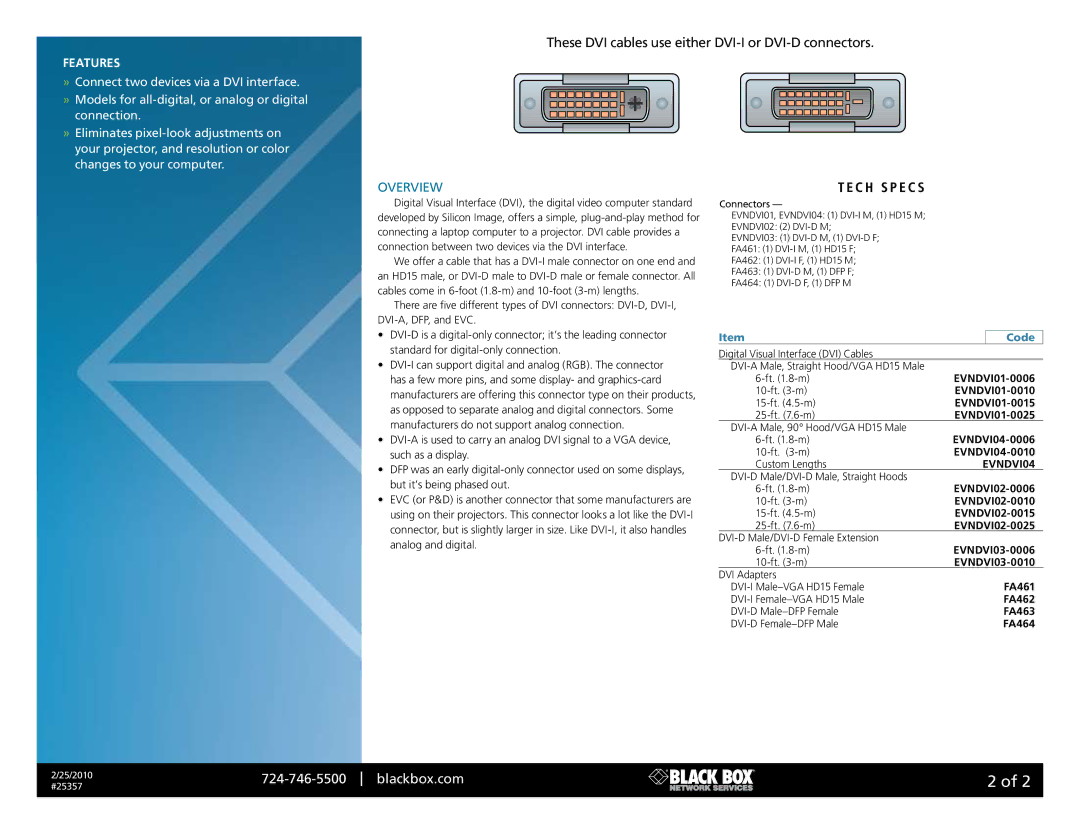

OVERVIEW
Digital Visual Interface (DVI), the digital video computer standard developed by Silicon Image, offers a simple, plug-and-play method for connecting a laptop computer to a projector. DVI cable provides a connection between two devices via the DVI interface.
We offer a cable that has a DVI-I male connector on one end and an HD15 male, or DVI-D male to DVI-D male or female connector. All cables come in 6-foot (1.8-m) and 10-foot (3-m) lengths.
There are five different types of DVI connectors: DVI-D, DVI-I, DVI-A, DFP, and EVC.
•DVI-D is a digital-only connector; it’s the leading connector standard for digital-only connection.
•DVI-I can support digital and analog (RGB). The connector has a few more pins, and some display- and graphics-card manufacturers are offering this connector type on their products, as opposed to separate analog and digital connectors. Some manufacturers do not support analog connection.
•DVI-A is used to carry an analog DVI signal to a VGA device, such as a display.
•DFP was an early digital-only connector used on some displays, but it’s being phased out.
•EVC (or P&D) is another connector that some manufacturers are using on their projectors. This connector looks a lot like the DVI-I connector, but is slightly larger in size. Like DVI-I, it also handles analog and digital.
T e c h S P e c s
Connectors —
EVNDVI01, EVNDVI04: (1) DVI-I M, (1) HD15 M;
EVNDVI02: (2) DVI-D M;
EVNDVI03: (1) DVI-D M, (1) DVI-D F;
FA461: (1) DVI-I M, (1) HD15 F;
FA462: (1) DVI-I F, (1) HD15 M;
FA463: (1) DVI-D M, (1) DFP F;
FA464: (1) DVI-D F, (1) DFP M
Item | | Code |
Digital Visual Interface (DVI) Cables | | |
DVI-A Male, Straight Hood/VGA HD15 Male | EVNDVI01-0006 |
6-ft. (1.8-m) |
10-ft. (3-m) | EVNDVI01-0010 |
15-ft. (4.5-m) | EVNDVI01-0015 |
25-ft. (7.6-m) | EVNDVI01-0025 |
DVI-A Male, 90° Hood/VGA HD15 Male | EVNDVI04-0006 |
6-ft. (1.8-m) |
10-ft. (3-m) | EVNDVI04-0010 |
Custom Lengths | EVNDVI04 |
DVI-D Male/DVI-D Male, Straight Hoods | EVNDVI02-0006 |
6-ft. (1.8-m) |
10-ft. (3-m) | EVNDVI02-0010 |
15-ft. (4.5-m) | EVNDVI02-0015 |
25-ft. (7.6-m) | EVNDVI02-0025 |
DVI-D Male/DVI-D Female Extension | EVNDVI03-0006 |
6-ft. (1.8-m) |
10-ft. (3-m) | EVNDVI03-0010 |
DVI Adapters | | FA461 |
DVI-I Male–VGA HD15 Female | |
DVI-I Female–VGA HD15 Male | | FA462 |
DVI-D Male–DFP Female | | FA463 |
DVI-D Female–DFP Male | | FA464 |
