Bulk CAT5 Siamese Cables

Install one cable run instead of two

with these CAT5 cables.

FEATURES

Cables provide four pairs in two separate jackets (two twisted pairs in each jacket) that are physically joined together.

Use each 2-pair bundle for a different application.

INDIVIDUAL CONDUCTOR COLORS

CAT5 Group Twist

The components are twisted into pairs to minimize crosstalk. Two pairs are then cabled together inside each of the two jackets. As a result, there are two independent jackets containing two pairs each.

Jacket #1

Jacket #2

Pair

Color

Pair

Color

1

White/Blue + Blue

1

White/Green + Green

2

White/Orange + Orange

2

White/Brown + Brown

TECH SPECS

Conductor — 24 AWG solid bare copper per ASTM B-3

Number of Conductors — (8) total with (2) 2-pair cables

Insulation — PVC

Jacket — PVC gray

Calculated Cable Outside Diameter — 0.17" x 0.36" (4.3 x 9.1 mm) Mutual Capacitance — 17 pF/ft. @ 1 kHz

Impedance — 100 ohms @ 1 to 100 MHz

Resistance — 28.6 ohms/1000 ft.

Weight — EVNSL17A-0500: 20 lb. (9.1 kg)

Item

Code

Bulk CAT5 Siamese Cable, Solid, 4-Pair (Total)



PVC

EVNSL17A-0500

500-ft. (152.4-m)

Custom Lengths

EVNSL17A

7/6/2007

#23173

Page 1

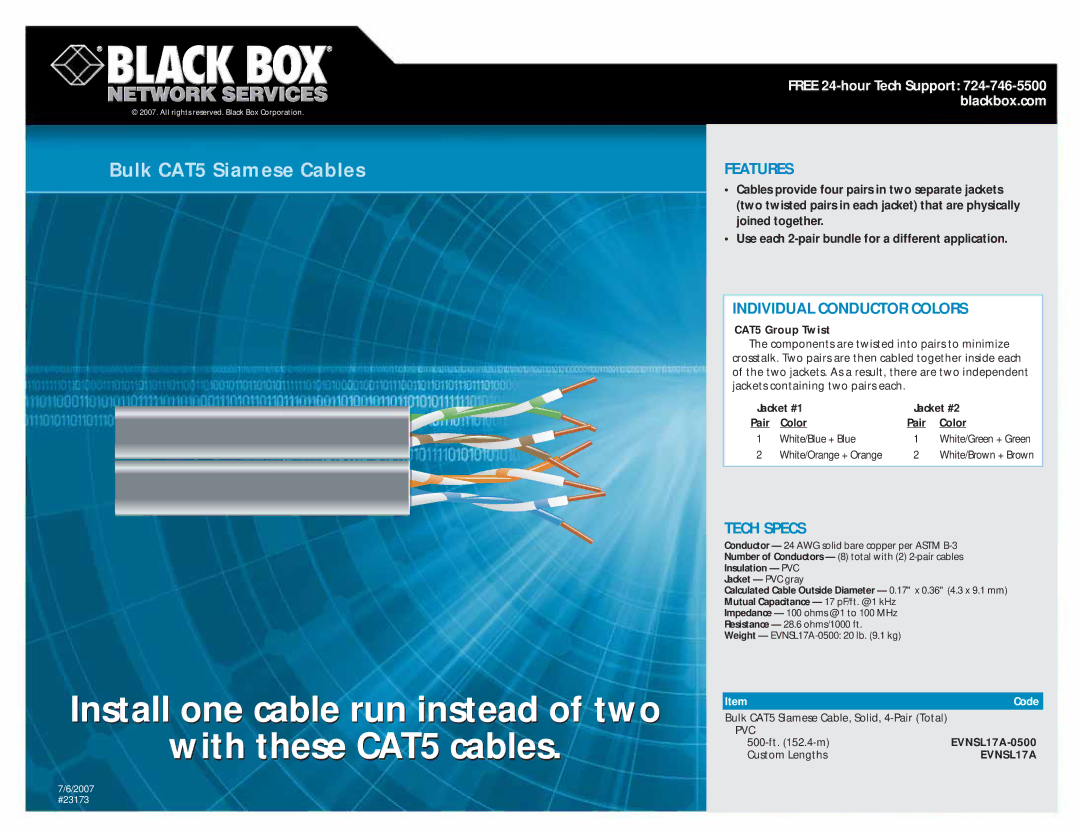

Image 1
