LMC214A-SCP LMC214A-STP LMC214AE-SCP LMC214AE-STP
LMC213A-MMSC LMC213A-MMST LMC213A-SMSC LMC213A-SMST LMC213AE-MMSC LMC213AE-MMST LMC213AE-SMSC LMC213AE-SMST

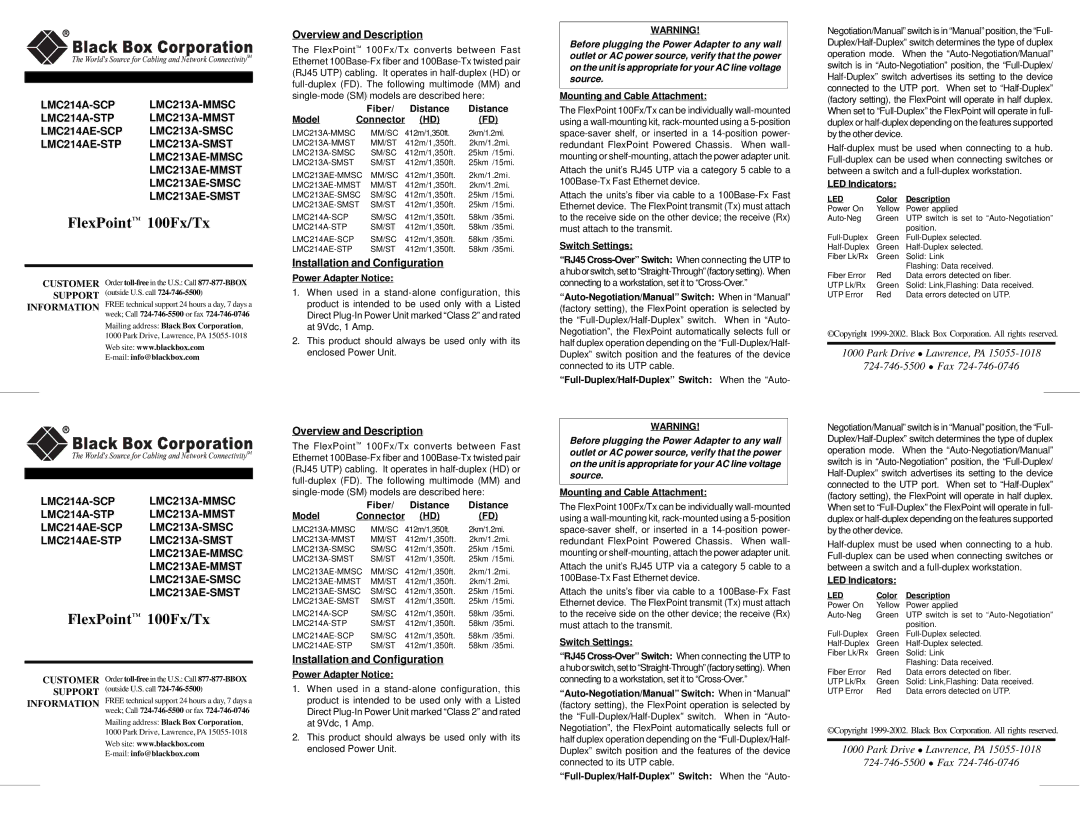

Overview and Description
The FlexPoint™ 100Fx/Tx converts between Fast Ethernet 100Base-Fx fiber and 100Base-Tx twisted pair (RJ45 UTP) cabling. It operates in half-duplex (HD) or full-duplex (FD). The following multimode (MM) and single-mode (SM) models are described here:

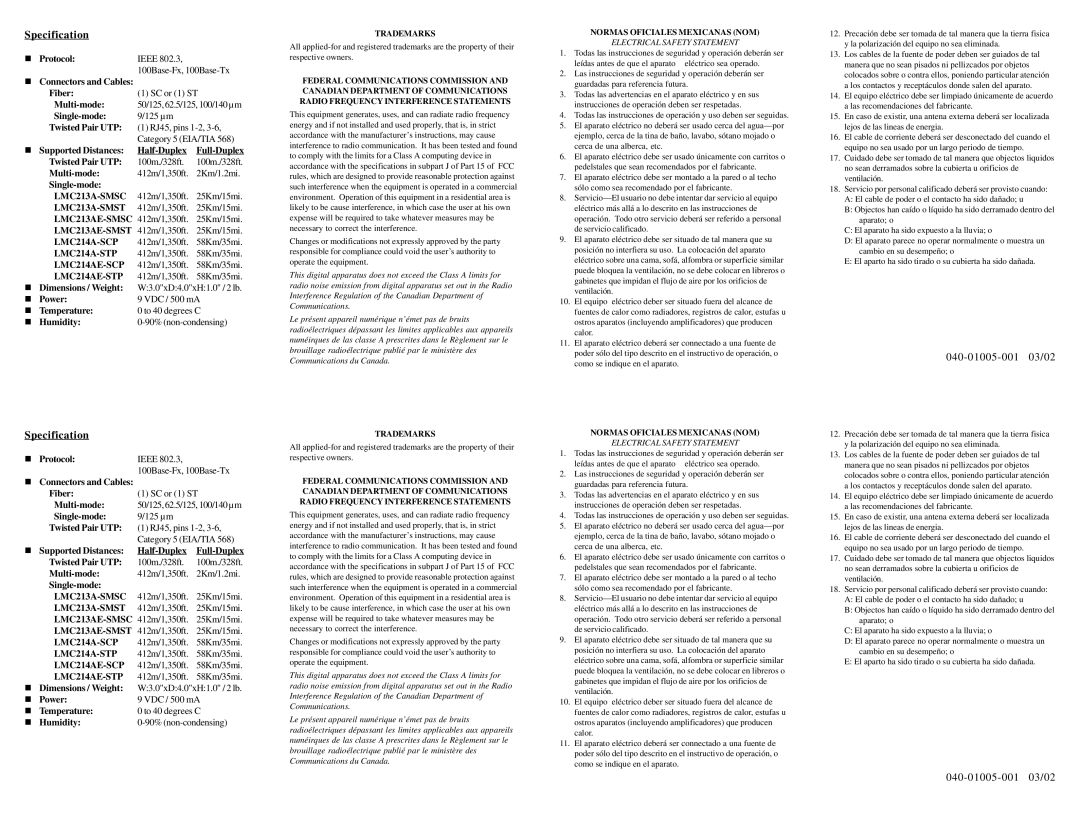

| | Fiber/ | Distance | Distance |
Model | Connector | (HD) | (FD) |
LMC213A-MMSC | | MM/SC | 412m/1,350ft. | 2km/1.2mi. |
LMC213A-MMST | | MM/ST | 412m/1,350ft. | 2km/1.2mi. |
LMC213A-SMSC | | SM/SC | 412m/1,350ft. | 25km /15mi. |
LMC213A-SMST | | SM/ST | 412m/1,350ft. | 25km /15mi. |
LMC213AE-MMSC MM/SC 412m/1,350ft. | 2km/1.2mi. |
LMC213AE-MMST | MM/ST | 412m/1,350ft. | 2km/1.2mi. |
LMC213AE-SMSC SM/SC 412m/1,350ft. | 25km /15mi. |
LMC213AE-SMST | SM/ST | 412m/1,350ft. | 25km /15mi. |
WARNING!
Before plugging the Power Adapter to any wall outlet or AC power source, verify that the power on the unit is appropriate for your AC line voltage source.
Mounting and Cable Attachment:
The FlexPoint 100Fx/Tx can be individually wall-mounted using a wall-mounting kit, rack-mounted using a 5-position space-saver shelf, or inserted in a 14-position power- redundant FlexPoint Powered Chassis. When wall- mounting or shelf-mounting, attach the power adapter unit.
Attach the unit’s RJ45 UTP via a category 5 cable to a 100Base-Tx Fast Ethernet device.
Attach the units’s fiber via cable to a 100Base-Fx Fast Ethernet device. The FlexPoint transmit (Tx) must attach
Negotiation/Manual” switch is in “Manual” position, the “Full- Duplex/Half-Duplex” switch determines the type of duplex operation mode. When the “Auto-Negotiation/Manual” switch is in “Auto-Negotiation” position, the “Full-Duplex/ Half-Duplex” switch advertises its setting to the device connected to the UTP port. When set to “Half-Duplex” (factory setting), the FlexPoint will operate in half duplex. When set to “Full-Duplex” the FlexPoint will operate in full- duplex or half-duplex depending on the features supported by the other device.
Half-duplex must be used when connecting to a hub. Full-duplex can be used when connecting switches or between a switch and a full-duplex workstation.
LED Indicators:
LED | Color | Description |
Power On | Yellow | Power applied |
FlexPoint™ 100Fx/Tx
CUSTOMER Order toll-freein the U.S.: Call 877-877-BBOXSUPPORT (outside U.S. call 724-746-5500)
INFORMATION FREE technical support 24 hours a day, 7 days a week; Call 724-746-5500or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com
E-mail:info@blackbox.com
LMC214A-SCP | SM/SC | 412m/1,350ft. | 58km /35mi. |
LMC214A-STP | SM/ST | 412m/1,350ft. | 58km /35mi. |
LMC214AE-SCP | SM/SC | 412m/1,350ft. | 58km /35mi. |
LMC214AE-STP | SM/ST | 412m/1,350ft. | 58km /35mi. |
Installation and Configuration
Power Adapter Notice:
1.When used in a stand-alone configuration, this product is intended to be used only with a Listed Direct Plug-In Power Unit marked “Class 2” and rated at 9Vdc, 1 Amp.
2.This product should always be used only with its enclosed Power Unit.
Overview and Description
The FlexPoint™ 100Fx/Tx converts between Fast Ethernet 100Base-Fx fiber and 100Base-Tx twisted pair (RJ45 UTP) cabling. It operates in half-duplex (HD) or full-duplex (FD). The following multimode (MM) and single-mode (SM) models are described here:
to the receive side on the other device; the receive (Rx) must attach to the transmit.
Switch Settings:
“RJ45 Cross-Over” Switch: When connecting the UTP to ahuborswitch,setto“Straight-Through”(factorysetting). When connecting to a workstation, set it to “Cross-Over.”
“Auto-Negotiation/Manual” Switch: When in “Manual” (factory setting), the FlexPoint operation is selected by the “Full-Duplex/Half-Duplex” switch. When in “Auto- Negotiation”, the FlexPoint automatically selects full or half duplex operation depending on the “Full-Duplex/Half- Duplex” switch position and the features of the device connected to its UTP cable.
“Full-Duplex/Half-Duplex” Switch: When the “Auto-
WARNING!
Before plugging the Power Adapter to any wall outlet or AC power source, verify that the power on the unit is appropriate for your AC line voltage source.
Mounting and Cable Attachment:
Auto-Neg | Green | UTP switch is set to “Auto-Negotiation” |
| | position. |
Full-Duplex | Green | Full-Duplex selected. |
Half-Duplex | Green | Half-Duplex selected. |
Fiber Lk/Rx | Green | Solid: Link |
| | Flashing: Data received. |
Fiber Error | Red | Data errors detected on fiber. |
UTP Lk/Rx | Green | Solid: Link,Flashing: Data received. |
UTP Error | Red | Data errors detected on UTP. |
©Copyright 1999-2002. Black Box Corporation. All rights reserved.
1000 Park Drive l Lawrence, PA 15055-1018
724-746-5500 l Fax 724-746-0746
Negotiation/Manual” switch is in “Manual” position, the “Full- Duplex/Half-Duplex” switch determines the type of duplex operation mode. When the “Auto-Negotiation/Manual” switch is in “Auto-Negotiation” position, the “Full-Duplex/ Half-Duplex” switch advertises its setting to the device connected to the UTP port. When set to “Half-Duplex” (factory setting), the FlexPoint will operate in half duplex.
LMC214A-SCP LMC214A-STP LMC214AE-SCP LMC214AE-STP
LMC213A-MMSC LMC213A-MMST LMC213A-SMSC LMC213A-SMST LMC213AE-MMSC LMC213AE-MMST LMC213AE-SMSC LMC213AE-SMST
| | Fiber/ | Distance | Distance |
Model | Connector | (HD) | (FD) |
LMC213A-MMSC | | MM/SC | 412m/1,350ft. | 2km/1.2mi. |
LMC213A-MMST | | MM/ST | 412m/1,350ft. | 2km/1.2mi. |
LMC213A-SMSC | | SM/SC | 412m/1,350ft. | 25km /15mi. |
LMC213A-SMST | | SM/ST | 412m/1,350ft. | 25km /15mi. |
LMC213AE-MMSC MM/SC 412m/1,350ft. | 2km/1.2mi. |
LMC213AE-MMST | MM/ST | 412m/1,350ft. | 2km/1.2mi. |
LMC213AE-SMSC SM/SC 412m/1,350ft. | 25km /15mi. |
LMC213AE-SMST | SM/ST | 412m/1,350ft. | 25km /15mi. |
The FlexPoint 100Fx/Tx can be individually wall-mounted using a wall-mounting kit, rack-mounted using a 5-position space-saver shelf, or inserted in a 14-position power- redundant FlexPoint Powered Chassis. When wall- mounting or shelf-mounting, attach the power adapter unit.
Attach the unit’s RJ45 UTP via a category 5 cable to a 100Base-Tx Fast Ethernet device.
Attach the units’s fiber via cable to a 100Base-Fx Fast Ethernet device. The FlexPoint transmit (Tx) must attach
When set to “Full-Duplex” the FlexPoint will operate in full- duplex or half-duplex depending on the features supported by the other device.
Half-duplex must be used when connecting to a hub. Full-duplex can be used when connecting switches or between a switch and a full-duplex workstation.
LED Indicators:
LED | Color | Description |
Power On | Yellow | Power applied |
FlexPoint™ 100Fx/Tx
CUSTOMER Order toll-freein the U.S.: Call 877-877-BBOXSUPPORT (outside U.S. call 724-746-5500)
INFORMATION FREE technical support 24 hours a day, 7 days a week; Call 724-746-5500or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com
E-mail:info@blackbox.com
LMC214A-SCP | SM/SC | 412m/1,350ft. | 58km /35mi. |
LMC214A-STP | SM/ST | 412m/1,350ft. | 58km /35mi. |
LMC214AE-SCP | SM/SC | 412m/1,350ft. | 58km /35mi. |
LMC214AE-STP | SM/ST | 412m/1,350ft. | 58km /35mi. |
Installation and Configuration
Power Adapter Notice:
1.When used in a stand-alone configuration, this product is intended to be used only with a Listed Direct Plug-In Power Unit marked “Class 2” and rated at 9Vdc, 1 Amp.
2.This product should always be used only with its enclosed Power Unit.
to the receive side on the other device; the receive (Rx) must attach to the transmit.
Switch Settings:
“RJ45 Cross-Over” Switch: When connecting the UTP to ahuborswitch,setto“Straight-Through”(factorysetting). When connecting to a workstation, set it to “Cross-Over.”
“Auto-Negotiation/Manual” Switch: When in “Manual” (factory setting), the FlexPoint operation is selected by the “Full-Duplex/Half-Duplex” switch. When in “Auto- Negotiation”, the FlexPoint automatically selects full or half duplex operation depending on the “Full-Duplex/Half- Duplex” switch position and the features of the device connected to its UTP cable.
Auto-Neg | Green | UTP switch is set to “Auto-Negotiation” |
| | position. |
Full-Duplex | Green | Full-Duplex selected. |
Half-Duplex | Green | Half-Duplex selected. |
Fiber Lk/Rx | Green | Solid: Link |
| | Flashing: Data received. |
Fiber Error | Red | Data errors detected on fiber. |
UTP Lk/Rx | Green | Solid: Link,Flashing: Data received. |
UTP Error | Red | Data errors detected on UTP. |
