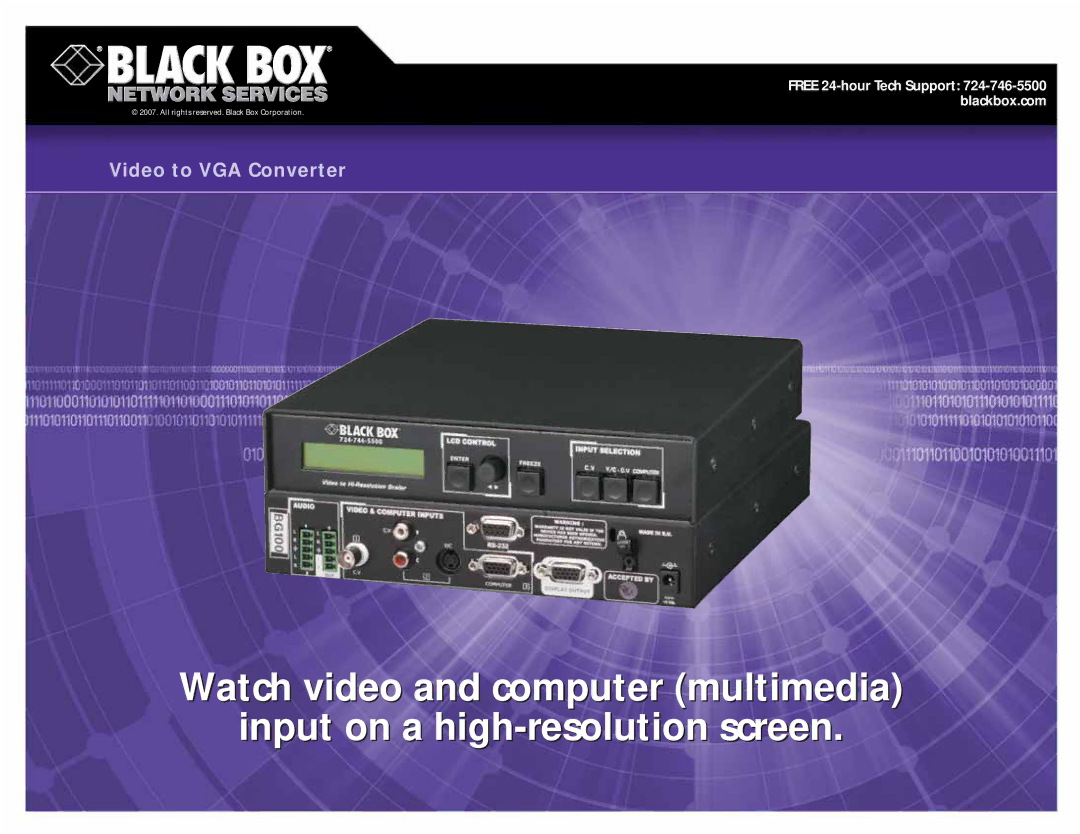

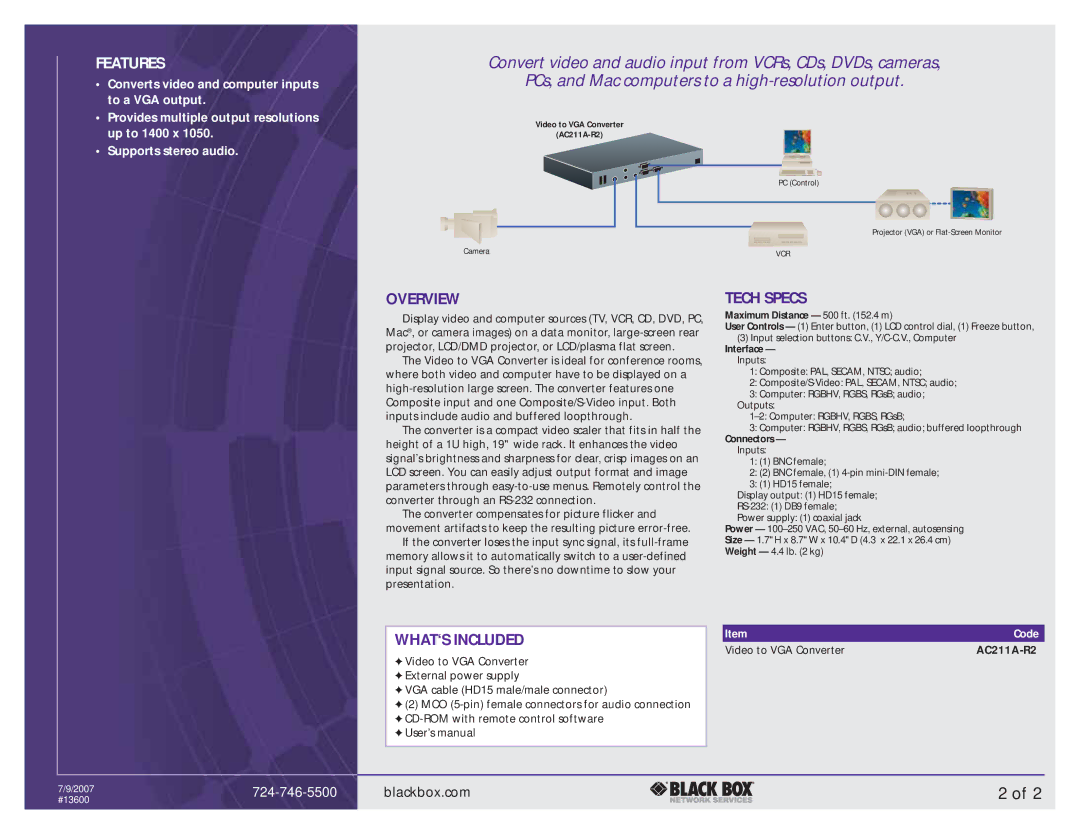

FEATURES

Converts video and computer inputs to a VGA output.

Provides multiple output resolutions up to 1400 x 1050.

Supports stereo audio.

Convert video and audio input from VCRs, CDs, DVDs, cameras,

PCs, and Mac computers to a high-resolution output.

Video to VGA Converter

(AC211A-R2)

PC (Control)

Projector (VGA) or Flat-Screen Monitor

Camera

VCR



OVERVIEW

Display video and computer sources (TV, VCR, CD, DVD, PC, Mac®, or camera images) on a data monitor, large-screen rear projector, LCD/DMD projector, or LCD/plasma flat screen.

The Video to VGA Converter is ideal for conference rooms, where both video and computer have to be displayed on a high-resolution large screen. The converter features one Composite input and one Composite/S-Video input. Both inputs include audio and buffered loopthrough.

The converter is a compact video scaler that fits in half the height of a 1U high, 19" wide rack. It enhances the video signal’s brightness and sharpness for clear, crisp images on an LCD screen. You can easily adjust output format and image parameters through easy-to-use menus. Remotely control the converter through an RS-232 connection.

The converter compensates for picture flicker and movement artifacts to keep the resulting picture error-free.

If the converter loses the input sync signal, its full-frame memory allows it to automatically switch to a user-defined input signal source. So there’s no downtime to slow your presentation.

WHAT‘S INCLUDED

Video to VGA Converter

External power supply

VGA cable (HD15 male/male connector)

(2) MCO (5-pin) female connectors for audio connection

CD-ROM with remote control software

User’s manual

TECH SPECS

Maximum Distance — 500 ft. (152.4 m)

User Controls — (1) Enter button, (1) LCD control dial, (1) Freeze button,

(3)Input selection buttons: C.V., Y/C-C.V., Computer

Interface — Inputs:

1:Composite: PAL, SECAM, NTSC; audio;

2:Composite/S-Video: PAL, SECAM, NTSC; audio;

3:Computer: RGBHV, RGBS, RGsB; audio; Outputs:

1–2: Computer: RGBHV, RGBS, RGsB;

3:Computer: RGBHV, RGBS, RGsB; audio; buffered loopthrough

Connectors —

Inputs:

1:(1) BNC female;

2:(2) BNC female, (1) 4-pin mini-DIN female;

3:(1) HD15 female;

Display output: (1) HD15 female;

RS-232: (1) DB9 female;

Power supply: (1) coaxial jack

Power — 100–250 VAC, 50–60 Hz, external, autosensing

Size — 1.7"H x 8.7"W x 10.4"D (4.3 x 22.1 x 26.4 cm)

Weight — 4.4 lb. (2 kg)

Item

Code

Video to VGA Converter

AC211A-R2

7/9/2007

724-746-5500

blackbox.com

#13600





2 of 2
