Blodgett manual MT1820E STANDARD & CE CONTROLS Detail A, Standard & Ce Controls, March

MARCH 12, 2001 3 MT1820

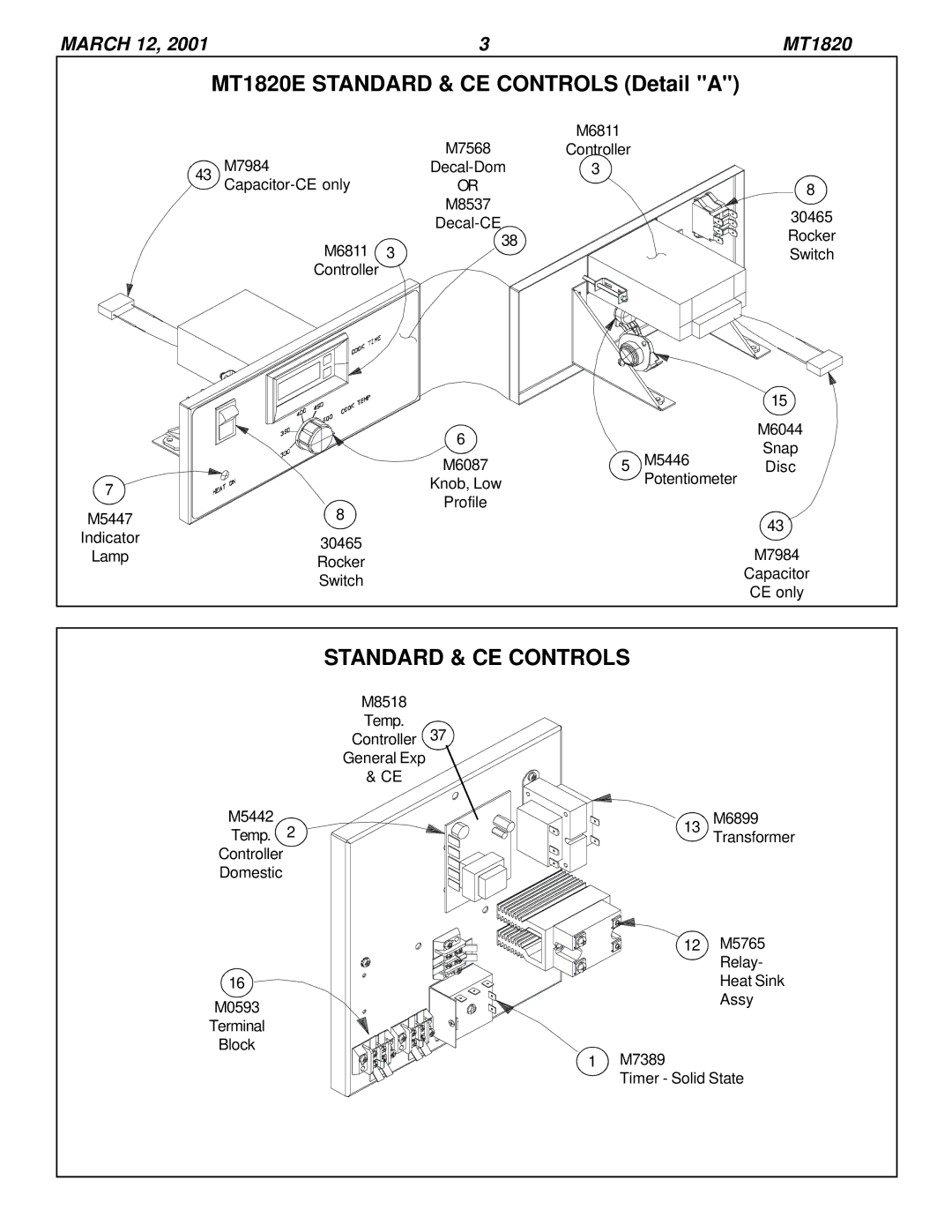

MT1820E STANDARD & CE CONTROLS (Detail "A")

7

M5447

Indicator

Lamp

		M7568	M6811
	M7984		Controller
43		Decal-Dom	3
	Capacitor-CE only	OR	8
		M8537	30465
		Decal-CE
			Rocker
	M6811	38
			Switch
		3
	Controller

			15
6			M6044
			Snap
M6087	5	M5446
			Disc

	Knob, Low	Potentiometer
8	Profile
		43
30465
		M7984
Rocker
		Capacitor
Switch
		CE only

STANDARD & CE CONTROLS

M8518

Temp.

Controller 37

General Exp

& CE

M5442

Temp. 2

Controller

Domestic

16

M0593

Terminal

Block

13 M6899Transformer

12 M5765

Relay-

Heat Sink

Assy

1M7389

Timer - Solid State
