Marine Electrical Products

m-Series Dual Circuit PlusBattery Switch

PN 6011

Switch Set to "ON"

Switch Set to



"COMBINE BATTERIES"

Features

Isolates Start and House circuits, and combines both battery banks for emergency starting

Tin-plated copper studs:

3/8"-16 (M10) provide maximum conductivity and corrosion resistance

One-piece to reduce risk of overheating

7/8" (22.22mm) length to accept multiple cable terminals

Case design:

Allows surface mounting, front or rear panel mounting

Accepts up to 4/0 AWG (120 mm²) battery cables

Removable knob for security and service lockout

Removable isolator covers protect rear contacts

Caution

Specifications

Cranking Rating: 10 sec.

1,000 Amperes DC

Cranking Rating: 1 min.

650 Amperes DC

Intermittent Rating: 5 min. (UL 1107)

450 Amperes DC

Continuous Rating:

300 Amperes DC

Terminal Stud, Tin-Plated Copper

3/8"-16 (M10)

Torque

120 in-lb (13.56 N·m)

Cable Size to Meet Ratings*

4/0 AWG (120 mm²)

Maximum Voltage Rating

32 Volts DC

Ignition Protected



marked



Agency Specifications

Meets all American Boat and Yacht Council (ABYC) requirements for battery switches

UL Listed - UL 1107 for electric power switches

Meets UL 1500 and SAE J1171 external ignition protection requirements

Guarantee

Any Blue Sea Systems product with which a customer is not satisfied may be returned for a refund or replacement at any time.

For information about Blue Sea Systems Engine Starting Standard, go to www.bluesea.com.

* Reducing cable sizes will reduce current ratings

Blue Sea Systems Inc.

Phone (360)

738-8230

425 Sequoia Drive

Fax (360)

734-4195

Bellingham, WA 98226 USA

E-mail conductor@bluesea.com



www.bluesea.com

Disconnect positive battery terminal before installing.

Débranchez la cosse positive de la batterie avant de l’installer.

Desconecte el terminal positivo de la batería antes de la instalación.

Prima di eseguire l’installazione, disconnettere il terminale positivo della batteria.

Consult marine electrical professional for proper wiring application.

Consultez un professionnel de l’électricité marine pour installer le câblage correctement.

Consulte a un electricista marino profesional para la aplicación de alambrado apropiada.

Per assicurarsi che i cavi siano correttamente collegati, rivolgersi ad un elettricista specializzato in motori marini.

Installation

Refer to the latest edition of NFPA 302 and/or ABYC E11 Standard for installation information.

Attach one 4/0 AWG cable per terminal to meet ratings.

Raccordez un câble 120mm² par cosse pour respecter les spécifications.

Sujete un cable 120mm² por terminal de acuerdo a la clasificación.

Attaccare un cavo 120mm² per conformarsi alle tarature.

Battery cable terminals must be attached under nut and lock washer. Torque 120 in-lb (13.56 N·m).

Les cosses des câbles de batterie doivent être fixées sous la rondelle de sûreté et l’écrou – couple de serrage de 13,56 N·m (120 lb-po).

Los terminales de los cables de batería deberán ser sujetados debajo de la tuerca y la arandela. Apriételos a una torsión de 13,56 N·m (120 lbs-pul).

I terminali del cavo della batteria vanno attaccati con un dado e una rondella elastica: coppia di 13,56 N·m (120 lbs-in).

Operation

Turn all appliances off before turning the battery switch to OFF.

Éteignez tous les appareils électriques avant de mettre l’interrupteur de batterie sur ARRÊT.

Apague todos los artefactos antes de girar el interruptor de batería a APAGADO (OFF).

Spegnere tutte le apparecchiature prima di muovere l’interruttore della batteria su OFF (spento).

Do not switch to OFF while engine is running.

Ne le mettez pas sur ARRÊT alors que le moteur tourne.

No coloque el interruptor en APAGADO (OFF) mientras que el motor esté funcionando.

Non muovere l’interruttore su OFF (spento) quando il motore è in moto.

Page 1

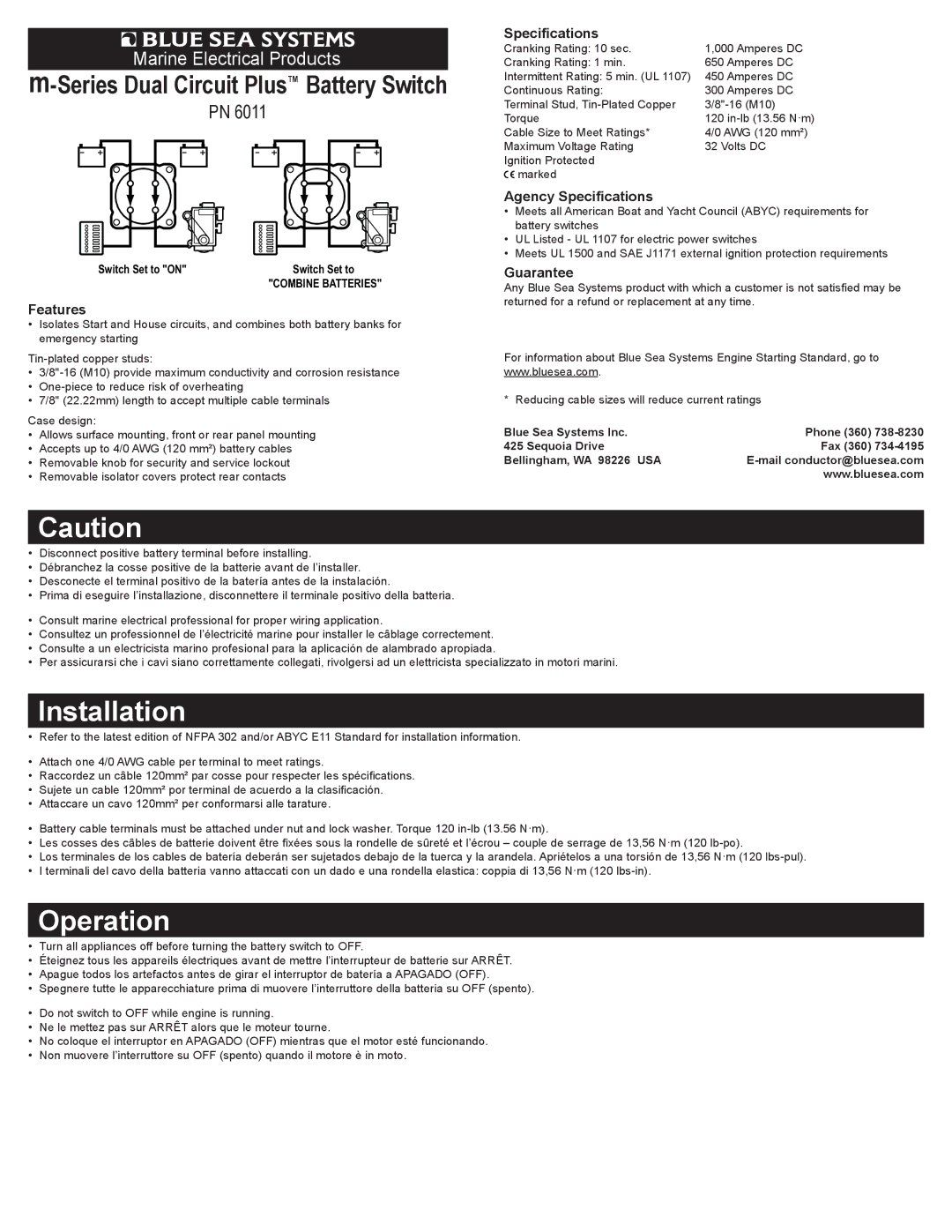

Image 1
