SERIAL NO.
ALA-3 LOUDSPEAKER
------
MADE IN USA
000000
TM
WWE 10/4/00
ZALA3
ALA-3 LINE ARRAY
LOUDSPEAKER
PRODUCT
NUMBER:
101-1300 A
INTERNATIONAL, LLC.
THE SOLE PROPERTY
REPRODUCTION OF ALL
OR ANY PART OF THIS
DOCUMENT WITHOUT
WRITTEN CONSENT
IN THIS DOCUMENT IS
FROM APOGEE
INFORMATION CONTAINED
OF APOGEE SOUND
SOUND INTERNATIONAL,
LLC. IS PROHIBITED.
1/4
D
SIZE DRAWING N0.
DRAWN
REVISED
NOT TO SCALE
REVISION
TM
SCALE
W/GRILL REMOVED

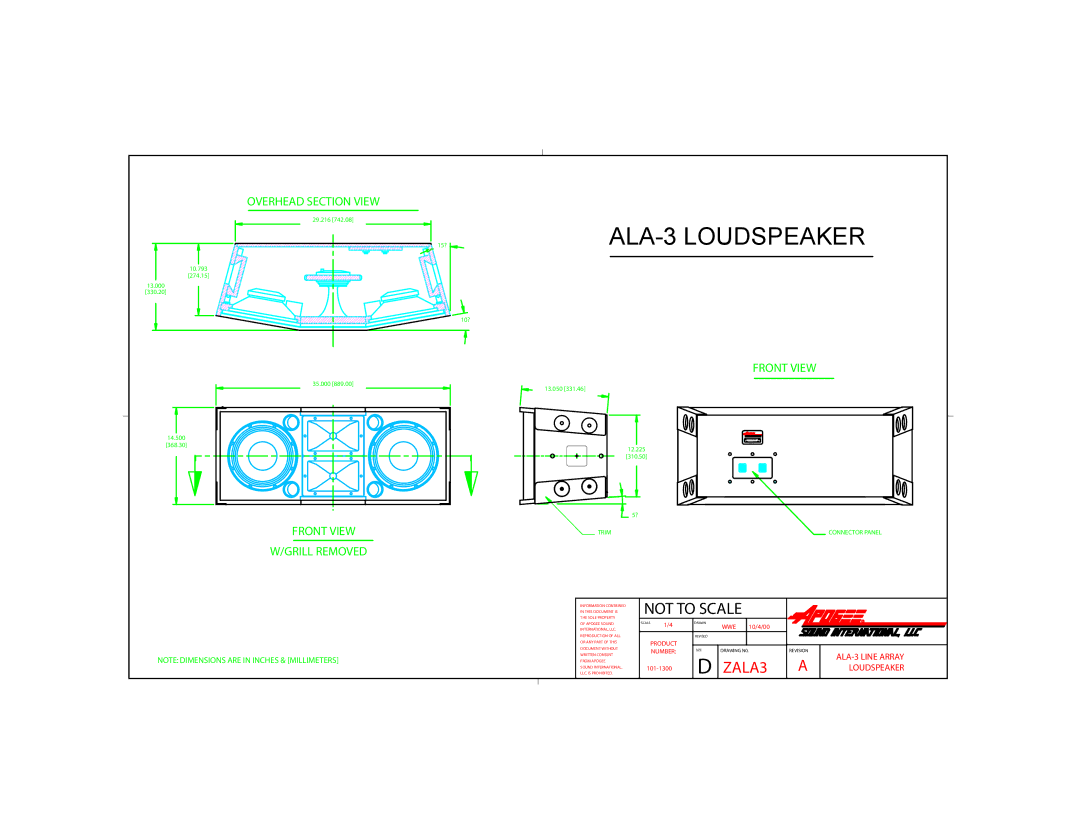

OVERHEAD SECTION VIEW
15?
FRONT VIEW
NOTE: DIMENSIONS ARE IN INCHES & [MILLIMETERS]29.216 [742.08]
35.000 [889.00]
14.500
[368.30]
10.793
[274.15]
[330.20]
13.000
10?
13.050 [331.46]
12.225
[310.50]
CONNECTOR PANEL
TRIM
FRONT VIEW
5?
ALA-3 LOUDSPEAKER
