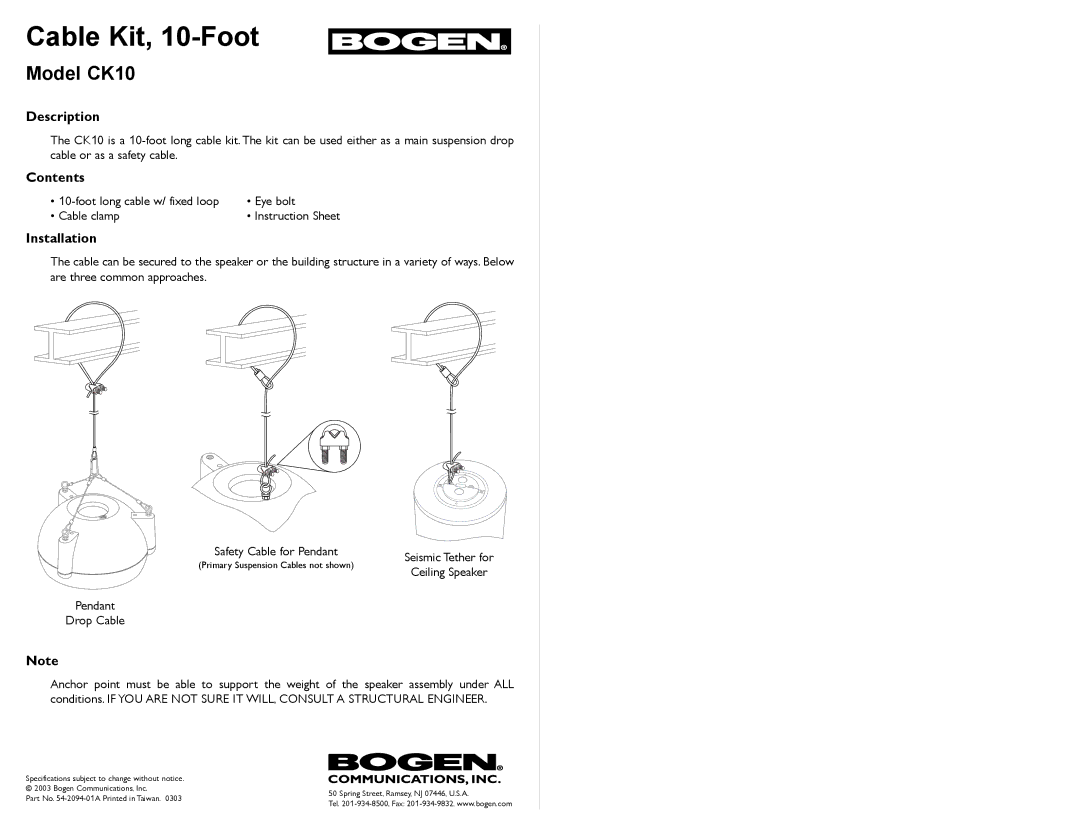

Cable Kit, 10-Foot

Model CK10

Description

The CK10 is a 10-foot long cable kit. The kit can be used either as a main suspension drop cable or as a safety cable.

Contents

• 10-foot long cable w/ fixed loop	• Eye bolt
• Cable clamp	• Instruction Sheet

Installation

The cable can be secured to the speaker or the building structure in a variety of ways. Below are three common approaches.

Safety Cable for Pendant	Seismic Tether for
(Primary Suspension Cables not shown)
	Ceiling Speaker

Pendant

Drop Cable

Note

Anchor point must be able to support the weight of the speaker assembly under ALL conditions. IF YOU ARE NOT SURE IT WILL, CONSULT A STRUCTURAL ENGINEER.

Specifications subject to change without notice.
