VANDAL-RESISTANT SPEAKER

MODEL VRS2

DESCRIPTION

The Bogen VRS2 is a wall-mountable, vandal-resistant speaker designed for use with Bogen Multicom and Multi-Graphic commu- nication systems. It consists of an 8-ohm loudspeaker and 25V transformer (tapped at 1/2 watt) mounted to a heavy-gauge stain- less steel plate.The call-in switch can be wired to provide either momentary or latching operation.The plate may be mounted to a 2-1/2" deep Gang Box (4-1/2"W x 6-13/16"H), such as Steel City (H2BD-3/4 &1), with one-way security screws.

INSTALLATION

Connect the speaker to the sound system using shielded conductors. Refer to the appropriate system installation instructions to terminate the cable at the system control center.

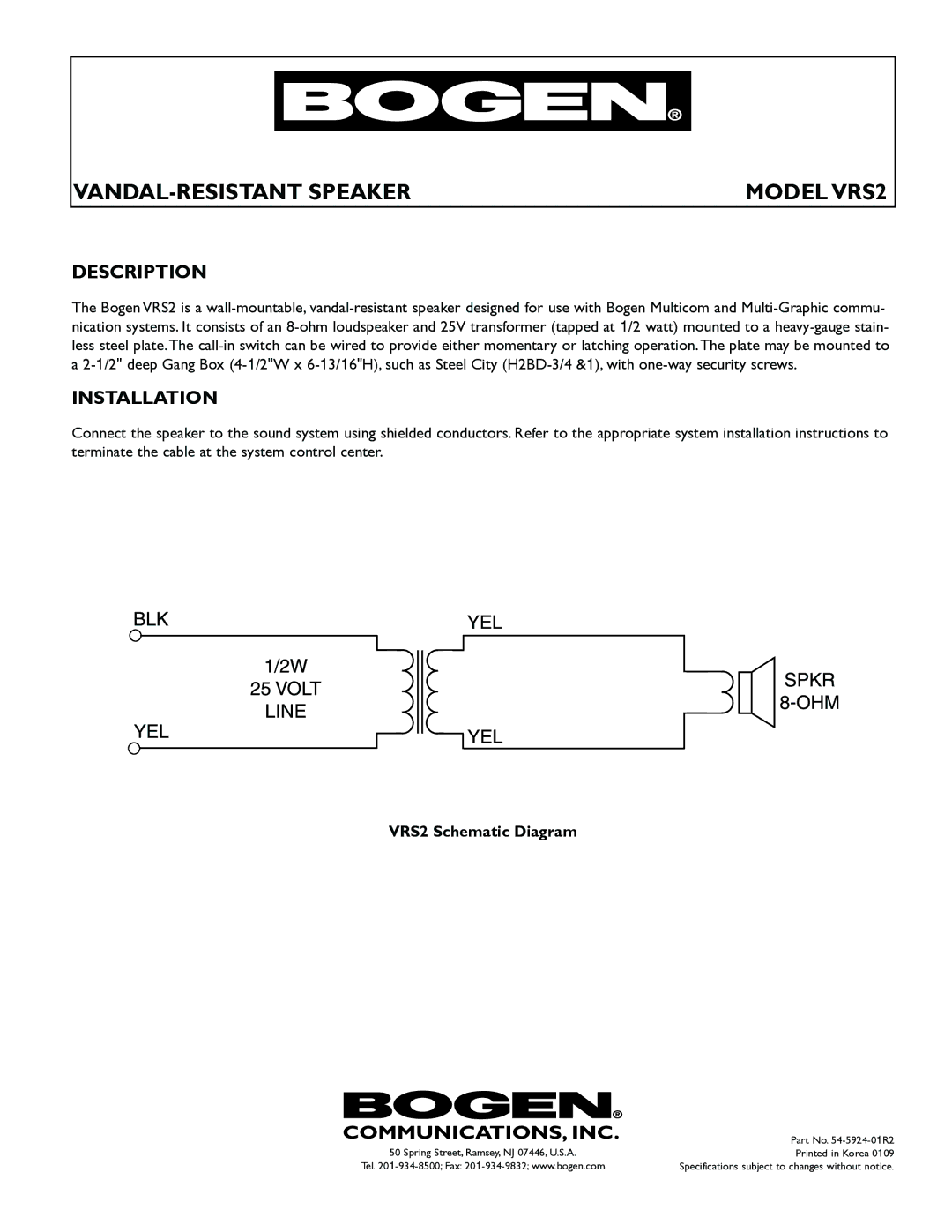

VRS2 Schematic Diagram

50 Spring Street, Ramsey, NJ 07446, U.S.A.

Part No. 54-5924-01R2

Printed in Korea 0109

Tel. 201-934-8500; Fax: 201-934-9832; www.bogen.com

Specifications subject to changes without notice.

Page 1
