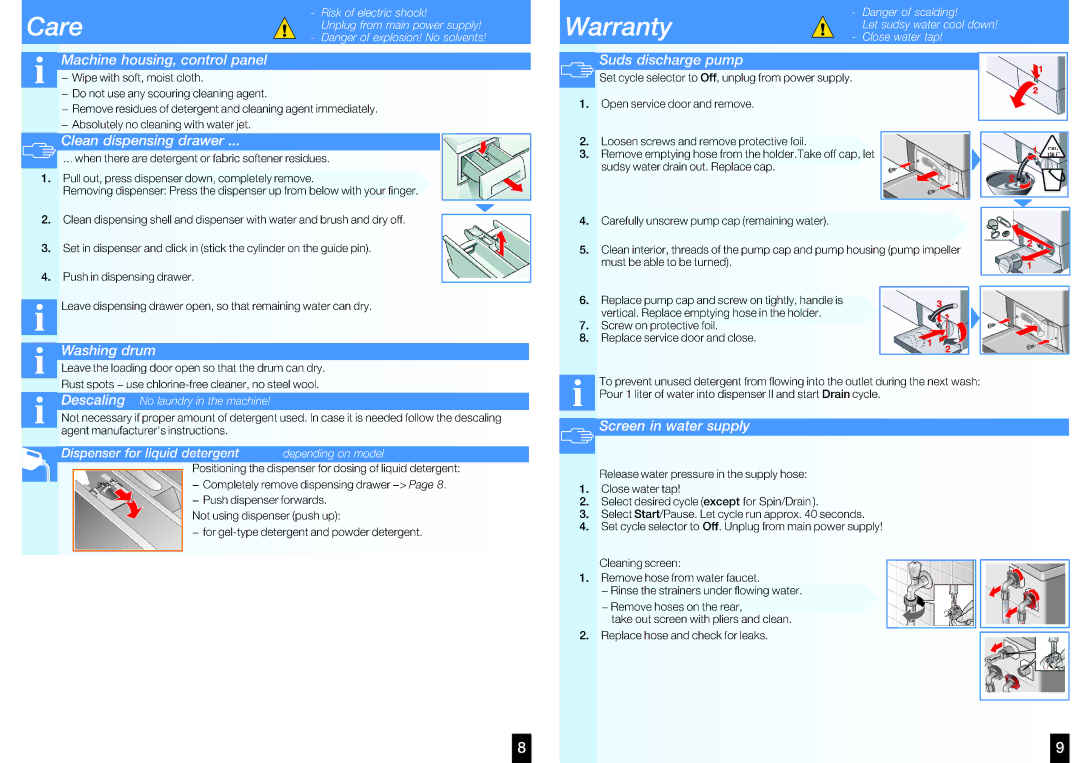

Bosch Appliances WAS20160UC manual Care

Care

+ Risk of electric shock!

Warranty

+

Danger

of scalding!

Unplug from main power supply!

Let sudsy water cool down!

+ Danger of explosion! No solvents!

+

Close

water

tap!

Machine

housing,

control

panel

Suds

discharge

pump

- Wipe with soft, moist cloth.

Set cycle

selector Offto,

unplug from power supply.

- Do not use any scouring cleaning agent.

1. Open service door and remove.

- Remove residues of detergent and cleaning agent immediately.

- Absolutely no cleaning with water jet.

Clean

dispensing

drawer ...

2.

Loosen screws and remove protective foil.

max.

3.

Remove emptying hose from the holder.Take off cap, let

... when there are detergent or fabric softener residues.

158

F°

sudsy water drain out. Replace cap.

1. Pull out, press dispenser down, completely remove.

Removing dispenser: Press the dispenser up from below with your finger.

2.

Clean

dispensing

shell

and dispenser with water

and brush and dry off.

4.

Carefully unscrew pump cap (remaining water).

3.

Set in

dispenser

and

click in (stick the cylinder

on the guide pin).

5.

Clean interior, threads of the pump cap and pump housing (pump impeller

must be able to be turned).

4. Push in dispensing drawer.

Leave dispensing drawer open, so that remaining water can dry.

6. Replace pump cap and screw on tightly, handle is

vertical. Replace emptying hose in the holder.

7. Screw on protective foil.

8. Replace service door and close.

Washing

drum

Leave the loading door open so that the drum can dry.

Rust spots - use chlorineKfree cleaner, no steel wool.

To prevent unused detergent from flowing into the outlet during the next wash:

Pour 1 liter of

water

into dispenser II andDrainstartcycle.

Descaling￿No laundry in the machine!

Not necessary if proper amount of detergent used. In case it is needed follow the descaling

Screen

in

water

supply

agent manufacturer's instructions.

Dispenser

for

liquid

detergent

depending

on model

Positioning the dispenser for dosing of liquid detergent:

Release water pressure in the supply hose:

- Completely remove dispensing drawerPage-> 8.

1.

Close

water tap!

- Push dispenser

forwards.

2.

Select desired cyclexcept(

for Spin/Drain ).

Not using

dispenser (push

up):

3.

Select Start/Pause. Let cycle run approx. 40 seconds.

- for gelKtype detergent and powder detergent.

4. Set cycle selector toOff. Unplug from main power supply!

Cleaning

screen:

1. Remove hose from water faucet.

- Rinse the strainers under flowing water.

- Remove hoses on the rear,

take out screen with pliers and clean. 2. Replace hose and check for leaks.

8 9

What	to	do	if	...
F Water is running out.				- Fasten drain hose correctly / replace.
			- Tighten the screw conniption of the supply hose.

FNo water supply running in-. Start/Pause not selected?

Detergent not rinsed. - Water tap not opened?

-Screen possibly clogged? Clean screenPage-> 9.

-Supply hose kinked or pinched?

	The loading door will not				- Safety function active. Cycle interrupted?Page-> 4.
F open.					- No final spin(spin stop = without final spin) selected?
					-> Page 4.
					- Opening only possible using emergency unlock?Page-> 6
	Cycle	does not		start.	Start/Pause-	selected?
F
					- Loading door	closed?
F	Sudsy water is not pumped- Clean pump -Page>						9.
	out.				- Clean drain pipe and/or drain hose.
F	drum.Water cannot be seen in				- No malfunction - Water is below visible area.
F	Spin results not satisfactory. - Wash small and large items together.
					- Reduced ironing selected?-> Page 5.
					- Selected speed too slow?Page-> 3.
F	Spinning several			times.	- No malfunction - Imbalance control system equalizes
					imbalance.
			2		- Remove dispenser. Clean dispenser drawer and dispenser
F	Dispenser
			not completely
	rinsed	out.			-> Page 8.
F	Odor	in washing		machine.	- PerformRegular/Cotton Hot cycle			without adding laundry.
					Also use detergent.
	Foam comes out of the				- Too much detergent added?
F
	dispenser		drawer.		Mix 1 tablespoon fabric softener with ½ liter water and put
					into disperser II of the dispenser drawer.
					- Too much soap or non - HE soap used?
					Mix 1 tablespoon of fabric conditioner with 1 pt ( ½ liter)
					water and pour into detergent dispenser II.
					- Reduce amount of detergent for next wash cycle.
F	Strong odor, vibrations and - Are machine feet fixed?
	"walking"		during	spinning.	Secure machine feet Installation->			instructions	Page. 5
					- Shipping lock	removed?
					Remove shipping lock Installation->			instructions	Page. 3

F Display lamps not functioning- Power outage?

during operation.- Fuse blown? Flip / replace fuse.

- If the malfunction happens repeatedly, call customer service.

F Cycle runs longer than usual. - No malfunction - Imbalance control system equalizes imbalance by frequent distribution of the wash.

-No malfunction - Foam control system is active - a rinse cycle is turned on.

	Detergent residue on the - Some phosphateKfree detergents contain water insoluble
F laundry.		residues.
		- Select Refresh or brush off the laundry after washing.
F	Start/Pause blinks very fast - Water level too high. Adding laundry not possible. If
	and a signal sounds in Pausenecessary close loading door immediately.
	condition.	- Select Start/Pause to continue the cycle.
F	If a malfunction cannot be repaired by yourself or if a repair is necessary:
	- Set cycle selector Offto and remove the plug from main power supply.
			10
	- Close water	tap and call customer servicePage->13.
