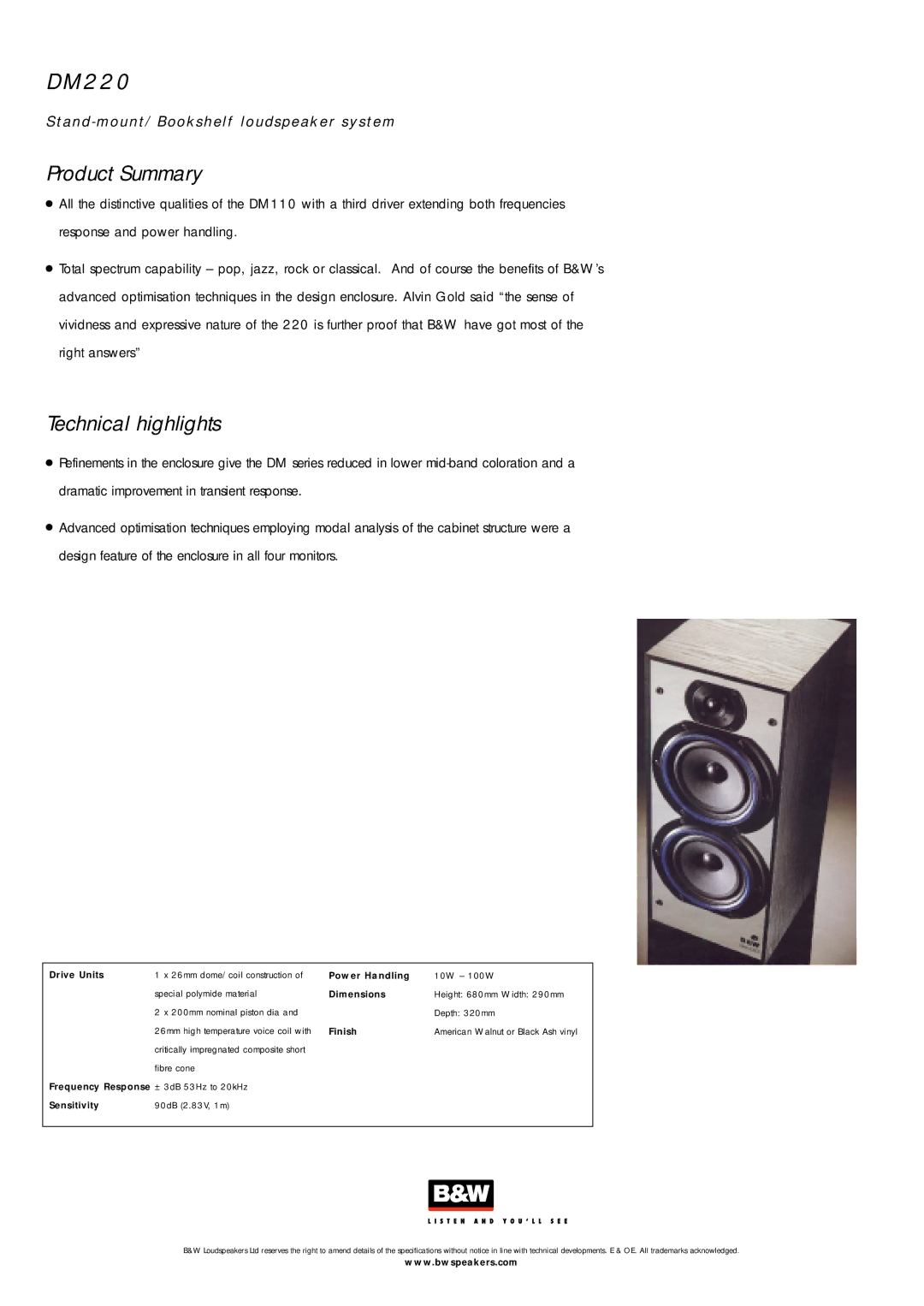

D M 2 2 0

S t a n d - m o u n t / B o o k s h e l f l o u d s p e a k e r s y s t e m

Product Summary

All the distinctive qualities of the DM110 with a third driver extending both frequencies response and power handling.

Total spectrum capability – pop, jazz, rock or classical. And of course the benefits of B&W’s advanced optimisation techniques in the design enclosure. Alvin Gold said “the sense of vividness and expressive nature of the 220 is further proof that B&W have got most of the right answers”

Technical highlights

Refinements in the enclosure give the DM series reduced in lower mid-band coloration and a dramatic improvement in transient response.

Advanced optimisation techniques employing modal analysis of the cabinet structure were a design feature of the enclosure in all four monitors.

Drive Units

1 x 26mm dome/coil construction of

Power Handling

10W – 100W



special polymide material

Dimensions

Height: 680mm Width: 290mm



2 x 200mm nominal piston dia and



Depth: 320mm



26mm high temperature voice coil with

Finish

American Walnut or Black Ash vinyl



critically impregnated composite short







fibre cone





Frequency Response ± 3dB 53Hz to 20kHz





Sensitivity

90dB (2.83V, 1m)













B&W Loudspeakers Ltd reserves the right to amend details of the specifications without notice in line with technical developments. E & OE. All trademarks acknowledged.

www.bwspeakers.com

Page 1
Image 1
Bowers & Wilkins DM220 specifications 2 2, Technical highlights

DM220 specifications

Bowers & Wilkins DM220 is a revered speaker model from one of the most respected names in audio engineering. Known for its professional-quality sound and elegant design, the DM220 has become a popular choice among audiophiles and casual listeners alike.

One of the standout features of the DM220 is its impressive driver configuration. It utilizes a two-way design that comprises a 6.5-inch woofer and a 1-inch dome tweeter. This combination allows the speaker to produce a full range of sound, from deep, resonant bass to crisp, clear highs. The woofer is housed in a well-constructed cabinet that minimizes resonances, ensuring that the audio reproduction remains true to the original recording.

Moreover, the DM220 incorporates Bowers & Wilkins' signature technologies that enhance performance and listening experience. The use of a Nautilus™ tube technology in the tweeter design significantly reduces distortion, providing a more extended and adaptable high-frequency response. This advanced design means that even at high volume levels, the DM220 can deliver detailed and accurate sound without sacrificing quality.

The DM220 is also known for its versatility in various listening environments. Its relatively compact size allows it to fit into different spaces seamlessly, making it suitable for both dedicated audio setups and casual use in home environments. The rear-firing bass port is cleverly engineered, allowing for flexible placement without compromising on the low-frequency performance.

Another highlight of the DM220 is its build quality. The speaker enclosure is made from sturdy MDF, which helps minimize vibrations and unwanted resonance, further enhancing sound fidelity. The aesthetic appeal of the speaker, combined with a range of finishes, ensures that it complements various interior decors.

In terms of connectivity, the DM220 is equipped with standard speaker terminals, which allow for easy integration into existing audio systems. Whether connecting to a vintage receiver or a modern amplifier, users can experience the dynamic sound that Bowers & Wilkins is known for.

In conclusion, the Bowers & Wilkins DM220 speaker offers a blend of robust performance, advanced technology, and elegant design. Its well-balanced sonic characteristics make it an excellent choice for anyone who appreciates high-quality audio reproduction. Whether for music listening, home theater, or studio monitoring, the DM220 stands out as a reliable and impressive option.
