DM602 S2

Sta nd - mount/Bookshelf loudspeaker syst em

Product Summary

The DM602 S2 is a 2-way vented-box system with a woven Kevlar® cone bass/mid

driver which virtually eliminates distortions caused by radial waves travelling back and forth

along the cone. The aluminium dome tweeter produces amazing open sound.

The high quality cabinets are attractively finished in a choice of Black Ash or Cherry vinyl

In common with all other models the grey baffle, moulded in mica-filled polypropylene,

forms a second layer to the wooden baffle adding stiffness and damping.

A review from What Hi-Fi (July 1999) underpinned our belief in the speaker with comments

including, "providing a fantastic level of refinement in a medium sized box and having

enough bass weight and control to satisfy those into rock and dance. Great all-rounders

and an excellent buy”.

Technical highlights

Nautilus™ Tweeter: B&W's Nautilus Tweeter technology ensures that the sound

remains focused and time-sensitive and that the stereo-image is presented with

unparalleled three dimensional accuracy.

Kevlar®: B&W developed and patented the method of using Kevlar® for

loudspeaker cones to reduce unwanted standing waves. DuPont originally

created Kevlar® for use in bulletproof vests.

Description

2-way vented-box system

Power handling

25W - 120W into 8 ohm on unclipped

Drive units

1 x 25mm metal dome high-frequency



programme



1 x 180mm woven Kevlar® cone

Dimensions

Height: 490mm Width: 236mm



bass/midrange



Depth: 306mm

Frequency response

52Hz – 20kHz ± 3dB on reference

Finishes

Cabinet: Cherry or Black Ash Vinyl,



axis



Grilles: Black cloth

Sensitivity

90dB spl (2.83V, 1m)





Nominal impedance

8Ω (min 4.3Ω)













Awarded What HiFi’s prestigious

five stars. July 1999.

Awarded Hi-Fi Choice Best Buy

April 2000.

B&W Loudspeakers Ltd reserves the right to amend details of the specifications without notice in line with technical developments. E & OE. All trademarks acknowledged.

www.bwspeakers.com

Page 1

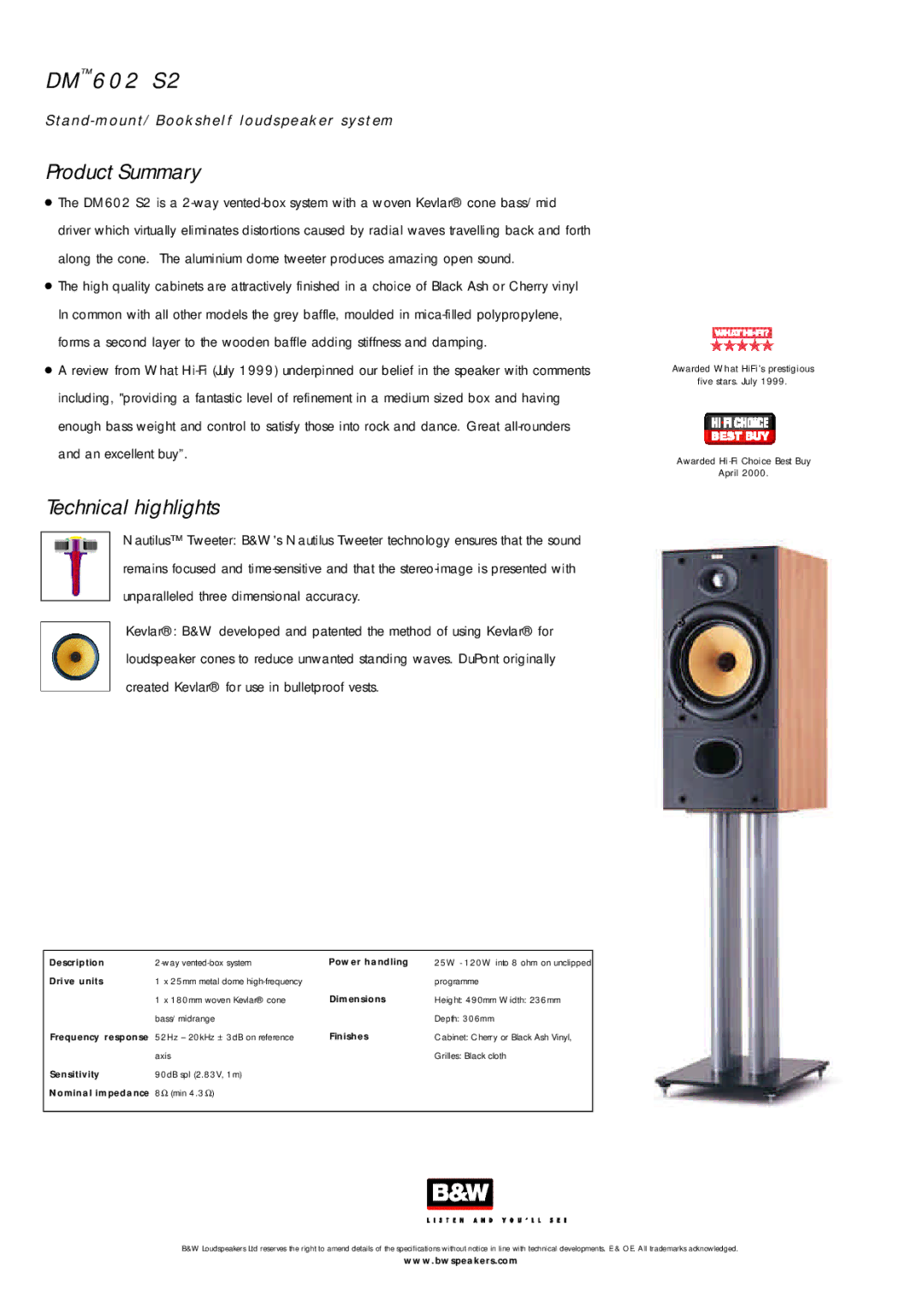

Image 1
Bowers & Wilkins DM602 S2 specifications Sta nd mount/Bookshelf loudspeaker syst em Product Summary, Technical highlights

DM602 S2 specifications

The Bowers & Wilkins DM602 S2 is a highly regarded bookshelf speaker known for its exceptional audio quality and refined design. This speaker model is part of Bowers & Wilkins’ highly esteemed DM series, characterized by a commitment to delivering superior sound reproduction and an engaging listening experience.

A standout feature of the DM602 S2 is its advanced speaker driver technology. It incorporates a 5-inch woven Kevlar cone midrange driver that ensures clarity and precision in the mid-frequency range. This material not only enhances rigidity and minimizes distortion but also provides a smooth response across the audio spectrum. Combined with a 1-inch aluminum dome tweeter, the DM602 S2 excels in producing crisp highs with a remarkable sense of detail. Together, these drivers create a harmonious soundstage that is rich and dynamic.

Another key characteristic of the DM602 S2 is its exceptional build quality. The cabinet is constructed from high-quality MDF, which helps to minimize resonance and unwanted vibrations. The speaker's design also features a sophisticated porting system, known as Flowport technology, that enhances bass response and overall efficiency. This design allows for deeper bass frequencies without the muddiness often associated with lesser speakers, providing a clean and articulate low-end performance.

The DM602 S2 is designed with versatility in mind, making it suitable for various listening environments, whether in a stereo setup or as part of a home theater system. Its compact size allows for easy placement on shelves or stands, while its elegant appearance ensures it complements any décor. Available in various finishes, including black oak and ash gray, the DM602 S2 harmonizes both form and function.

In terms of specifications, the DM602 S2 boasts an impressive frequency response range, typically spanning from 50 Hz to 20 kHz, while maintaining an ideal sensitivity rating that allows for compatibility with a variety of amplifiers. This ensures users can enjoy vibrant sound performance across genres, from classical to contemporary.

In summary, the Bowers & Wilkins DM602 S2 bookshelf speaker is a staple for audiophiles and music enthusiasts alike. With its innovative driver technology, solid construction, and elegant design, it delivers a listening experience that is both engaging and true to the original recording. The DM602 S2 stands as a testament to Bowers & Wilkins' dedication to audio excellence, making it a worthy addition to any sound system.
